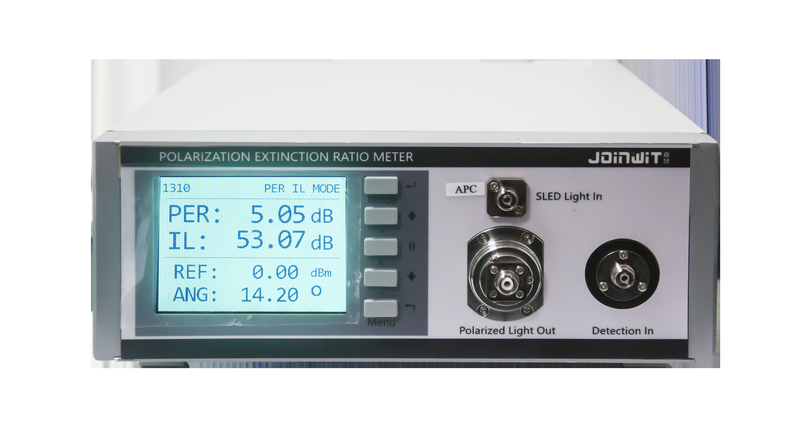

JW8607 Automatic Polarization Extinction Ratio Tester (JW8607 C type)
The JW8607 automatic polarization extinction ratio tester is a new-generation precision optical detection device developed by Shanghai Jiahui. It is specially designed for measuring the polarization extinction ratio, light source degree of polarization, and polarization axis angle of polarization-maintaining devices (such as fibers, optical devices, and connectors). Its host computer software is powerful and easy to operate, and the newly added automatic polarization function further improves the speed and convenience of testing, with an overall simple and efficient design.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 400~700 nm |
| Maximum Input Power [Power Customizable] | +10/+25 dBm (power customizable) |
| Input Power Range | -30~+10 dBm |
| Maximum PER | 30 dB |
| PER Dynamic Range [400~500nm；500~700nm] | 400~500 nm:20 dB 500~700 nm:30 dB |
| PER Resolution [＜10dB] | <10 dB:0.001 dB |
| PER Resolution [≥10dB] | ≥10 dB:0.01 dB |
| PER Accuracy [PER≤2dB] | PER≤2 dB:≤±0.1 dB |
| PER Accuracy [PER＜30dB] | PER<30 dB:< ±0.3 dB |
| PER accuracy [PER≥30dB] | PER≥30 dB:<±1.0 dB |
| Polarization Angle Resolution | 0.11 ° |
| Polarization Angle Accuracy | <±0.45 ° |
| Measurement Speed | 0.25 s |

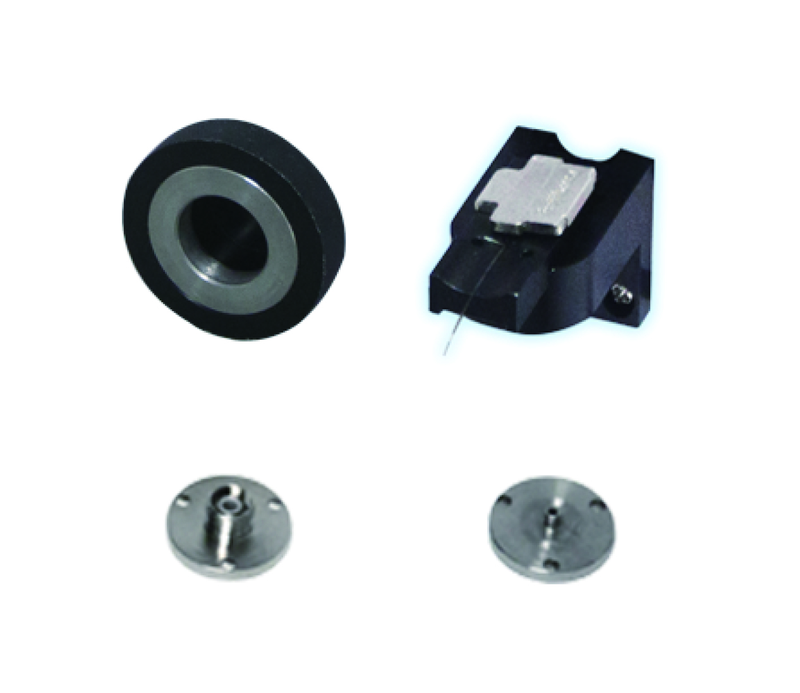

| Connector type [Also supports SC/LC interfaces, optional bare fiber adapter] | FC/PC (also supports SC/LC interfaces, optional bare fiber adapter) |
| Communication Interface | RS232 |
