Prism

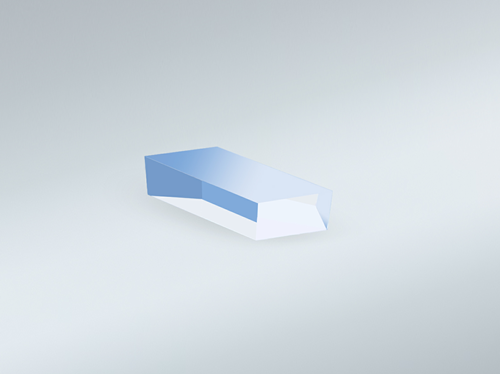

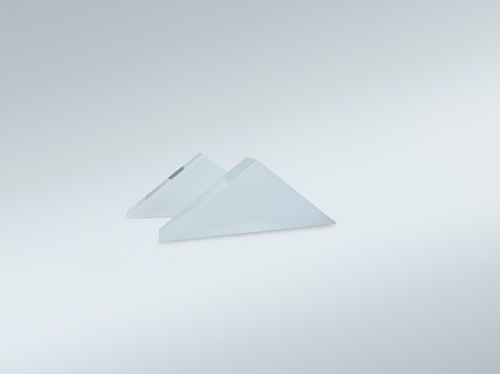

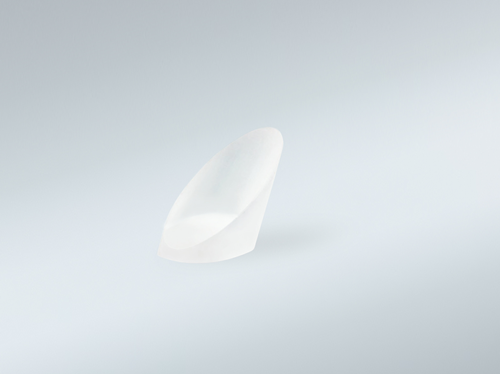

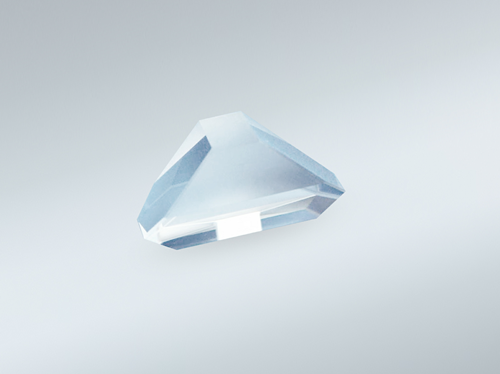

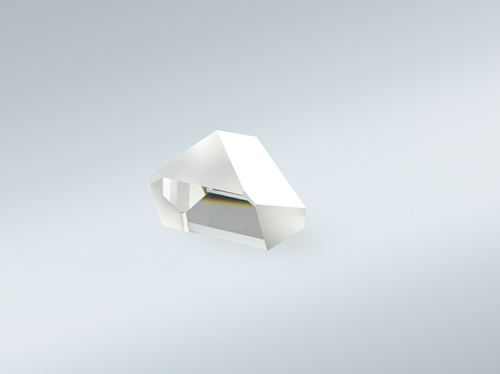

A prism is an optical element that can be processed into forms such as right-angle, cube, pentagonal, Dove, roof, and rhomboid as required.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Colorless optical glass, laser crystals, fused silica, radiation-resistant glass, UV and IR materials, such as: SiO₂, CaF₂, BaF₂, ZnSe, ZnS, Ge, Si, Al₂O₃, etc. |
| Outer dimension range | 3~500 mm |
| Outline Tolerance | ±0.005 ~±0.2 mm |
| Surface Quality | 10/5~80/50 |
| Surface accuracy [Aperture = Φ100 mm] | λ/20~λ/Φ100 mm |
| Angle deviation | 3 ″~5 ′ |
| Coating [Customizable] | Customized upon request (see Boxin coating process types and film layer introduction for details) |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-

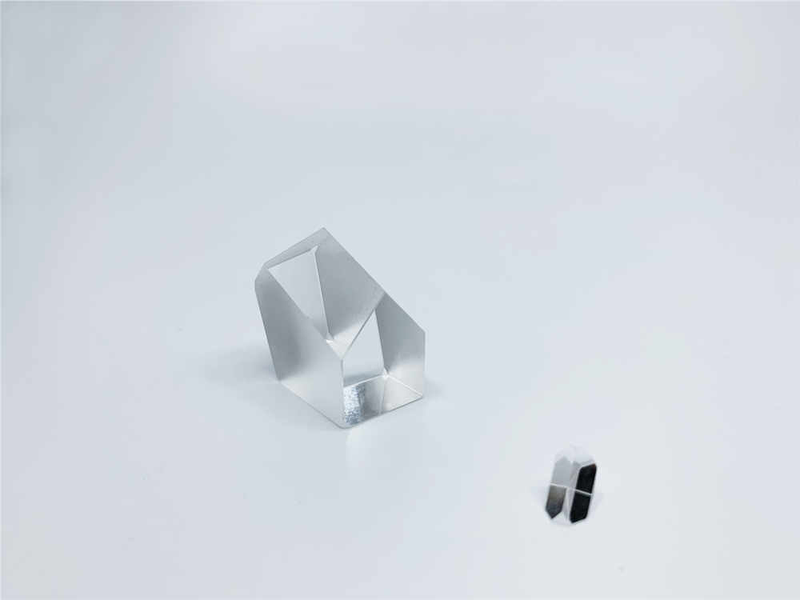

Pentaprisms
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A pentaprism deflects a beam through a fixed 90° angle.
-
Roof Prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A roof prism is compact and allows the objective and eyepiece to lie on the same axis, making it common in very compact binoculars.
-
Special prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A prism is a polyhedron made from transparent material such as glass or crystal and is widely used in optical instruments.
-
Right-angle mirror
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
One basic function of a right-angle prism is efficient total internal reflection using the critical-angle effect.
-

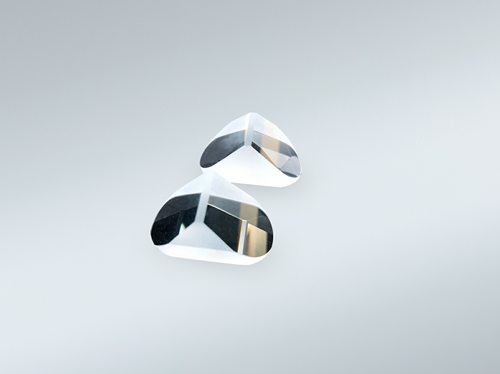

Corner Cube Prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A corner-cube prism is a glass retroreflector that returns an incident beam using three 90° angles.
