Special prism

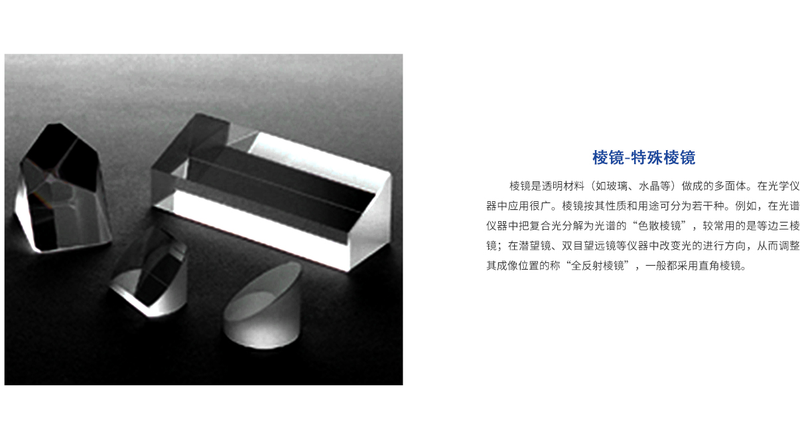

A prism is a polyhedron made from transparent material such as glass or crystal and is widely used in optical instruments.
Save to Favorites
Overview

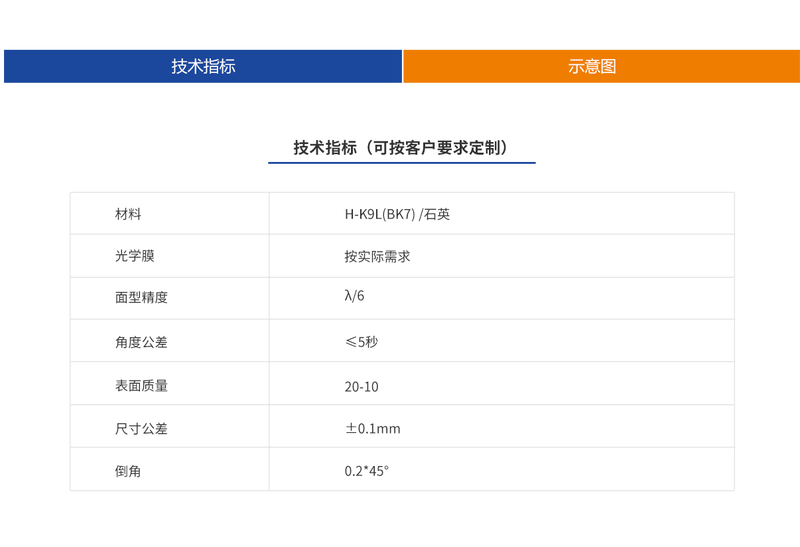

Specifications
| Parameter | Value |
|---|---|
| Material | H-K9L(BK7) / Quartz |
| Optical Coating | As Required |
| Surface Figure Accuracy | λ/6 |
| Angular Tolerance | ≤5 arcsec |
| Surface Quality | 20-10 |
| Dimensional Tolerance | ±0.1mm |
| Chamfer | 0.2*45° |
Datasheet
