(1 or 2+1)×1 High-power signal and pump combiner (polarization-maintaining or non-polarization-maintaining)
Beam Splitters

(1 or 2+1)×1 High-power signal and pump combiner (polarization-maintaining or non-polarization-maintaining)

Supplier
Lightel
Category
Beam Splitters
Origin
China

Laitel multimode pump and signal combiners can be used in high-power fiber lasers and fiber amplifiers. They can be used to combine several pump lasers and couple that power with the seed signal. Our combiners use air-clad technology with a high numerical aperture for stable pump delivery, without interaction between the pump light and the protective polymer coating.

Specification Snapshot
Port Configuration
(1+1)×1 or (2+1)×1
Operating Temperature
0~75 ℃
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

Laitel multimode pump and signal combiners can be used in high-power fiber lasers and fiber amplifiers. They can be used to combine several pump lasers and couple that power with the seed signal. Our combiners use air-clad technology with a high numerical aperture for stable pump delivery, without interaction between the pump light and the protective polymer coating.

Specifications

ParameterValue
Port Configuration(1+1)×1 or (2+1)×1
Pump light wavelength800~1000 nm
Signal light wavelength1030~1080 nm or 1450~1600 nm
Input signal fiber [Input signal fiber: X/125]X/125
Input signal fiber [Input signal fiber: X/250]X/250
Input signal fiber [Input signal fiber: 20/400]20/400
Pump light fiber [Input signal fiber: X/125]105/125 0.15NA/0.22NA
Pump light fiber [Input signal fiber: X/250, 20/400]105/125 0.15NA/0.22NA or 200/220 0.22NA
Output fiber [Input signal fiber: X/125]Y/125 or Y/250
Output fiber [Input signal fiber: X/250]Y/250
Output fiber [Input signal fiber: 20/400]20/400
Pump conversion efficiency [Input signal fiber: X/125]>90 %
Pump conversion efficiency [Input signal fiber: X/250]>93 %
Pump conversion efficiency [Input signal fiber: 20/400]>95 %
Signal insertion loss [Input signal fiber: X/125]<0.5 dB
Signal insertion loss [Input signal fiber: X/250]<0.45 dB
Signal insertion loss [Input signal fiber: 20/400]<0.4 dB
Total power handling capability [Input signal fiber: X/125]50 W
Total power handling capability [Input signal fiber: X/250]100 W
Total power handling capability [Input signal fiber: 20/400]200 W
Polarization Extinction Ratio≥18 dB
Loop loss>45 dB
Package size [Input signal fiber: X/125, X/250]D1,D2,D3,D4
Package size [Input signal fiber: 20/400]D5,D6
Operating Temperature0~75 ℃
Storage temperature-40~85 ℃

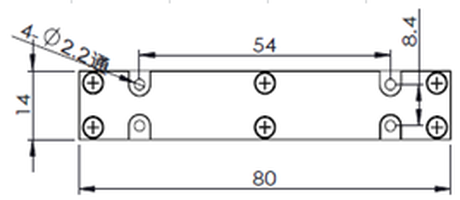

Package size [D5]80 mm x14 mm x10mm (54 mm x8.4mm)

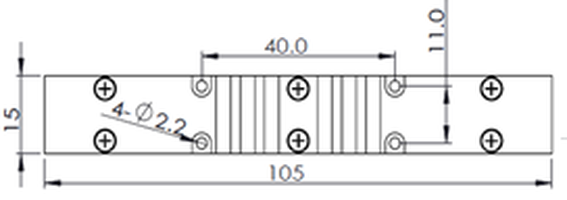

Package size [D6]105 mm x15 mm x8mm (40 mm x11mm)

Applications

High-power fiber lasers; fiber amplifiers

Key Features

High transmission efficiency; air-clad technology ensures powerful optical power transmission; parameter configurations are customizable; stable and reliable
