Cube beam splitter

Cube beam splitter

Supplier
Zeit-group
Category
Beam Splitters
Origin
China

(1) A non-polarizing cube beamsplitter consists of two right-angle prisms.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

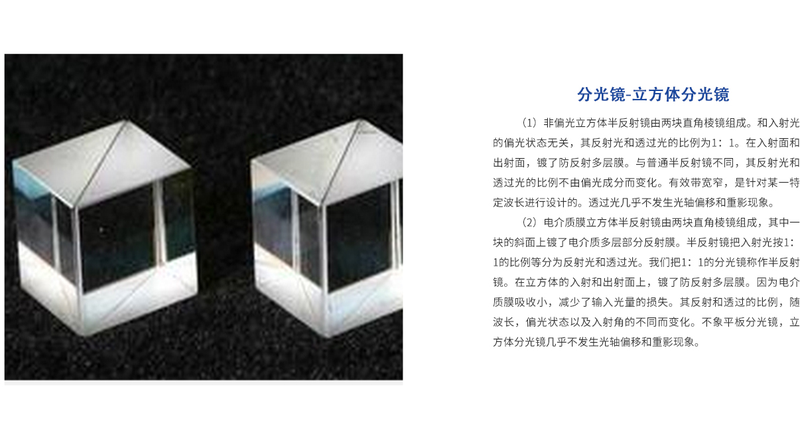

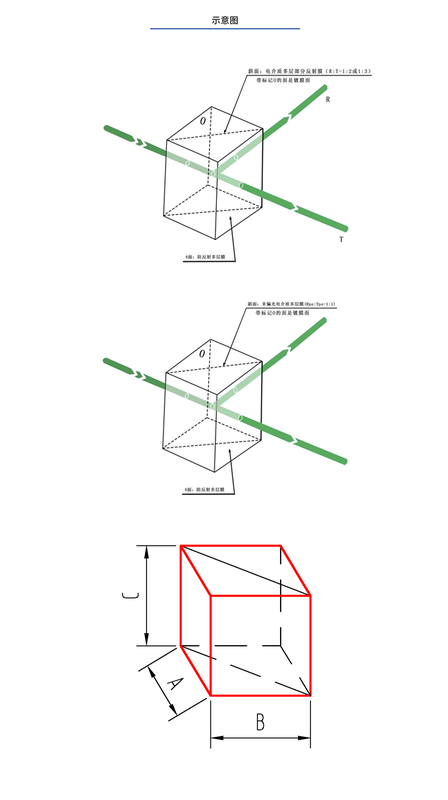

(1) A non-polarizing cube beamsplitter consists of two right-angle prisms. Its reflected-to-transmitted ratio is 1:1 regardless of incident polarization. Entrance and exit faces have multilayer antireflection coatings. Unlike ordinary beamsplitters, its splitting ratio does not vary with polarization. It has a narrow effective bandwidth designed for a specific wavelength, with almost no transmitted-beam displacement or ghosting. (2) A dielectric cube beamsplitter consists of two right-angle prisms, one with a multilayer dielectric partially reflective coating on its hypotenuse. It divides incident light equally into reflected and transmitted beams at a 1:1 ratio. Entrance and exit faces have multilayer antireflection coatings. Low dielectric absorption reduces incident-light loss. The splitting ratio varies with wavelength, polarization and angle of incidence. Unlike plate beamsplitters, cube beamsplitters produce almost no beam displacement or ghosting.

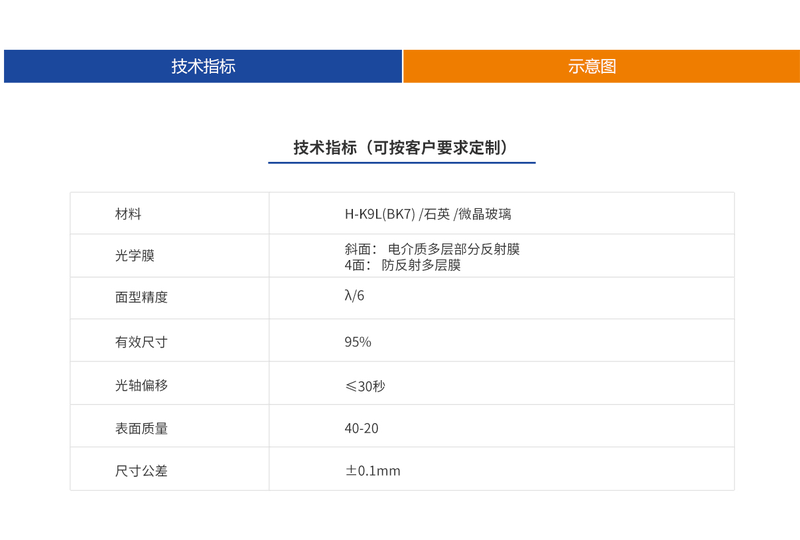

Specifications

ParameterValue
MaterialH-K9L(BK7) / Quartz / Glass-ceramic
Optical CoatingInclined Face: Multilayer Dielectric Partially Reflective Coating; Four Faces: Multilayer Antireflection Coating
Surface Figure Accuracyλ/6
Effective Size95%
Optical Axis Deviation≤30 arcsec
Surface Quality40-20
Dimensional Tolerance±0.1mm
