Prism

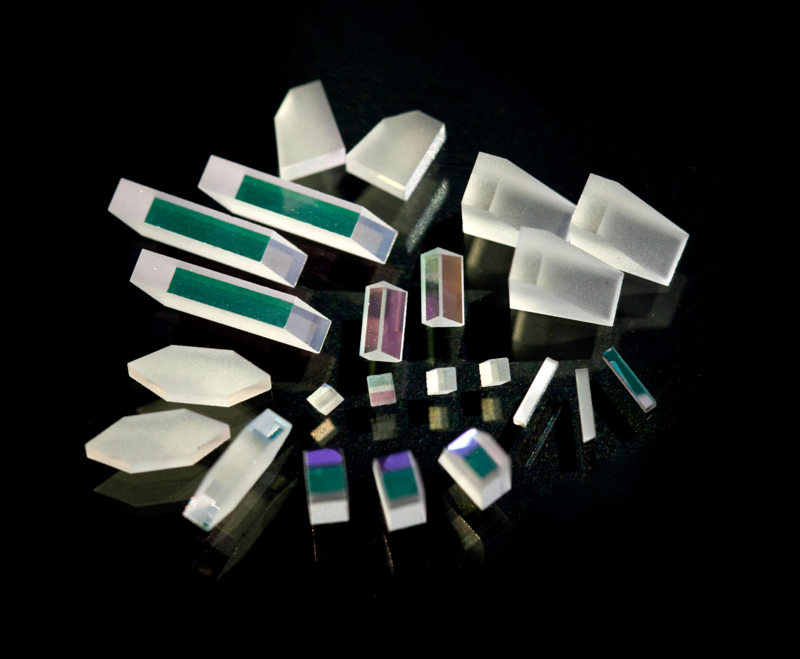

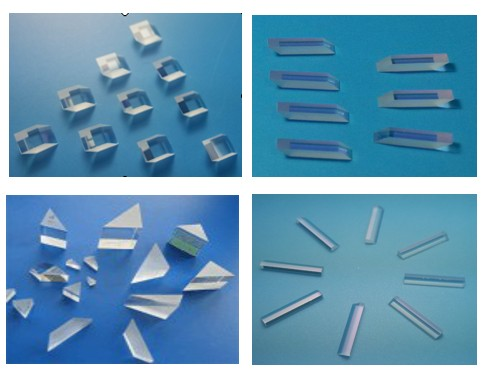

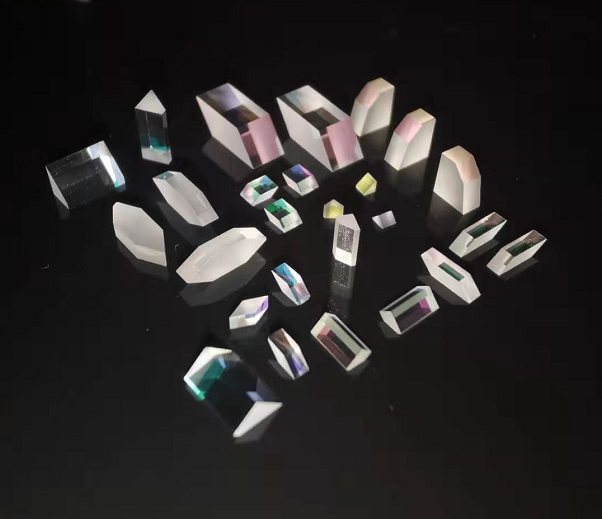

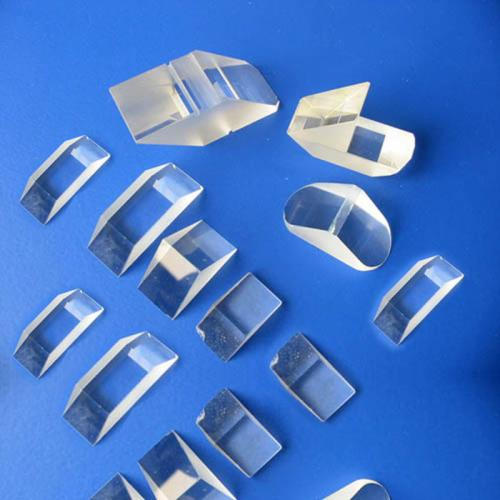

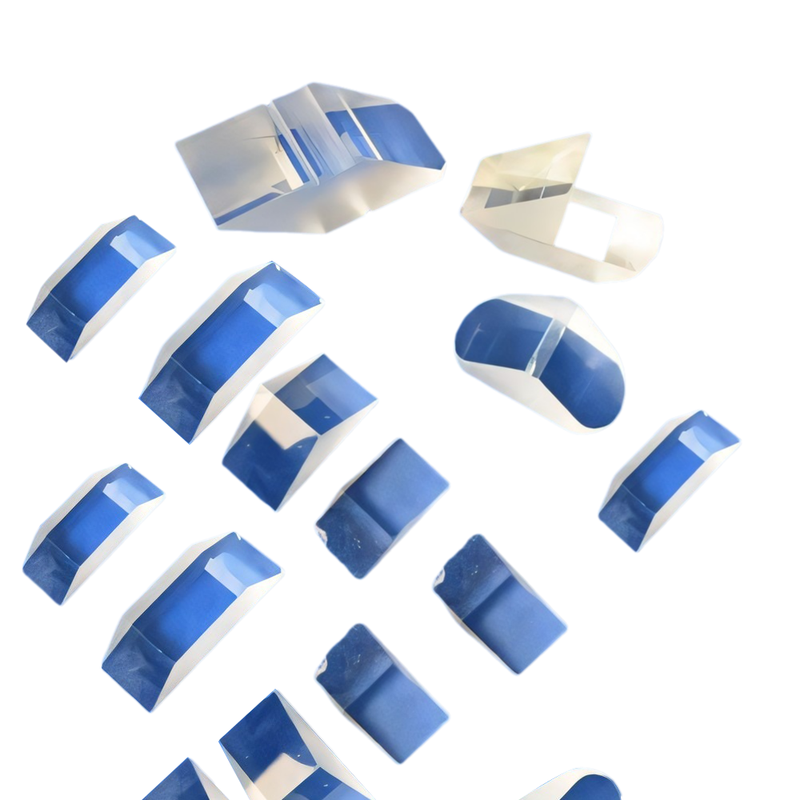

Provide high-precision optical prisms applied in optical transmission, data centers and other fields, to meet the development needs of ultra-high frequency, ultra-high speed, ultra-large capacity and ultra-small volume of optical modules. Prisms with various angles and coatings can be provided, including right-angle prisms, wedge prisms, equilateral prisms and rhomboid prisms, etc., to meet various customized requirements of customers.
Save to Favorites
Overview
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Pentaprisms
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A pentaprism deflects a beam through a fixed 90° angle.
-
Roof Prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A roof prism is compact and allows the objective and eyepiece to lie on the same axis, making it common in very compact binoculars.
-
Special prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A prism is a polyhedron made from transparent material such as glass or crystal and is widely used in optical instruments.
-
Right-angle mirror
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
One basic function of a right-angle prism is efficient total internal reflection using the critical-angle effect.
-
Corner Cube Prism
Prisms
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/6
A corner-cube prism is a glass retroreflector that returns an incident beam using three 90° angles.
