CLBO
Cesium lithium borate crystal (CsLiB₆O₁₀, CLBO) is an emerging crystal material with excellent deep-ultraviolet nonlinear properties. Compared with BBO crystals, CLBO crystals have advantages such as wide spectral range, large temperature tolerance, large acceptance angle, and small walk-off angle.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensional tolerance [L≥2.5 mm] | (W±0.1 mm)×(H±0.1 mm)×(L+0.5/-0.1 mm) (L≥2.5 mm) |
| Dimensional tolerance [L＜2.5 mm] | (W±0.1 mm)×(H±0.1 mm)×(L+0.1/-0.1 mm) (L<2.5 mm) |
| Effective clear aperture | Central 90 % area |
| Surface finish [Refer to MIL-PRF-13830B standard] | 10/5 refer to MIL-PRF-13830B standard |
| Flatness (λ) [633 nm] | <λ/6 @ 633 nm |
| Parallelism | 20 ″ |
| Perpendicularity | ≦15 ′ |
| Angular tolerance (Δθ / ΔФ) | Δθ≦0.25 °,ΔФ≦0.25 ° |
| Chamfer | ≦0.2 mm×45 ° |
| Chipping | ≦0.1 mm |
| Damage threshold [532 nm, 10 ns, 10 Hz; AR coating; 532 nm, 10 ns, 10 Hz (AR coating)] | >0.3 GW/cm² @ 532 nm, 10 ns, 10 Hz (AR coating) |
| Damage threshold [266 nm, 10 ns, 10 Hz; AR coating; 266 nm, 10 ns, 10 Hz (AR coating)] | >0.15 GW/cm² @ 266 nm, 10 ns, 10 Hz (AR coating) |
| Quality shelf life [Normal use] | One year (normal use) |
| Crystal structure | Tetragonal, space group I |
| Unit cell parameters | a=b=10.494 Å,c=8.939 Å |
| Symmetry | Z=4 |
| Melting Point | <about 844.5 ℃ |

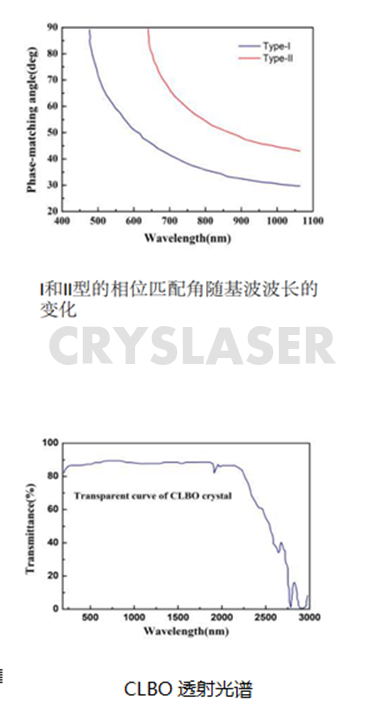

| Transmission Range | 180-2750 nm |
| Acceptance angle [1064 nm] | 1.02 mrad·cm @ 1064 nm |
| Acceptance angle [532 nm] | 0.49 mrad·cm @ 532 nm |
| Acceptance angle [488 nm] | 0.84 mrad·cm @ 488 nm |
| Temperature bandwidth | 9.4 ℃·cm |
| Acceptance spectral width [1064 nm] | 7.03 nm·cm @ 1064 nm |
| Acceptance spectral width [532 nm] | 0.13 nm·cm @ 532 nm |
| Acceptance spectral width [488 nm] | 0.09 nm·cm @ 488 nm |
| Walk-off angle [1064 nm] | 1.78 °@ 1064 nm |
| Walk-off angle [532 nm] | 1.83 °@ 532 nm |
| Walk-off angle [488 nm] | 0.98 °@ 488 nm |
| Effective nonlinear coefficient [532 nm] | 1.01 pm/V @ 532 nm |
| Effective nonlinear coefficient [488 nm] | 1.16 pm/V @ 488 nm |
| Effective nonlinear coefficient [1064 nm] | 0.95 pm/V @ 1064 nm |
| Nonlinear optical coefficient | deff(Ⅰ)=d36sinθmsin(2Ф) deff(Ⅱ)=d36sin(2θm)sin(2Ф) |

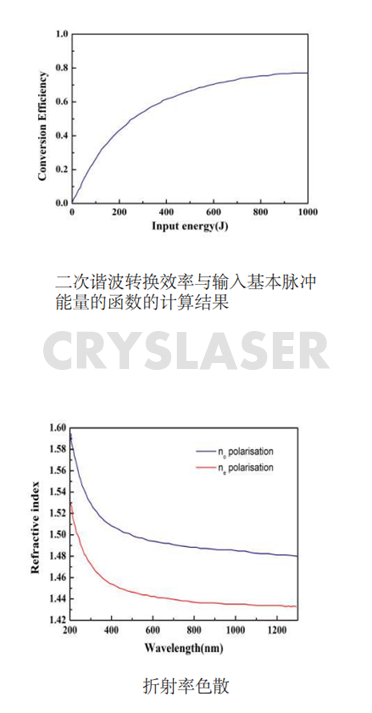

| Sellmeier equation (λ in μm) [λ in μm; at 20 ℃; 0.1914 µm＜λ＜2.09 µm] | At 20 ℃: no2=2.2104+0.01018/(λ2-0.01424)-0.01258λ2 ne2=2.0588+0.00838/(λ2-0.01363)-0.00607λ2 (0.1914 µm<λ<2.09 µm) |
