Off-axis parabolic mirror

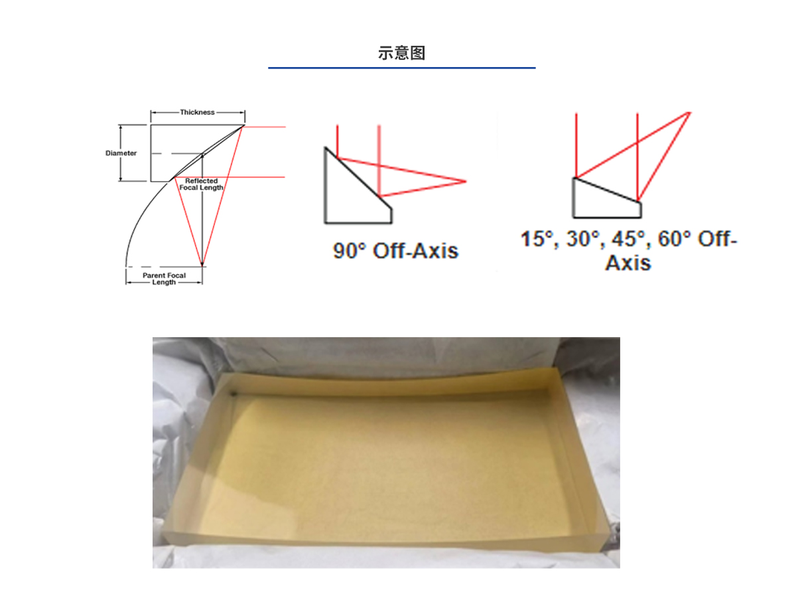

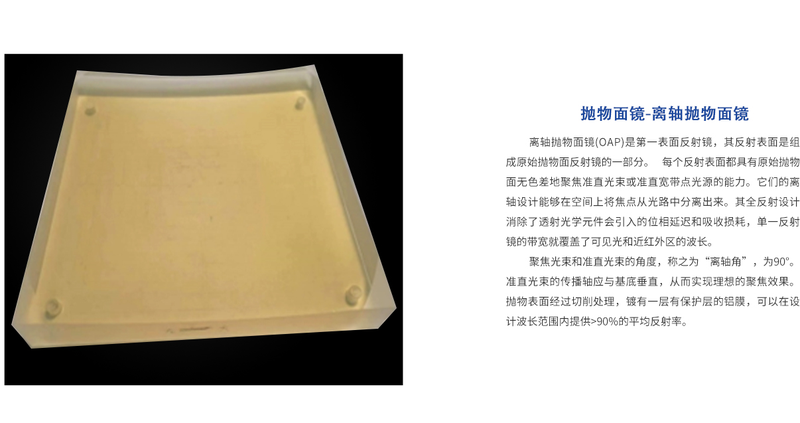

An off-axis parabolic mirror (OAP) is a first-surface mirror whose reflecting surface is a segment of a parent paraboloid.
Save to Favorites
Overview

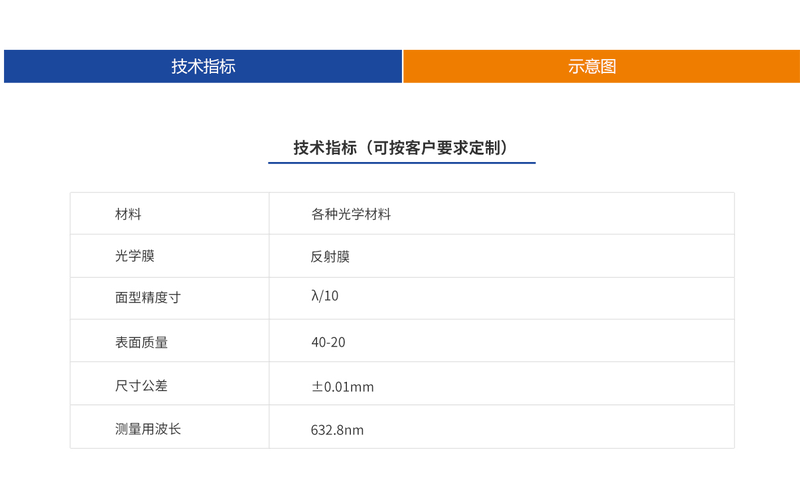

Specifications
| Parameter | Value |
|---|---|
| Material | Various Optical Materials |
| Optical Coating | Reflective Coating |
| Surface Figure Accuracy Dimensions [632.8nm] | λ/10 |
| Surface Quality | 40-20 |
| Dimensional Tolerance | ±0.01mm |
| Measurement Wavelength | 632.8nm |
