AM-360 Optical Element Spectrum Sorter
The AM-360 Optical Element Spectrum Sorter is an automatic multi-point multi-angle transmittance/reflectance testing device for planar optical elements. It can perform batch tests such as multi-angle transmission, reflection, and polarization according to a test board customized for each type of sample, completing all tests in one go; the sample carrying platform has fast carrying speed and high precision, enabling high-speed multi-point multi-angle transmittance/reflectance detection of samples, and can also quickly perform quality inspection and grading of results, greatly improving detection efficiency.
Specification Snapshot
Repeatability
±0.0025 mm
Request a Quote
Download Datasheet
Overview
The AM-360 Optical Element Spectrum Sorter is an automatic multi-point multi-angle transmittance/reflectance testing device for planar optical elements. It can perform batch tests such as multi-angle transmission, reflection, and polarization according to a test board customized for each type of sample, completing all tests in one go; the sample carrying platform has fast carrying speed and high precision, enabling high-speed multi-point multi-angle transmittance/reflectance detection of samples, and can also quickly perform quality inspection and grading of results, greatly improving detection efficiency.

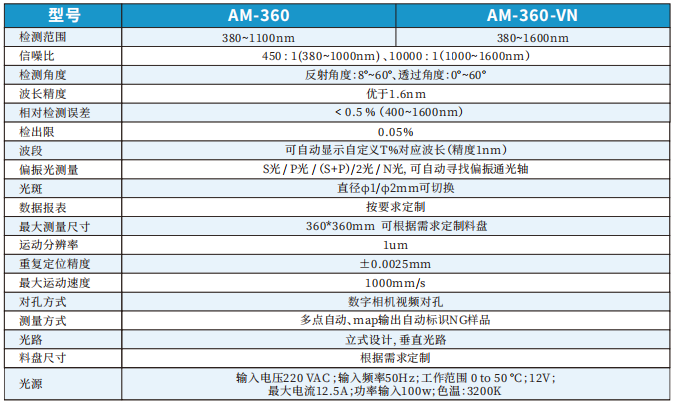

Specifications
| Parameter | Value |
|---|---|
| Detection Range | 380~1100 nm |
| Signal-to-noise ratio [380~1000nm] | 450:1(380~1000 nm) |
| Signal-to-noise ratio [1000~1600nm] | 10000:1(1000~1600 nm) |
| Detection angle | Reflection angle: 8 °~60 °, transmission angle: 0 °~60 ° |
| Wavelength Accuracy | Better than 1.6 nm |
| Relative Detection Error [400~1600nm] | <0.5 %(400~1600 nm) |
| Limit of detection | 0.05 % |
| Wavelength band | Can automatically display the wavelength corresponding to custom T% (accuracy 1 nm) |
| Polarized Light Measurement | S light/P light/(S+P)/2 light/N light, can automatically find the polarization axis |
| Spot | Diameter φ1/φ2mm switchable |
| Data Report | Customized as required |
| Maximum Measurement Size [Tray can be customized as required] | 360 mm *360 mm, tray can be customized as required |
| Motion resolution | 1 um |
| Repeatability | ±0.0025 mm |
| Maximum Movement Speed | 1000 mm/s |
| Hole Alignment Method | Digital camera video hole alignment |
| Measurement method | Multi-point automatic, map output automatically identifies NG samples |
| Optical Path | Vertical design, vertical optical path |
| Sample Tray Size | Customized according to requirements |
| Light Source [50Hz;0 to 50°C] | Input Voltage 220 VAC;Input Frequency 50 Hz;Operating Range 0 to 50 °C;12 V;Maximum Current 12.5 A;Power Input 100w;Color Temperature 3200 K |
Key Features
1. Supports small sample detection;; 2. Supports polarized light measurement;; 3. Customizable measurement positions;; 4. Fast, non-destructive, automatic detection;; 5. Supports array-type or large sample point-by-point full inspection;; 6. Tray size customizable;; 7. Supports measurement of absolute reflectance, relative reflectance, absolute transmittance, and relative transmittance;; 8. One-key measurement results, customizable report output format.
Datasheet
Please provide your email to download the datasheet.
Your name
Email Address
Invalid email format. Please try again.
Send Request
Supplier Information
Guangzhou Biaoqi Optoelectronics Technology Development Co., Ltd. was founded in 2005 and is an enterprise founded by leading entrepreneurial talents in Guangzhou Development District. It is a national high-tech enterprise and a national specialized and sophisticated "little giant" enterprise focusing on spectral rapid detection system integration and instrument development. The company integrates design, R&D, manufacturing, sales, and after-sales service, with spectral rapid detection and analysis technology as its core. Through high-speed acquisition, processing, and algorithm analysis of spectral data, it provides rapid, non-destructive, online, fully automatic detection equipment and high-end quality inspection and analysis solutions for various industries. Biaoqi Optoelectronics has established the Guangdong Provincial Engineering Technology Research Center for Rapid Spectral Measurement. Its products cover many fields such as optical component inspection, semiconductors, new energy vehicles, environmental monitoring, solar photovoltaics, new materials, biology, optoelectronics, and chemicals. Relying on strong independent R&D capabilities and independent demonstrative diversified operational advantages, Biaoqi Optoelectronics has achieved rapid development in recent years and is a leader in the domestic spectral rapid detection application industry. It has obtained numerous qualifications and honors, including national specialized and sophisticated "little giant" enterprise, national high-tech enterprise, Guangdong Province specialized and sophisticated enterprise, Guangdong Province intellectual property demonstration enterprise, and Guangzhou Development District gazelle enterprise.
Under the guidance of its core corporate values of "prudent thinking, earnest practice, innovation, and win-win", Biaoqi Optoelectronics continuously accumulates experience, builds a domestic independent brand, and customizes spectral detection application solutions for customers, developing spectral rapid detection and analysis instruments suitable for different application fields. These include the optical component inspection industry: optical component spectral sorting instruments, reflectance spectral analyzers, transmittance spectral analyzers, etc.; the jewelry identification industry: UV-visible spectral analyzers (jewelry detectors), jewelry luminescence imaging analyzers, etc.; and the scientific research field: quantum efficiency spectral analysis systems, portable Raman spectral analyzers, photoluminescence spectral analyzers, etc. Biaoqi Optoelectronics' non-destructive rapid spectral analyzers have significant advantages, featuring high efficiency, speed, and accuracy, which can help users greatly improve detection efficiency and assist the high-quality development of application industries.
At the same time, Biaoqi Optoelectronics is the South China general agent for Ocean Optics, the inventor of micro fiber optic spectrometers, an internationally renowned enterprise.
With the rapid development of science and technology, Biaoqi Optoelectronics keeps pace with technological progress and the development of the times, forging ahead on the road of rapid spectral detection, striving for perfection.
