Optical Spectrum Analyzer (AQ6370E)

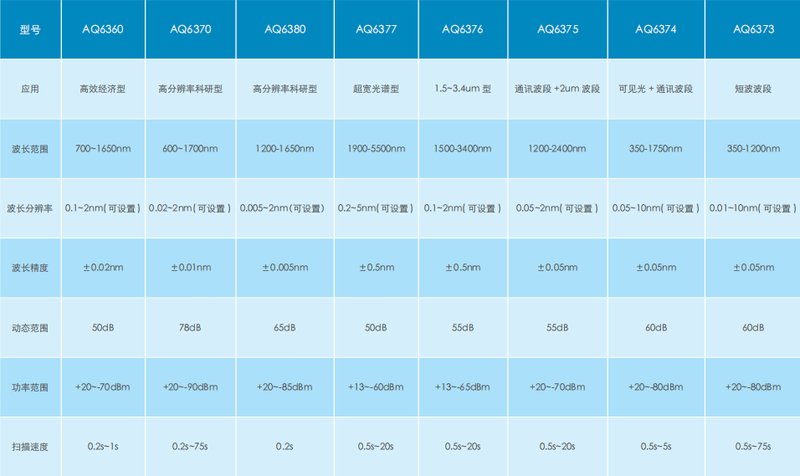

The AQ63xx series is a high-speed, high-performance optical spectrum analyzer based on diffraction grating technology. This series of products covers a wide measurable wavelength range from visible light to mid-wave infrared (350 ~ 5500nm), with a total of 7 models, meeting the measurement needs of various R&D and industrial manufacturing applications.
Save to Favorites
Overview
Specifications

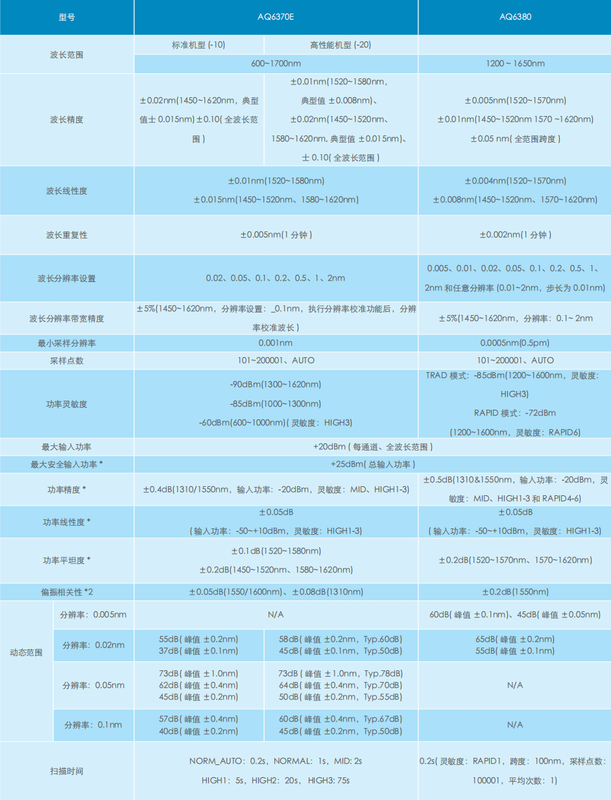

| Parameter | Value |
|---|---|
| Wavelength Range | 600-1700nm |
| Wavelength accuracy [standard model (-10); 1450~1620nm; full wavelength range] | ±0.02 nm (1450~1620 nm, typical value ±0.015 nm) ±0.10 (full wavelength range) |
| Wavelength accuracy [high-performance model (-20); 1520~1580nm; 1450~1520nm, 1580~1620nm; full wavelength range] | ±0.01 nm (1520~1580 nm, typical value ±0.008 nm), ±0.02 nm (1450~1520 nm, 1580~1620 nm, typical value ±0.015 nm), ±0.10 nm (full wavelength range) |
| Wavelength linearity [1520~1580nm；1450~1520nm、1580~1620nm] | ±0.01 nm(1520~1580 nm);±0.015 nm(1450~1520 nm、1580~1620 nm) |
| Wavelength repeatability [1 minute] | ±0.005 nm (1 minute) |
| Wavelength resolution setting | 0.02 nm、0.05 nm、0.1 nm、0.2 nm、0.5 nm、1 nm、2 nm |
| Wavelength resolution bandwidth accuracy [1450~1620nm; Resolution setting: 0.1nm; After executing the resolution calibration function; Resolution calibration wavelength] | ±5 % (1450~1620 nm, Resolution setting: 0.1 nm, After executing the resolution calibration function, Resolution calibration wavelength) |
| Minimum sampling resolution | 0.001 nm |
| Sampling Points | 101~200001、AUTO |
| Power sensitivity [1300~1620nm; 1000~1300nm; 600~1000nm; Sensitivity: HIGH3] | -90 dBm (1300~1620 nm); -85 dBm (1000~1300 nm); -60 dBm (600~1000 nm) (Sensitivity: HIGH3) |
| Maximum input power [Per channel, full wavelength range] | +20 dBm (per channel, full wavelength range) |
| Maximum safe input power [Total input power] | +25 dBm (total input power) |
| Power accuracy [1310/1550nm; Input power: -20dBm; Sensitivity: MID, HIGH1-3] | ±0.4 dB (1310/1550 nm, Input power: -20 dBm, Sensitivity: MID, HIGH1-3) |
| Power linearity [Input power: -50~+10dBm; sensitivity: HIGH1-3] | ±0.05 dB (input power: -50~+10 dBm, sensitivity: HIGH1-3) |
| Power flatness [1520~1580nm；1450~1520nm、1580~1620nm] | ±0.1 dB(1520~1580 nm);±0.2 dB(1450~1520 nm、1580~1620 nm) |
| Polarization dependence [1550/1600nm；1310nm] | ±0.05 dB(1550/1600 nm)、±0.08 dB(1310 nm) |
| Dynamic range [standard model (-10); Resolution: 0.02nm] | 55 dB (peak ±0.2 nm); 37 dB (peak ±0.1 nm) |
| Dynamic range [high-performance model (-20); Resolution: 0.02nm] | 58 dB (peak ±0.2 nm, Typ.60dB); 45 dB (peak ±0.1 nm, Typ.50dB) |
| Dynamic range [standard model (-10); Resolution: 0.05nm] | 73 dB (peak ±1.0 nm); 62 dB (peak ±0.4 nm); 45 dB (peak ±0.2 nm) |
| Dynamic range [high-performance model (-20); Resolution: 0.05nm] | 75 dB (peak ±1.0 nm, Typ.78dB); 64 dB (peak ±0.4 nm, Typ.70dB); 50 dB (peak ±0.2 nm, Typ.55dB) |
| Dynamic range [standard model (-10); Resolution: 0.1nm] | 57 dB (peak ±0.4 nm); 40 dB (peak ±0.2 nm) |
| Dynamic range [high-performance model (-20); Resolution: 0.1nm] | 60 dB (peak ±0.4 nm, Typ.67dB); 45 dB (peak ±0.2 nm, Typ.50dB) |
| Sweep time [NORMAL_AUTO；NORMAL；MID；HIGH1；HIGH2；HIGH3] | NORMAL_AUTO:0.2 s、NORMAL:1 s、MID:2 s;HIGH1:5 s、HIGH2:20 s、HIGH3:75 s |
