TMS-320 Transmittance Spectrum Sorter

TMS-320 Transmittance Spectrum Sorter

Supplier
Gzbiaoqi
Part Number
TMS-320
Category
Optical Inspection
Origin
China

The TMS-320 Transmittance Spectrum Sorter is a batch transmittance testing device for optical element samples. The high-precision motorized displacement stage greatly improves sample testing speed, allows customizing the sample measurement area, and records data to achieve automatic multi-hole/multi-point transmittance measurement of samples. It is suitable for multi-hole testing of mobile phone panels, high-throughput testing of array filters, and quality inspection, grading and uniformity detection of coated filters.

Specification Snapshot
Wavelength Accuracy
0.5 nm
Repeatability
±0.0025 mm
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The TMS-320 Transmittance Spectrum Sorter is a batch transmittance testing device for optical element samples. The high-precision motorized displacement stage greatly improves sample testing speed, allows customizing the sample measurement area, and records data to achieve automatic multi-hole/multi-point transmittance measurement of samples. It is suitable for multi-hole testing of mobile phone panels, high-throughput testing of array filters, and quality inspection, grading and uniformity detection of coated filters.

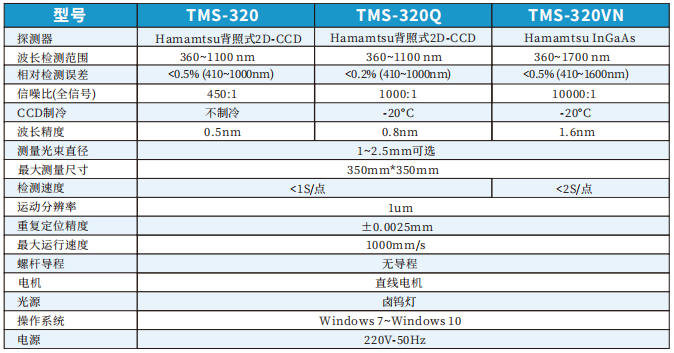

Specifications

ParameterValue
DetectorHamamtsu back-illuminated 2D-CCD
Wavelength detection range360~1100 nm
Relative measurement error [410~1000nm]<0.5 % (410~1000 nm)
Signal-to-noise ratio (full signal)450:1
CCD coolingUncooled
Wavelength Accuracy0.5 nm
Measurement beam diameter1~2.5 mm optional
Maximum measurement size350 mm × 350 mm
Detection speed [Point]<1 S/point
Motion resolution1 um
Repeatability±0.0025 mm
Maximum operating speed1000 mm/s
Screw leadNo lead
MotorLinear motor
Light sourceHalogen tungsten lamp
Operating SystemWindows7~Windows10
Power supply [50Hz]220 V-50Hz

Key Features

1. Fast single-point detection, millisecond level;; 2. Millimeter-level small sample detection;; 3. Extra-large travel (customizable), supports large-batch full inspection of samples;; 4. Can perform quality inspection and grading on samples.
