Right-angle prism
A right-angle prism is usually used to bend the optical path or to deflect the image formed by an optical system by 90°. Depending on the orientation of the prism, the image can be left-right consistent but top-bottom inverted, or left-right inconsistent but top-bottom consistent.
Save to Favorites
Overview
Specifications

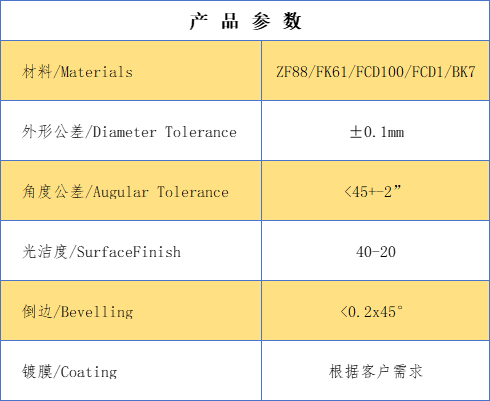

| Parameter | Value |
|---|---|
| Materials | ZF88/FK61/FCD100/FCD1/BK7 |
| Diameter Tolerance | ±0.1 mm |
| Angular Tolerance | <45+-2 ″ |
| Surface Finish | 40-20 |
| Bevelling | <0.2x45 ° |
| Coating | According to customer requirements |
