Beam splitter prisms
A transparent object enclosed by planes that intersect in pairs but are all non-parallel to one another, used to split light or disperse a light beam.
Save to Favorites
Overview

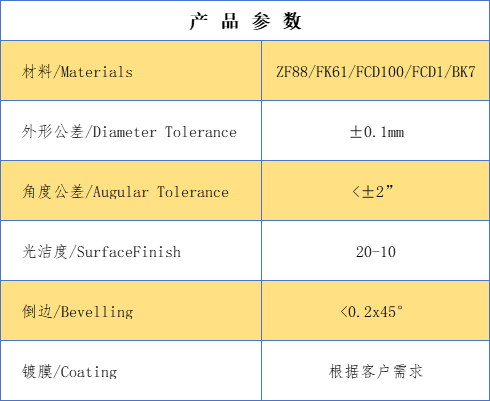

Specifications
| Parameter | Value |
|---|---|
| Materials | ZF88/FK61/FCD100/FCD1/BK7 |
| Diameter Tolerance | ±0.1 mm |
| Angular Tolerance | <±2 ″ |
| Surface Finish | 20-10 |
| Bevelling | <0.2x45 ° |
| Coating | According to customer requirements |
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
