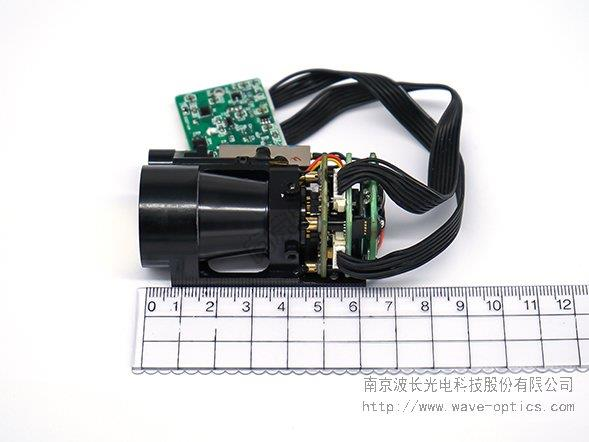

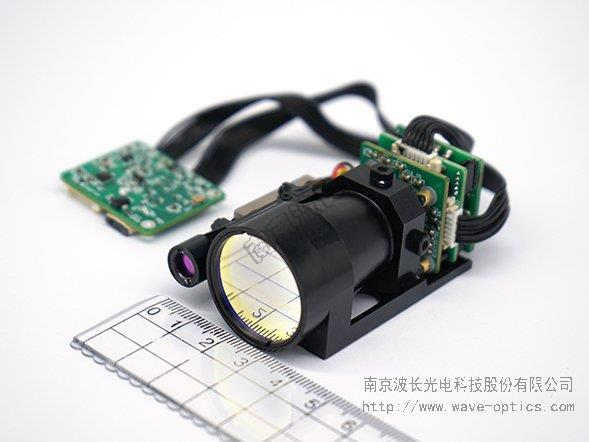

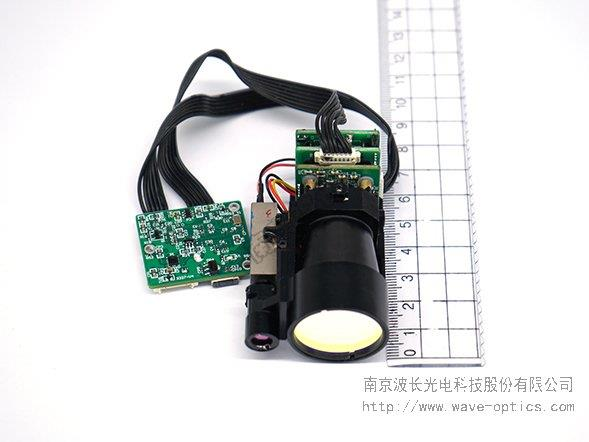

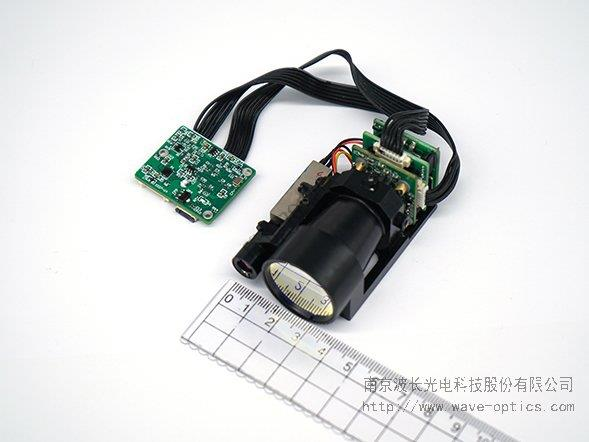

Eye-safe 1535nm Miniature Laser Rangefinder
The eye-safe 1535nm miniature laser rangefinder is used to measure target distance and can send distance information to the host computer. This series of ranging modules is a Class I eye-safe product. The entire system communication is completed through a serial port. It mainly features convenient operation and use, compact size, and light weight, and can be customized according to the requirements of the complete machine. The laser ranging module is mainly composed of a laser, transmitting and receiving optical system, laser driver, receiving circuit, low-voltage power supply, information processor, and other parts.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating wavelength | 1535±2 nm |
| Operating Range-Max (km) [against 2.3m×2.3m ground target under weather conditions with visibility ≥8km; 2.0] | ≥3 km |
| Operating Range-Max (km) [against 2.3m×2.3m ground target under weather conditions with visibility ≥8km; 4.0] | ≥6 km |
| Operating Range-Max (km) [against 2.3m×2.3m ground target under weather conditions with visibility ≥8km; 8.0] | ≥10 km |
| Operating Range-Min [against 2.3m×2.3m ground target under weather conditions with visibility ≥8km; 2.0/4.0/8.0] | 50 m |
| Ranging Accuracy: | ±1 m |
| Laser Beam Divergence Angle | ≤0.5 mrad |
| Adjustment Non-parallelism | ≤0.3 mrad |
| Structural Parameters-Dimensions [2.0] | 72 mm × 50 mm × 35 mm |
| Structural Parameters-Weight [2.0] | ≤90 g |
| Structural Parameters-Dimensions [4.0] | 105 mm × 60 mm × 40 mm |
| Structural Parameters-Weight [4.0] | ≤100 g |
| Structural Parameters-Dimensions [8.0] | 120 mm × 85 mm × 65 mm |
| Structural Parameters-Weight [8.0] | ≤190 g |
| Measurement Accuracy Rate | ≥98 % |
