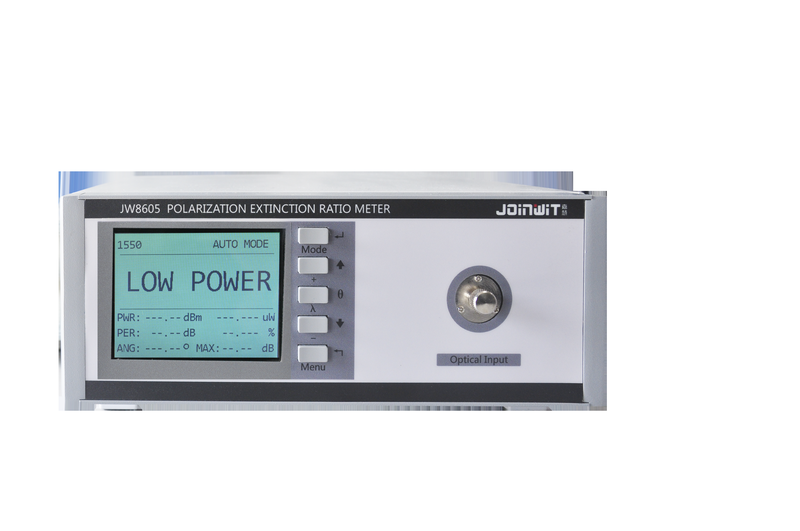

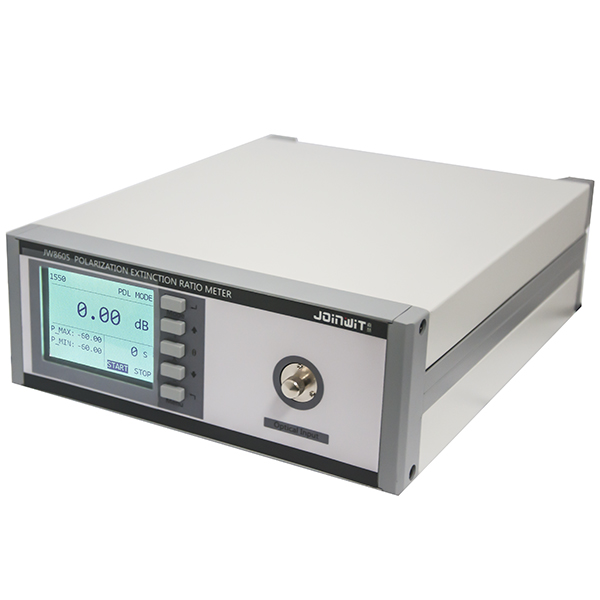

JW8605 Polarization Extinction Ratio Tester (JW8605 Type C)
丨 The JW8605 Polarization Extinction Ratio Tester is a new-generation precision optical testing instrument developed by Shanghai Jiahui Optoelectronics Technology Co., Ltd. based on years of optical device testing experience. It is specially used for polarization extinction ratio (PER) testing of polarization-maintaining devices, degree of polarization (DOP) testing of light sources, extinction ratio testing of polarization-maintaining fibers, and performance evaluation of other polarization-maintaining devices. The device integrates high-precision measurement, flexible configuration, and efficient operation, and can be widely used in scenarios such as polarization-maintaining fiber extinction ratio measurement, polarization-maintaining optical device extinction ratio measurement, polarization-maintaining connector extinction ratio measurement, light source degree of polarization measurement, and polarization axis angle measurement.
Save to Favorites
Overview
Specifications

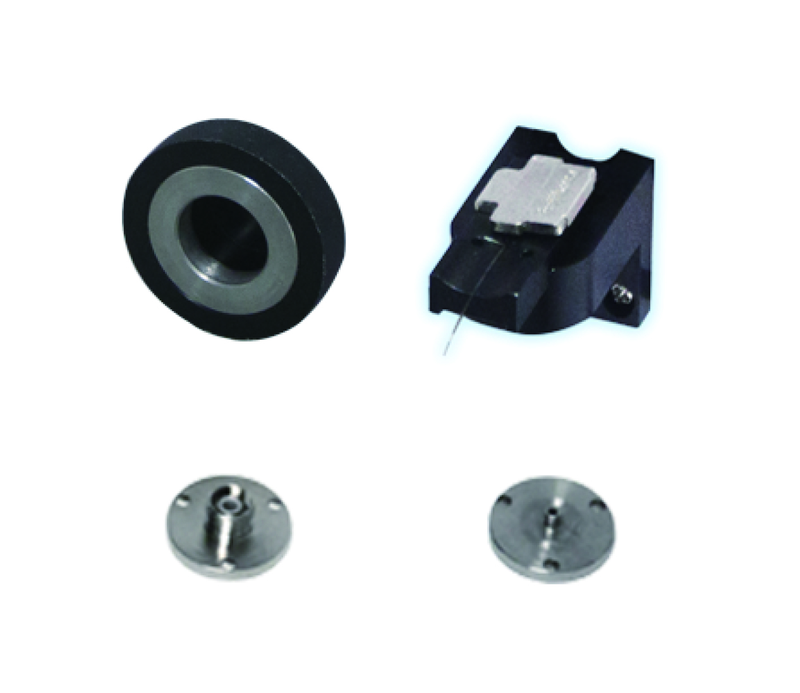

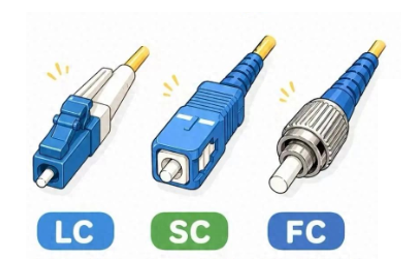

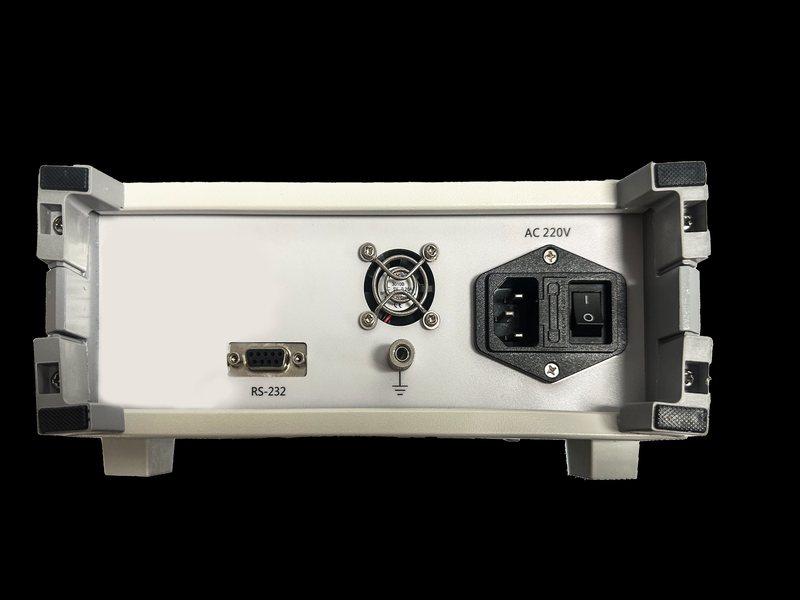

| Parameter | Value |
|---|---|
| Wavelength Range | Type C Visible Light 400-700nm |
| Maximum Input Power [Power Customizable] | +10/+25 dBm (power customizable) |
| Input Power Range | -30~+10 dBm |
| Max PER | 30 dB |
| PER Dynamic Range [400-500nm；500-700nm] | 400-500nm:20db 500-700nm:30db |
| PER Resolution [<10dB；≥10dB] | <10 dB:0.001 dB ≥10 dB:0.01 dB |
| PER Accuracy [PER≤2dB；PER<30dB；PER≥30dB] | PER≤2 dB:≤±0.1 dB PER<30 dB:< ±0.3 dB PER≥30 dB:< ±1.0 dB |
| Polarization Angle Resolution | 0.11 ° |
| Polarization Angle Accuracy | < ±0.45 ° |
| Measurement Speed | 0.25 s |
| Connector Type [Also supports SC/LC interfaces, optional bare fiber adapter] | FC/PC (also supports SC/LC interfaces, optional bare fiber adapter) |
| Communication Interface | RS232 |
