Polarization Maintaining Fiber Array
PM fiber arrays consist of multiple pm fibers whose polarization axes are aligned to each other and the plane is formed by the center of the fibers. Each fiber is actively aligned and monitored to ensure the rotation with respect to the desired alignment.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of channels [device without connector] | 1 / 2 / 4 / 8 / 16 / 32 |
| V-groove Material [device without connector] | Quartz or Borosilicate Glass |
| Fiber Type [device without connector] | 250 um Panda PM fiber or customer specified |
| V-groove core pitch [device without connector；±0.5] | 250/127 μm(±0.5) |
| Polishing angle [device without connector；±0.5°] | 8 °(±0.5 °) |
| Extinction Ratio [device without connector；Number of channels: 1] | ≥23 dB |
| Extinction Ratio [device without connector；Number of channels: 2 / 4] | ≥22 dB |
| Extinction Ratio [device without connector；Number of channels: 8] | ≥20 dB |
| Extinction Ratio [device without connector；Number of channels: 16 / 32] | ≥18 dB |
| Channel spacing [device without connector；Number of channels: 2] | 250 μm |
| Channel spacing [device without connector；Number of channels: 4 / 8] | 127/250 μm |
| Channel spacing [device without connector；Number of channels: 16 / 32] | 127 μm |

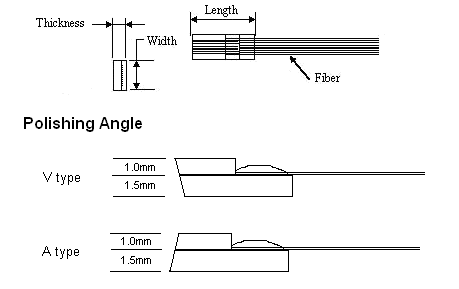

| Package (L)XX(H) [device without connector；Number of channels: 1] | 7.5 mm × 2.5 mm × 2.5 mm |
| Package (L)XX(H) [device without connector；Number of channels: 2 / 4] | 9.5 mm × 2.5 mm × 2.5 mm |
| Package (L)XX(H) [device without connector；127μm；Number of channels: 8] | 9.5 mm x3.0 mm x2.5 mm(127 μm) |
| Package (L)XX(H) [device without connector；250μm；Number of channels: 8] | 9.5 mm x3.2 mm x2.5 mm(250 μm) |
| Package (L)XX(H) [device without connector；Number of channels: 16] | 11.5 mm × 3.5 mm × 2.5 mm |
| Package (L)XX(H) [device without connector；Number of channels: 32] | 11.5 mm × 6 mm × 2.5 mm |
| Operating Temperature [device without connector] | -40~85 ℃ |
| Storage Temperature [device without connector] | -40~85 ℃ |
