NCD3091M Laser Driver Circuit Micromodule

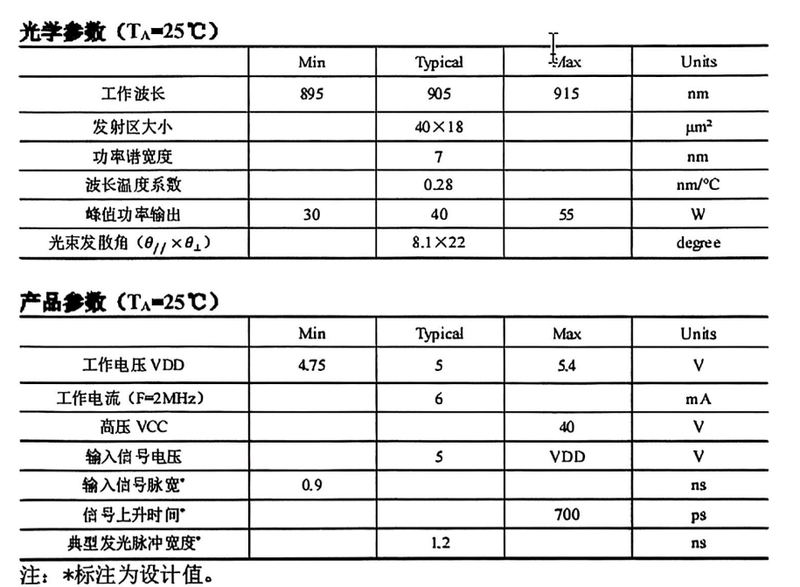

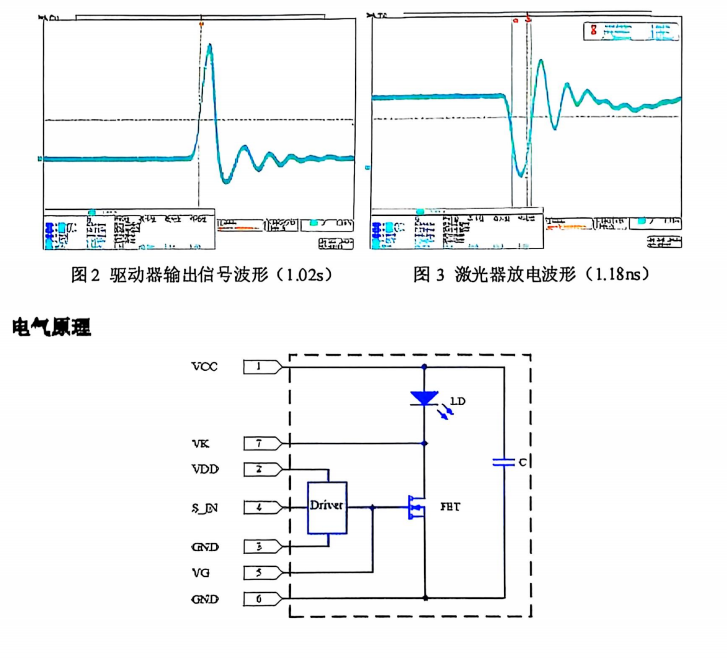

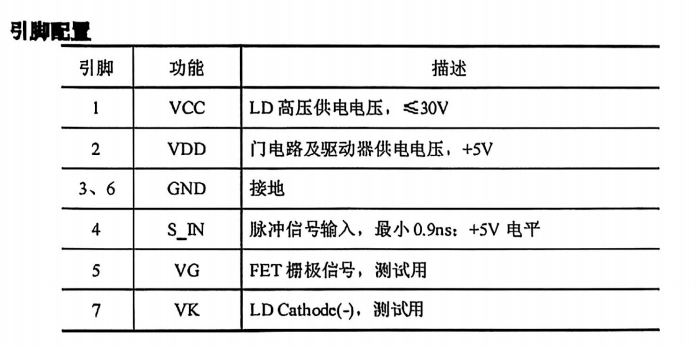

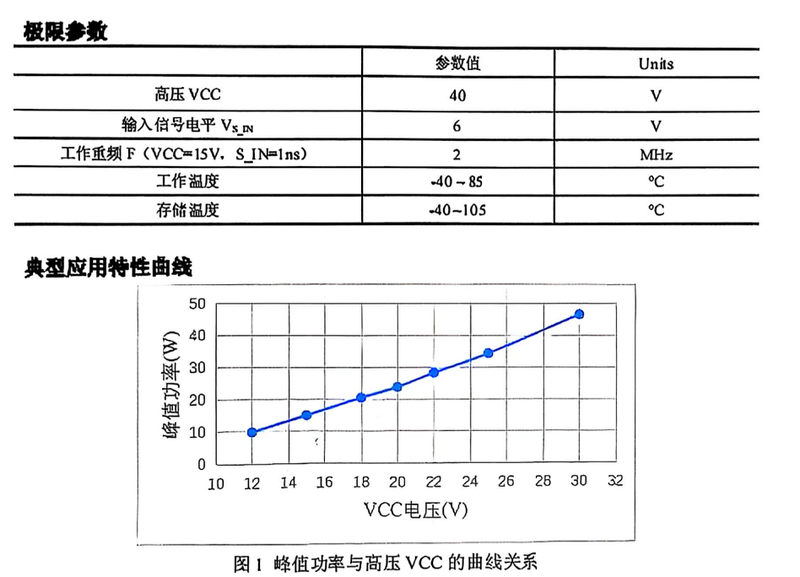

The NCD3091M laser-driven circuit micromodule is an integrated high-speed drive, the GaN HeMT and the laser diode; supports 0.9ns with a minimum input wiring; and works at a frequency of 2 MHz. NCD3091M uses SMD seals; meets SAC305 reflow requirements; facilitates automated assembly of customers; product size 5 mm x 6 mm X2mm; small size; facilitates customer secondary integration; applies in areas such as laser radar; accepts customisation design
Save to Favorites
Overview
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Low noise laser driver module
Laser Diode Drivers
Ovlink
Product parameters: minimum;typical;maximum; units; description Output current: 1; 600; max. 1,500 mA
The ONLD series is a low current noise developed for precision measurement; a high-controlled temperature laser driver for temperature control; the product is already being measured in quantum precision; fibre-optic sensors; and applications in areas such as space communications. A rich control interface and OEM services provide a more suitable client; easier laser control products. Provide standard butterfly wrappers; facilitate the replacement of different types of lasers; protect features such as overflow, overpressure, overheat, slow current up, slow current down, etc
-
Double-channel single-module laser driver OCLD series
Laser Diode Drivers
Ovlink
Product parameters: minimum;typical;maximum; units; description Output current: 10; 1200; MA; single-mode LD control parameters; -1.6; 1.6; A; 0~15;A;Multimodal Driver Control Parameters
The OCLD series is a two-way output laser controller designed for industrial laser users. It controls both single-model lasers and multiple-model pump lasers; the product has excellent laser protection and failure diagnosis. Max. current support 15A output supports external simulations; modem frequency up to 100kHz supports uplink control
-
Desktop Low Noise Laser Drive
Laser Diode Drivers
Ovlink
Product parameters: minimum;typical;maximum; units; description Output current: 0; 600; mA; -2; 2; A
The OULD series is targeted for narrow-line wide lasers and stabilization wavelength lasers; control accuracy with extremely low current noise and extremely high temperature. Touch screen matching entity buttons provide easier operations for users. To respond to laboratory testing needs; the product is accompanied by one key saving / reading function; and one key automated setting for PID parameters. Support for constant current ACC; constant APC mode support external simulations; modems up to 1 MHz support RS485; USB communications interface
-
Desktop large current laser controller OFLD series
Laser Diode Drivers
Ovlink
Product parameters: minimum;typical;maximum; units; description Output current: 0; 2000; MA; custom 3000mA
The desktop OFLD series is a high-performance semiconductor laser controller; real-time monitoring of semiconductor laser currents; voltage; temperature state, etc. parameters; and can be used with multiple types of traps. Touch screen matching entity buttons provide easier operations for users. For plant-based laser LIV testing needs; the product is accompanied by a one-key parameter saving/ reading function; and PID parameter automated settings, etc. Support for constant current ACC; constant APC mode support external simulations; modems up to 100 kHz support RS485; USB communications interface
-
Four-channel butterfly laser drive ODLD series
Laser Diode Drivers
Ovlink
Product parameters: minimum;typical;maximum; units; description
The ODLD series is a four-channel laser controller designed for multi-road laser output scenarios; has the advantage of high current output, high current accuracy, high constant flow characteristics and high ability to resist interference; has also had currents; overpressures; protection measures such as overheat; and guarantees the job stability and service life of lasers. Each channel can work and control independently, provide standard butterfly pump laser foot definition; compatible 10pin and 14pin tube foot support serial communication and on-board control
