NCD3081M Laser Driver Circuit Micromodule

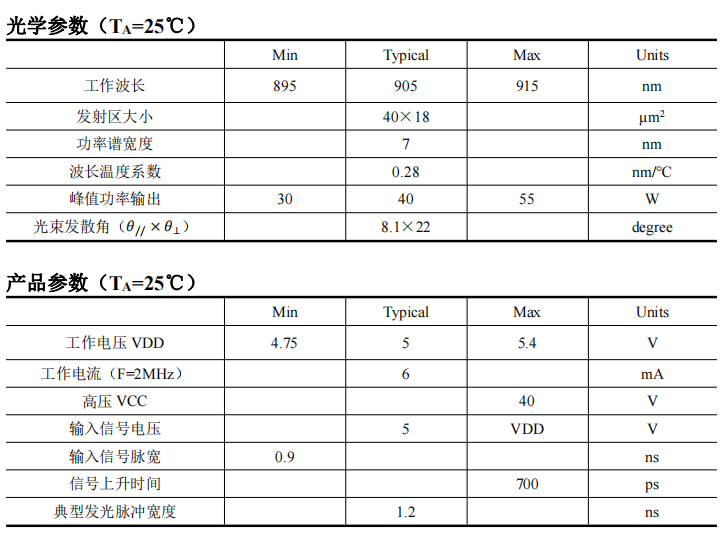

The NCD3081M laser-driven circuit micromodule is an integrated high-speed drive, the GaN HeMT and the laser diode; the minimum input signal pulse is supported by 0.9ns; the operating frequency is up to 2 MHz. NCD3081M uses SMD seals; meets SAC305 welding requirements; facilitates automated assembly of customers; product size 5 mm x 6 mm x 2.6 mm; small size; facilitates customer secondary integration; applies in areas such as laser sensors; accepts customisation design
Save to Favorites
Overview
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
