Photons
Save to Favorites

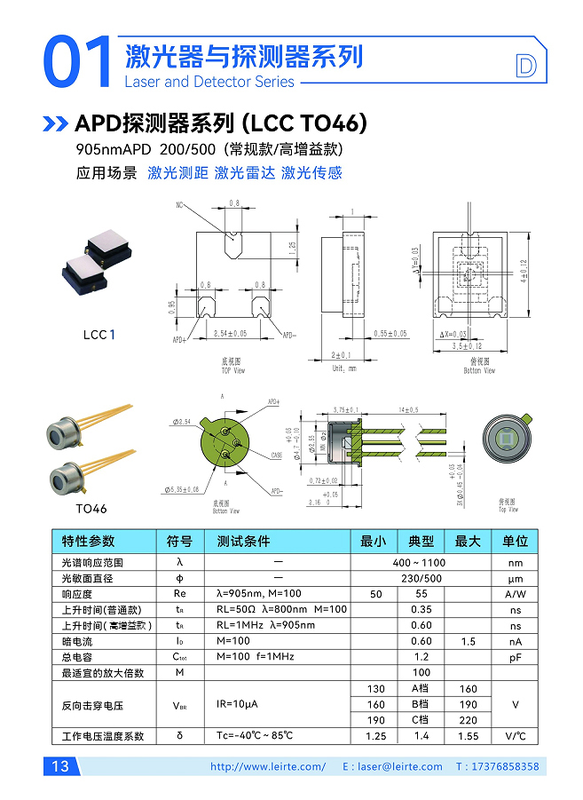

Specifications
| Parameter | Value |
|---|---|
| Wavelength | 900nm-1000nm |
| Lumonic Response Range | typep: 400 ~ 1100; condition: enter |
| Light-sensitized diameter | typ: 230/500 |
| Response | Min: 50; typ: 55; condition: Re = 905 nm, M = 100 |
| Dark current | typ: 0.60; max: 1.5; condition: M=100 |
| Total capacity | typ: 1.2; condition: Ciot M=100 f=1MHz |
| The most appropriate magnification factor | typ: 100; condition: M |
| The most appropriate magnification factor | Min: 130; type: A; max: 160 |
| Reverse shock through voltage | Min: 160; typ: B; max: 190; condition: Vex IR=10uA |
| Reverse shock through voltage | Min: 190; typ: C; max: 220 |
| Working voltage temperature factor | min: 1.25; typ: 1.4; max: 1.55; condition: ci Tc=-40°C~85°C |
Datasheet
