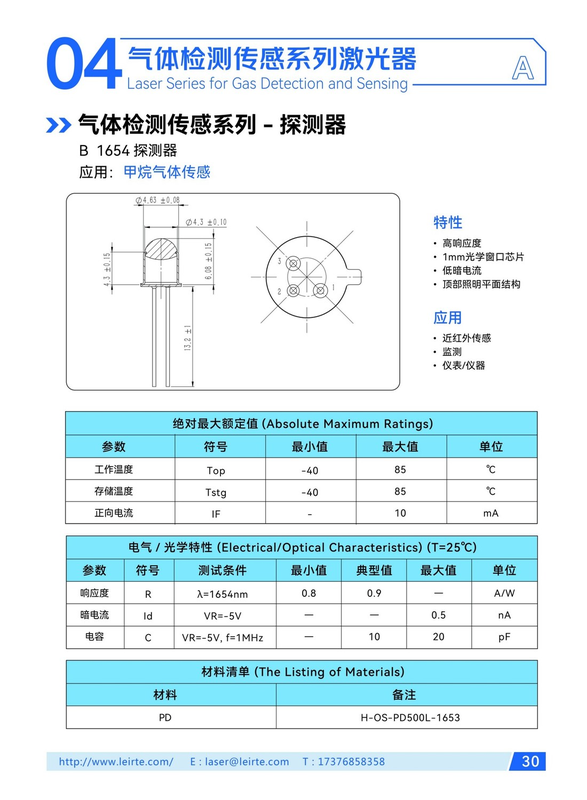

1654nm detector
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working temperature | min: Top -40; max: 85 |
| It's on its way | min: IF -; max: 10 |
| Currenting @T 25°C | Min: Electrical/ Optical/Optic Characteristics (T=25°C) |
| Response | min: 0.8; typ: 0.9; max: I; condition: enter = 1654nm |
| Dark current | max: 0.5; condition: VR=-5V |
| Electric | typ: 10; max: 20; condition: VR=-5V,f=1MHz |
| Electric | typep: Remarks; condition: materials; max: H-OS-PD500L-1653; condition: PD |
Datasheet
