8 25G miscode tester HBT1840D
8* 25G miscode test (HBT1840D) is a high-performance error analysis device with a high-speed channel of 8. The instrument can provide eight simultaneous error tests; each channel supports 10G/25G multiple speeds; there are multiple code options; user-defined code settings are supported; polarity is freely rotated; timed and continuous testing models are supported; USB and RS232 communication interfaces are provided; and operations are facilitated. Parameter characteristics; channel mode; 8 elect
Save to Favorites
Overview
Specifications

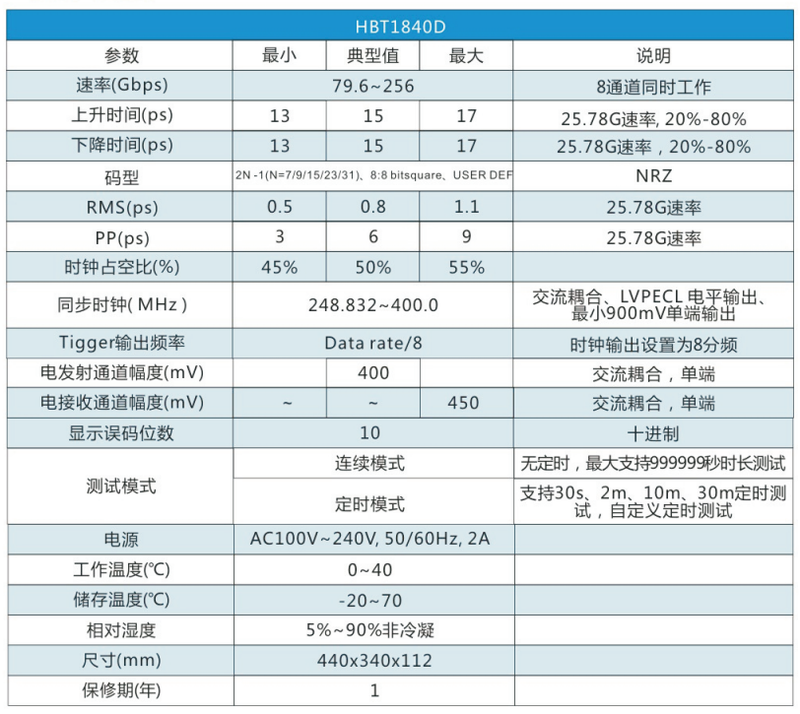

| Parameter | Value |
|---|---|
| Rate | typ: 79.6~256; 8 Channels working simultaneouslyGbps |
| Drop Time | Min: 13; typ: 15; max: 17; 25.78G, 20-80% |
| Code | typ: 2N-1（N=7/9/15/23/31）. 8:8 bitsquare、 USER DEF; NRZ |
| The clock is empty | min: 45%; typ: 50%; max: 55% |
| Sync Clock | typ: 248.832 ~400.0; Parental coupling, LVPECL-Spoon; Small 900mV single-end output |
| Output Frequency | typ: Data rate/8; clock output set to 8 minutes |
| Range of electrical launch channels | typ: 400; communication coupling, one-endmV |
| Range of electrical reception channels | Min: ~; typ: ~; max: 450; communication coupling, one-end |
| Show error digits | typ: 10;decimal; typep: continuous mode; maximum support for 999999 seconds test |
| Test Mode | typ: Time mode; supporting 30S, 2m 10m 30m timing Measure; Try, custom time test |
| Working temperature | typ: 0~40℃ |
| Insurance period | typ: 1 |
