800G Four Channel One
The light module test unit consists of an integrated test panel miscoder and a combination of heat-reducing TEC systems; to achieve ultra-low-cost; super-multi-model; super-fast light module 3-temperature performance test; integrated error instrument to support multi-rate NRZ/PAM4 signal output and reception; hardware FEC functionality; 7 TAP pre-enhancement settings; and receiver-end support for the GAIN and CTLE settings. The light mouth test panel can be changed to a different model; to match
Save to Favorites
Overview
Specifications

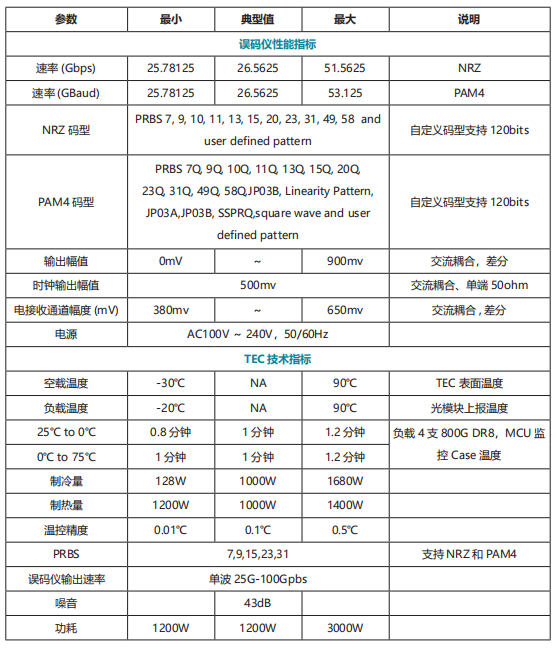

| Parameter | Value |
|---|---|
| Rate | min: 25.78125; typ: 26.5625; max: 51.5625; NRZ |
| Rate | min: 25.78125; typ: 26.5625; max: 53.125; PAM4; typ: PRBS 7, 9, 10, 11, 13, 15, 20, 23, 31, 49, 58 and |
| Code | Custom Code Support 120bits; typ: PRBS 7Q, 9Q 10Q, 11Q 13Q 15Q,200; typ: 23Q 31Q, 49Q 58QJP03B, Linearity Pattern; typ: user defined pattem; typ: defined pattemn |
| Code | typ: JP03A,JPO3B, SSPRQ.square wave and user |
| Output band value | min: 0mv; max: 900mv; communication coupling, differential |
| Clock output band | typ: 500mv;Communication coupling, single end 50ohm |
| Range of electrical reception channels | Min: 380mv; max: 650mv; communication coupling, differential |
| Airborne temperature | Min: -30C; max: 90C; TEC surface temperature |
| Load temperature | Min: -20°C; max: 90C; light module to report temperature |
| O°Cto75°C | Min: 1 minute; typ: 1 minute; max: 1.2 minutes; control Case temperature |
| Refrigeration | min: 128W; typ: 1000W; max: 1680W |
| Hot fainting | min: 1200W; typ: 1000W; max: 1400W |
| Temperature | min: 0.01C; typ: 0.1C; max: 0.5C |
| Error Code Output Rate | typep: Single wave 25G-100Gpbs |
| Noise | typ: 43dB |
| Work | min: 1200W; typ: 1200W; max: 3000W |
