800G Four Channels LPO One

Rate: Double port 400GE, 100GE/10GE, 200GE, 40GE, 25GE, GE (optional); OTU4, OTU2, OTU2e, optional Test: FEC code 802.3bs standard FEC RS (544,514) and 802.3ba standard FEC RS (528,514). FEC statistical error correction functions can be opened/off. These include FEC rectification encoding blocks, FEC non-coding blocks, prefix symbol errors based on each PCS Lane and prefix errors (optional); fgOTN Key Capability Test: • Business reliability: BER insert and analyse, map path validation: OTN edit and monitor Web flexibility: no-lost bandwidth adjustment (Hitles BWA) test • Performance accuracy measure: two-way time extension measurement and analysis

NT-400G network composite tester; high integration Ethernet test, autonomously developed for light valley interconnection; SDH; OTN multifunctional integration instrument; built-in high-capacity batteries; designed with a high-resolution touch screen of 11 inches; an innovative application product for communication testing; performance stable, safe and portable. • Various Ethernet system-level tests for telecommunications and digital equipment providers and operators Performance characteristics: Double port 400GE, 100GE/10GE; 200GE, 25GE, GE (optional); Double port OTU4/OTU2/ OTU2e; SDH (STM-1/STM-4/STM-16/STM-64), optional option to support the verification of the latest standard performance test for ITU-T fgOTN; support the simultaneous 400G QSFP-DD interface test for both ends; compatible with SR8/SR4/LR8/ER8/ER4/ER4/ER4/FR4-RJ45 interface; provide remote t-net control interfaces; remote log-in and remote access to meters

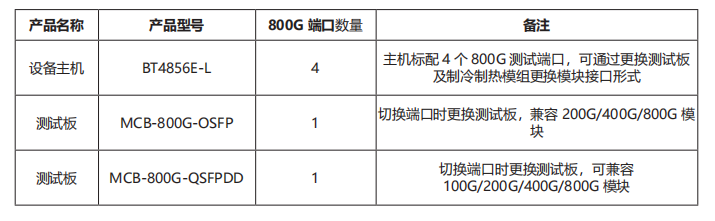

Serial number: models; description

Using M8U level high-speed plate materials; performing precision wiring; and performing high-speed signal wiring simulations; good quality of signals; capable of ensuring the consistency of the module ' s testing and its rectification; avoiding the test panel influencing the eye map indicators of the module; communication interfaces for the I2C interface. Support 1.6T/800G OSFP light module testing. 3.3V Power supply; Easy to develop tests Matching the length of the differential port line in accordance with the MSC protocol Standard and protocol 3.3V Power supply; Easy to develop tests Matching the length of the differential port in line with the MSC protocol 1.0mm high speed connector supporting 1.6T; 1,85mm high speed connector compatible with 800G

Rate: typ: 106.25; NRZGbps Rate: typ: 106.25; PAM4; typ: PRBS 7, 9, 10, 11, 13, 15, 20, 23, 31 Code: Custom Code Support 120bits; typ: PRBS 7Q,9Q, 10Q, 11Q, 13Q 15Q, 20Q,23Q; typ: and user pattern; typ: SSPRQsquare wave and user pattern

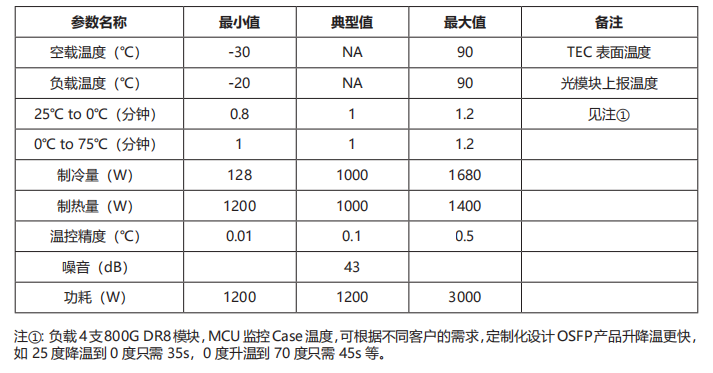

6T Two-channel One (BT28106E-H) is an integrated 1.6T error coder, MCB board, TEC temperature control unit, an error test for 2 high-speed cable or light modules at the same time; support hardware FEC functionality; support multiple speeds under NRZ/PAM4 signals in each channel; and have multiple code options; support rapid replacement of MCB boards and TED modules; compatible modules in various different formats, such as OSFP, QSFP-DD, QSFP56 and QSFP112. TEC space-borne temperatures can be up to -15°C ~ 85°C; 2 ports are independently controlled; different temperatures are supported for simultaneous testing. Integrated error coders, MMB boards, TEC temperature control units; 2 light module tests compatible with different containments can be tested at the same time; replacement of interfaces supported by typical values at speeds; 106 25 GBd; multiple test code types supported by channels configured independently for NRZ or PAM4 signal formats; hardware FEC functions supported by PRBS7Q ~PRBS58Q, SSPRQ and custom code types; PCS player of RS-FEC output polar roll-over supported by 10 TAP pre-enhancement settings supported by output range setting TEC chillers using split independent designs; replacement or maintenance of TEC chillers supported AC rapid continuous cooling; super-longer temperatures

Rate: typ: 79.6G-256G; 2 light channels working simultaneously Code: typ: 2N -1（N=7/9/15/23/31）.8:8 bit; NRZ Code: typ: square. USER DEF

The two 100G light-port error test panel (O832A) is a new high-integral product combining the error machine and the test panel; configuration of different test sub-platforms; support of the two QSFP28/SFP28 light-column test requirements; simplification of the test environment for conventional error instrument cables and test boards; and reduction of the cost of the production line testing. The instrument provides two photo-channels for error testing at the same time; each channel supports 10G/25G at multiple speeds and is open to multiple code types; supports user-defined code-type settings; output signal bands are modulated and polarity is freely rotated; supports timing and continuous testing models with communication ports; and combines use of upper slots. PRBS7, PRBS9, PRBS15, PRBS23, PRBS31, 8; 8 bit square, USER DEF speed rate; 9.9538G, 10.1376G, 10.3125G, 10.52G, 10.664G, 10.709G, 11.096G, 11.318G, 14.025G, 20.2752G, 24G, 24.33G, 25.34G, 25.78125G, 26.56G, 26G, 27.952G, 28.05G, 28.2G, 30G, 32G clock; providing a two-way hour signal; setting a trigger-hour frequency factor; output band; 400mV output polar turns; normal, flip EQ settings; EQ parameters tested

Serial number: models; description

Test plates use M7N high-speed plate materials; perform precision wiring; and imitate high-speed signal lines; signal quality; ensure consistency of module testing and rectification of signals; avoid eye map indicators for test plate impact modules; and communication interface for I2C interfaces. QSFP-DD, OSFP state and control MSA protocol compatibility meeting SFF-8636, SFF-8665, 8661, 8662, 8663 command control and secondary development routines support 7A power supply; I2C interface communications are small and flexible; user-friendly testing is easy; extension easy to meet product-related standards LED status instructions include upper GUI software radio frequency signal quality; high reliability support QSFP-DD/OSFP module 2X8 50GHz high speed connection 12V power supply
