100G light mouth error panel
The two 100G light-port error test panel (O832A) is a new high-integral product combining the error machine and the test panel; configuration of different test sub-platforms; support of the two QSFP28/SFP28 light-column test requirements; simplification of the test environment for conventional error instrument cables and test boards; and reduction of the cost of the production line testing. The instrument provides two photo-channels for error testing at the same time; each channel supports 10G/2
Save to Favorites
Overview
Specifications

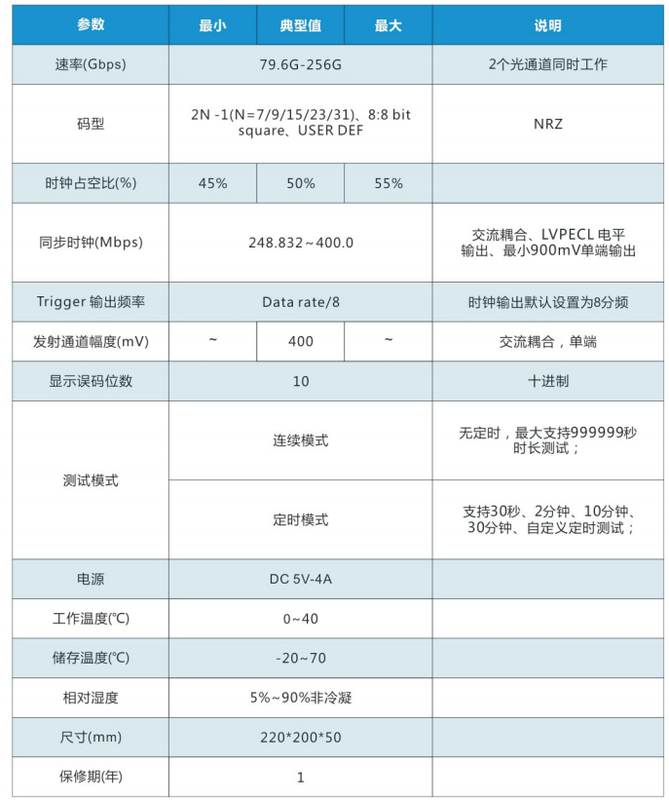

| Parameter | Value |
|---|---|
| Rate | typ: 79.6G-256G; 2 light channels working simultaneously |
| Code | typ: 2N -1（N=7/9/15/23/31）.8:8 bit; NRZ |
| Code | typ: square. USER DEF |
| The clock is empty | min: 45%; typ: 50%; max: 55% |
| Sync Clock | typ: 248.832~400.0; communication coupling, LVPECL level; Output, minimum 900 mV single-end output |
| Output Frequency | typ: Data rate/8; Clock output default set to 8 minutes |
| Range of launch channel | Min: ~; typ: 400; max: ~; communication coupling, one-end |
| Show error digits | typ: 10;decimal; typep: continuous mode;untimed, maximum support 999999 seconds; Time test |
| Test Mode | typep: timed patterns; supporting 30 seconds, 2 minutes, 10 minutes; 30 Minutes, Custom Time Test |
| Working temperature | typ: 0~40℃ |
| Insurance period | typ: 1 |
