1.6T Miscode Tester
BERTWAve E8226F is an 8-channel, high-speed, high-performance error tester designed for authentication of PAM4/NRZ signal systems at 1.6 T and below. The instrument supports the testing of errors in eight separate channels at the same time; the testing requirements for the coverage of light modules and the interconnection of chips. Channel mode; 8 Channels support PAM4/NRZ fixes and multiple Lane parallel tests; BER real-time displays of all Channels; Rapid Positioning Fragmentation Lane.NRZ Cod
Save to Favorites
Overview
Specifications

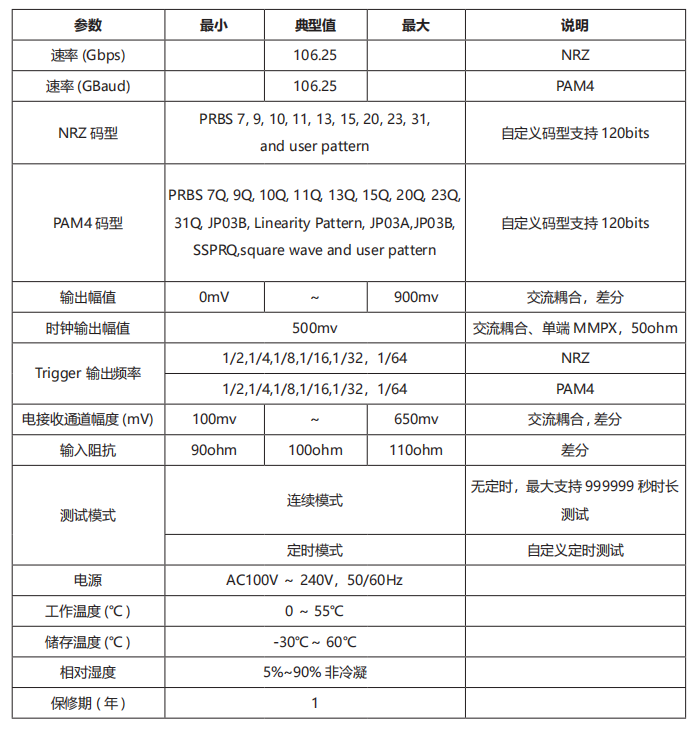

| Parameter | Value |
|---|---|
| Rate | typ: 106.25; NRZGbps |
| Rate | typ: 106.25; PAM4; typ: PRBS 7, 9, 10, 11, 13, 15, 20, 23, 31 |
| Code | Custom Code Support 120bits; typ: PRBS 7Q, 9Q, 10Q. 11Q 13Q, 15Q, 20Q 23Q; typ: and user pattern; typ: SSPRQ,square wave and user pattern |
| Code | typ: 31Q JPO3B, Linearity Patterson, JP03A, JPO 3B; custom code support 120bits |
| Output band value | Min: 0mV; typ: ~; max: 900mv; communication coupling, differential |
| Clock output band | typ: 500mv;Communicated, single-end MMPX, 50ohm; typ: 1/2,1/4,1/8,1/16,1/32, 1/64; NRZ |
| Output Frequency | typ: 1/2,1/4,1/8,1/16,1/32, 1/64; PAM4 |
| Range of electrical reception channels | Min: 100mv; max: 650mv; communication coupling, differential |
| Input Block | Min: 90ohm; typep: 100ohm; max: 110ohm; differential |
| Input Block | Unscheduled, maximum support 99999 seconds Long; typep: Continuous mode |
| Test Mode | Test; typep: Time mode; custom timing tests |
| Working temperature | typ: 0~55°C |
| Insurance period | typ: 1 |
Applications
Datasheet
Supplier Information
Related Products
-
100G miscode tester
Other
Ovlink
Rate: typ: 39.8G-120G; Channel 4 works simultaneously Drop Time: Min: 13; typ: 15; max: 17; 25.78G, 20-80% Drop time @N 7/9/15/23/31: typ: 2N-1（N=7/9/15/23/31）、88 bit square、USER
100G miscode tester (BERTWAVE E425B) is a multi-channel, high-speed, high-performance error analyser. This instrument provides a simultaneous 4-channel error-code test; each channel supports multi-velocity settings ranging from 10G to 25G; and multiple code types are available; user-defined code settings are supported; output signal band values are adjustable, polarity is freely rotated; two test modes are supported, timed and continuous; 7-inch high-resolution touch displays are provided; and operation is easy. Channel mode; 4 electrical interfaces working in parallel code type; PRBS7, PRBS9, PRBS15, PRBS23, PRBS31, 8; 8bit square, USER DEF speed rate; 9.9538G, 10.1376G, 10.3125G, 10.52G, 10.709G, 11.09G, 11.096G, 11.3118G, 14.025G, 20.2752G, 24G, 24.33G, 25.344G, 25.7125G, 26.56G, 27.952G, 28.05G, 28.2G, 30G clock; providing a two-way hour signal; setting a trigger-time frequency factor; 400mV output extreme rotation; normal, roll-over EQ settings; setting up EQ parameters and operating methods; equipment showing and operating from 7 to 7 touch screens; touching time setting; no touching operations time setting; no touching
-
800G LPO miscode tester
Other
Ovlink
Rate: min: 10.3125; typ: 26.5625; max: 56.25; NRZ Rate: min: 25.78125; typ: 26.5625; max: 57.8; PAM4; typ: PRBS7,9,10,11,13,15,20,23,31,49,58 and user Code: Custom Code Support 120bits; typ: PRBS7Q,9Q 10Q11Q13Q15Q20Q23Q31Q49Q; typ: defined pattern; typ: wave and user defined pattern
The 800G miscode tester (BERTWAve E112LQ) is an 8-channel, high-speed, high-performance miscode analyser; it provides eight-channel error tests at the same time; supports hardware FEC functions; and more representative of the actual transmission chain than software simulation FEC. Each channel supports multiple speeds under the NRZ/PAM4 signal; multiple code types are available; user-defined code settings are supported; error coding functions are supported; output signal bands can be calibrated and polarity can be freely flipped; fixed time and continuous test modes are supported; product interfaces use 1.85 mm interfaces; backends can be configured with flexibility in the form of 2*8 liners/2.92mm/2.4mm depending on the cable used. Channel mode; 8 NRZ Codes for electrical interfaces; PRBS7, PRBS9, PRBS10, PRBS11, PRBS13, PRBS15, PRBS20, PRBS23, PRBS31, PRBS49, PRBS58 PAM4 Codes; PRBS7Q, PRBS9Q, PRBS10Q, PRBS11Q, PRBS13Q, PRBS15Q, PRBS20Q, PRBS23Q, PRBS31Q, PRBS49Q, PRBS58Q, SSQ, Linearity test
-
8 25G miscode tester HBT1840D
Other
Ovlink
Rate: typ: 79.6~256; 8 Channels working simultaneouslyGbps Drop Time: Min: 13; typ: 15; max: 17; 25.78G, 20-80% Code: typ: 2N-1（N=7/9/15/23/31）. 8:8 bitsquare、 USER DEF; NRZ
8* 25G miscode test (HBT1840D) is a high-performance error analysis device with a high-speed channel of 8. The instrument can provide eight simultaneous error tests; each channel supports 10G/25G multiple speeds; there are multiple code options; user-defined code settings are supported; polarity is freely rotated; timed and continuous testing models are supported; USB and RS232 communication interfaces are provided; and operations are facilitated. Parameter characteristics; channel mode; 8 electrical interfaces working in parallel Passage mode; 8 electrical interfaces working in parallel code type; PRBS7, PRBS9, PRBS15, PRBS23, PRBS31, 8; 8 bit squaree, USERDEF speed rate; 9.9532G, 10.1376G, 10.3125G, 10.52G, 10.664G, 10.709G, 11.096G, 11.3118G, 14.025G, 20.2752G, 22G, 24G, 24.33G, 25.344G, 25.78125G, 26G, 26.56G, 27.952G, 28.05G, 28.2G, 30G, 32G hours; 4-hour signals; trigger-hour frequency frequency factor; 100 mV, 200mV, 300mV, 400mV output extreme turnover; normal turnback EQ time; EQ time available for setting EQ time test; no time frame
-
PAM4-FEC 400G Bit Error Rate Tester
Other
Ovlink
Rate: min: 24.33024; typ: 25.78125; max: 28.125; NRZ Rate: min: 24.8832; typ: 26.5625; max: 28.9; PAM4 Code: typ: PRBS7/9/10/11/15/23/31/user defined; custom code support 120bits; typ: PRBS11Q/13Q/15Q/20Q/23Q/31Q/49Q/58Q/; typ: defined
PAM4-FEC 400G Error Code Tester (BERTWAve E856F) is an 8-channel, high-speed, high-performance error analyser; this instrument provides 8 channels for error testing at the same time; supports the FEC function; supports multiple speeds under the NRZ/PAM4 signal in each channel; and has multiple code options; supports user-defined code settings; miscode insertions; output signal bands can be modifiable and polarized freely; and supports two continuous test modes. Channel modes; 8 NRZ Codes for electrical interfaces; PRBS7, PRBS9, PRBS11, PRBS13, PRBS15, PRBS16, PRBS23, PRBS31, PRBS13Q, SSPRQ, USER DEF PAM4 Codes; PRBS11Q, PRBS13Q, PRBS13Q, PRBS15, PRBS15Q, PRBS20Q, PRBS23Q, PRBS31Q, PRBS49Q, PRBS58Q, SSPRQ, Lineartest patern, JP03A, JP03B, user defined; NRZ speed rate; 24.33024 Gbps; 24.8832 Gbps; 25 Gbps; 25 78125 Gbps; 26.5625 Gbps; 27.95Gbps; 28.05 Gps.05
