Big power, multi-modular pump drive
The HPLD series is a large power pump laser drive for industrial laser applications; power currents up to 20A; power voltage up to 37.5V; support load detection; ESD protection; overflow/expression/excretion protection; products may also be designed for wind and water cool heat, depending on power demand; and industrial laser safety requirements are met. Drive current 20A; drive voltage 37.5V supports maximum 400W thermal power pump source Supports barbar / multiple mono-barrel fibre-optic coupl
Save to Favorites
Overview

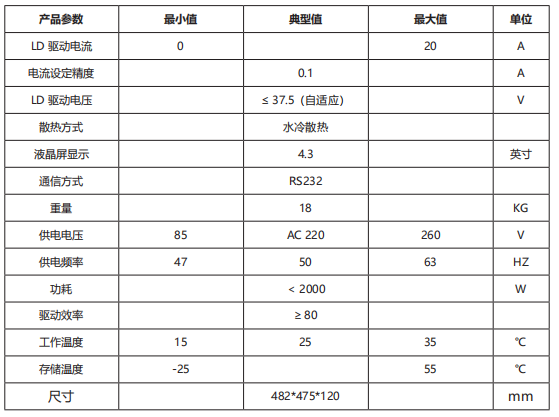

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units |
| Driver current | 0; 20; A |
| Current Precision | 0.1; A |
| Driver voltage | 37.5 (self-adaptation); V |
| Dispersion mode | It's cold and hot |
| LCD Display | 4.3; inches |
| Mode of communication | RS232 |
| Electricity voltage | 85; AC 220; 260; V |
| Electricity frequency | 47; 50; 63; HZ |
| Work | ＜2000; W |
| Driver efficiency | ≥80 |
