1060 nmASE broadband light source
The broadband light source is the base dry optic and high performance pump laser; the ASE spectrum covers 1030-1060 nm; and optimizes the light source structure; and has a high output power and a better flatness. It can be used for fibre-optic device tests, fbG rasters, engraving systems, etc. RS232 interfaces and uploading software are available; light source module status monitoring is facilitated. Power is stable, spectra is flat, remotely monitored
Save to Favorites
Overview

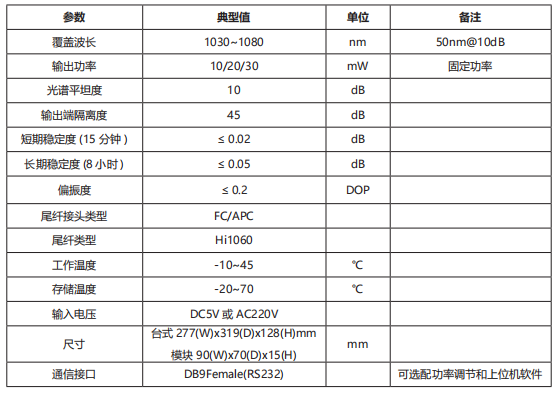

Specifications
| Parameter | Value |
|---|---|
| Overwrite wavelength | typ: 1030~1080; condition: 50nm@10dB |
| Output Power | typep: 10/2030; condition: fixed powermW |
| Short-term stability | typ: ≤0.02dB |
| Long-term stability | typ: ≤0.05dB |
| Trigger | typ: ≤0.2 |
| Osteoporosis | typ: FC/APC |
| Enter voltage | typ: DC5V or AC220V |
| Enter voltage@W | typ: Desktop 277(W)x 319(D)x128(H)mm |
| Dimensions | typ: Module 90(W)x70(D)x15(H) |
Applications
Datasheet
