High-speed fibre-optic grid modem module
High-speed fibre-optic scalder modules; high-resolution spectroscopy analysis techniques; C+L wavelength coverage; support for real-time collection at kHz level; easy access to large-scale FBG arrays, high-speed, high-precision resolution. It can provide you with stable, accurate, real-time fibre-optic sensor solutions, whether in structural health monitoring, smart manufacturing, or industrial robotics. High resolution; wavelength proposed accuracy better than 20 pm; meeting precise monitoring
Save to Favorites
Overview

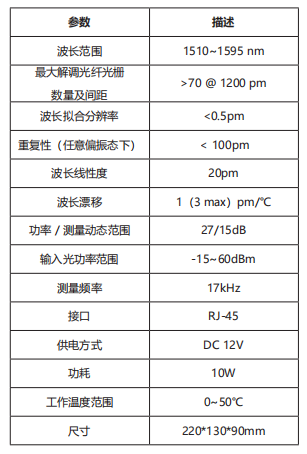

Specifications
| Parameter | Value |
|---|---|
| Maximum number and spacing of decompressed fibre-optic rasters | >70 @ 1200 pm |
| Wavelengths to combine resolution | <0.5pm |
| Wave long linearity | 20pm |
| Wave long drift | 1（3 max）pm/℃ |
| Power measure dynamic range | 27/15dB |
| Enter light range | -15~60dBm |
| Measurement frequency | 17kHz |
| Interface | RJ-45 |
| Power supply | DC 12V |
| Working temperature range | 0~50℃ |
Applications
