40G high-speed light detection module
The PD-1040 40G high-speed light detection module uses high performance 40GHz PIN detector; single-modular fibre co-entry; 2.92 connector output; high multiplier, high sensitivity and flattensity characteristics; internal lithium battery power; support to typeC charge; and battery low-capacity alert. The main applications are in the areas of high-speed fibre-optic transmission systems, ROF and fibre-optic sensor systems. Spectra range; 1100 ~1650 nm 3dB bandwidth up to 34GHz low dark currents wi
Save to Favorites
Overview

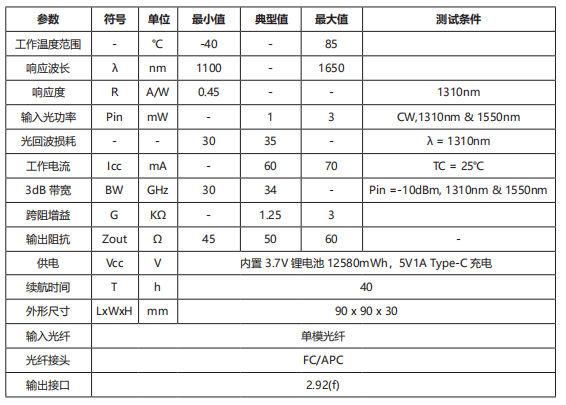

Specifications
| Parameter | Value |
|---|---|
| Working Temperature Parade | min: -40; max: 85 |
| Response wavelength | min: 1100; max: 1650 |
| Response | min: 0.45; max: 1310nm |
| Enter light power | typ: 1; max: 3 CW, 1310nm & 1550nm |
| Light return wave loss | min: 30; typ: 35; max: enter = 1310 nm |
| Work current | typ: 60; max: 70 TC= 25°C |
| bandwidth | min: 30; typ: 34; max: Pin =-10dBm, 1310nm & 1550nm |
| Cross-Restruction Gains | typ: 1.25; max: 3 |
| Output Interdiction | min: 45; typ: 50; max: 60 |
| Electricity | max: incorporated 3.7V lithium batteries 12580mwh, 5V1A Type-C charge |
| Time of renewal | max: 40 |
| Outer Size | max: 90 x 90 x 30 |
| Input Fibre | max: Monomodule fibre |
| Fibre interface | max: FC/APC |
| Output Interface | max: 2.92（ |
