AQE Series - 180 mJ Semiconductor Pump Pump Pump Active Q Laser
The AQE series RealShock Pump Pumps Active Q Laser; Multi-directional Equilibrium Pumping Pumps using self-developed semiconductor stacks; Active Q Laser Output that achieves high energy, high stability, even light. Laser convulsions are sealed; integrated power-controlled circuits are widely used in biomedical, radar ranging, precision processing, scientific research
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1~10Hz |
| Power stability | ≤8% |
| Horizontal Full-Angle Divergence (1/e²) | ≤4 |
| Vertical Full-Angle Divergence (1/e²) | ≤4 |
| Luminous diameter | 6 |
| Refrigeration mode | It's cold |

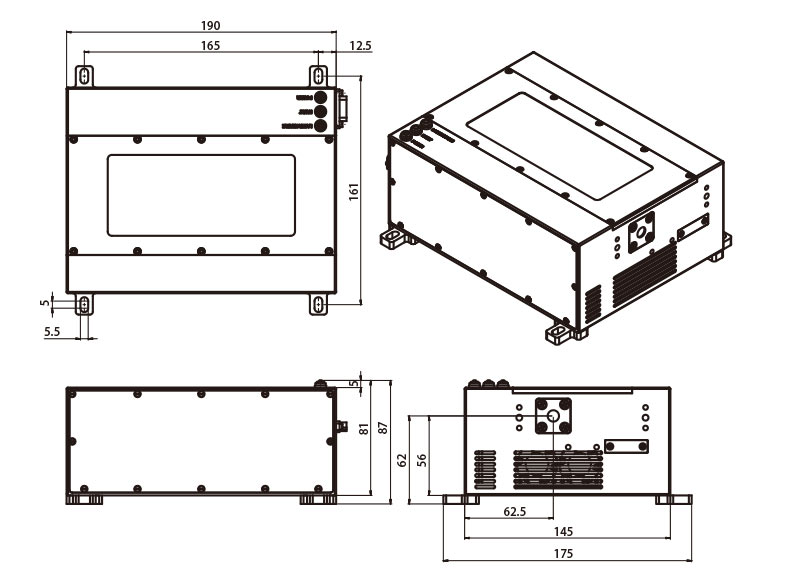

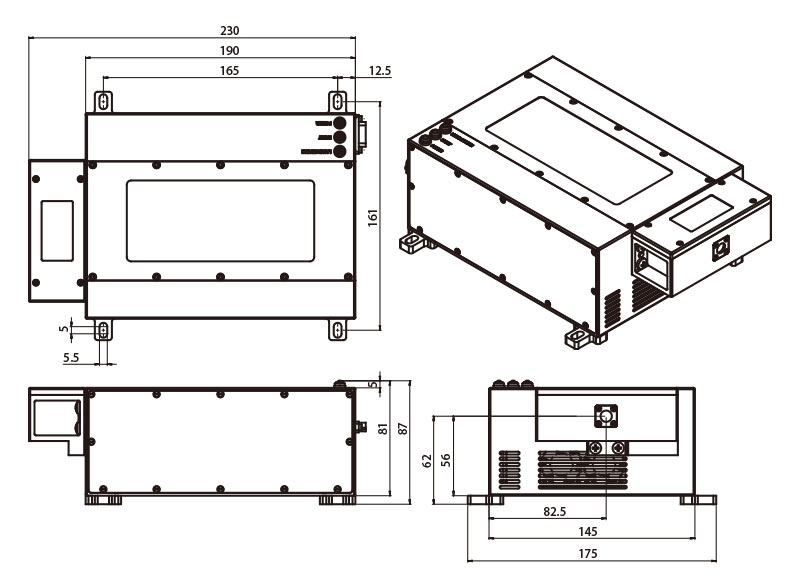

| Laser Head Size | 160×85×230 |
| Wavelength | 1064; 532; 355; 266nm |
| Single pulse energy | 180; 100; 50; 20 |
| Electricity input | 24VDC |
| Peak effort | 200W |
| Trigger Mode | Internal/external trigger |
