AQE series - 100 mJ semiconductor pump active Q laser
The AQE series RealShock Pump Pumps Active Q-modulation lasers; evenly pump pumps using self-developed peak power semiconductor stacks; and active Q-modulation laser outputs that achieve high energy, high stability and low power consumption. Laser convulsion cavities are sealed; power control Louis is integrated; customized functionality is expanded; and is widely used in biomedical, radar ranging, precision processing, scientific research
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Repeat frequency | 1~20Hz |
| Power stability | ≤3% |
| Horizontal Full-Angle Divergence (1/e²) | ≤3 |
| Vertical Full-Angle Divergence (1/e²) | ≤3 |
| Luminous diameter | 44 |
| Refrigeration mode | It's cold |

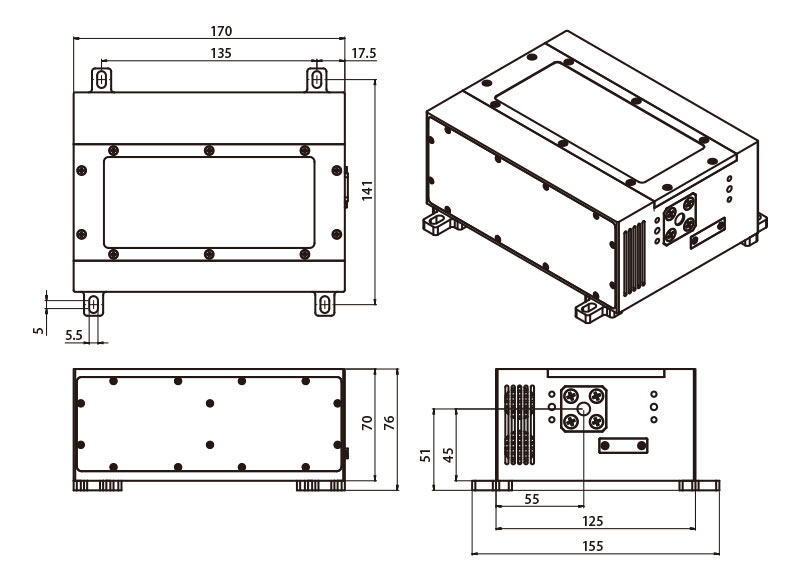

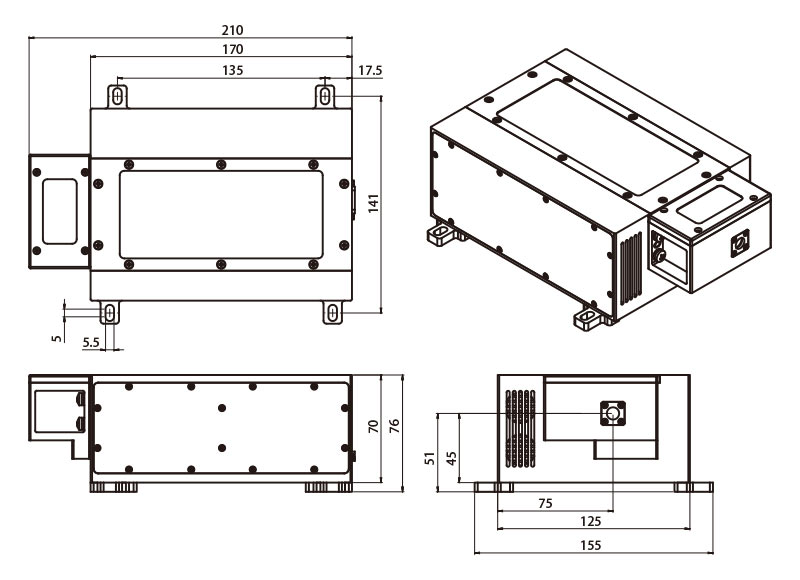

| Laser Head Size | 125×70×170; 125×70×210 |
| Wavelength | 1064; 532; 355; 266nm |
| Single pulse energy | 100; 50; 25; 10 |
| Electricity input | 24VDC |
| Peak effort | 150W |
| Trigger Mode | Internal/external trigger |
