NLSO series single-mode narrow-width laser module
The NLSO series single-mode narrow-wire laser module is a distinctive product of almond forest wisdom; equipped with a standard input output interface; conveniently embedded user-wide systems; and very stable narrow-wire laser output. The product is built into lasers and chillers to control circuits; to give the product good spectrometry and power stability. Customization and secondary development services are available on request from clients. At the same time; we can provide RL-RP series of La
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 100; 300mW |
| He's on the wavelength | ±0.5nm |
| Width | <0.1nm |
| Power stability@4h | <3%(RMS); ±2%(P-P) |
| Wavelength stability@4h | ±5 pm; ±7 pm |
| Central wavelength | 532; 785; 1064nm |
| Power adjustment range | 0~100% |
| Preheat time | 15min |
| System usage | <5W |
| System Weight | <150g |

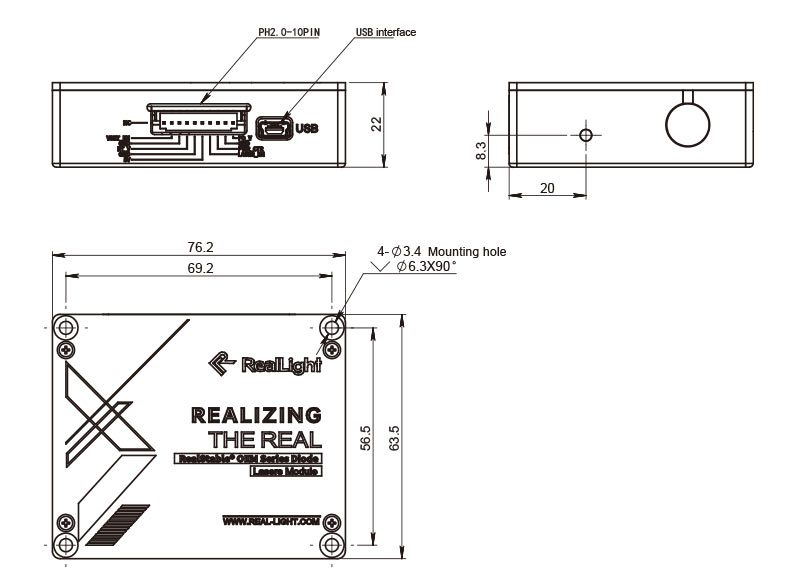

| System Dimensions | 76.2×63.5×22mm |
| Border Model Impression Ratio | 35~45dB |
Applications
Key Features
Datasheet
