Multi-mode narrow-wire laser module of the NLMO series
The NLMO series RealStable Multi-mode narrow-line wide laser module is a unique product of almonds; equipped with a standard input output interface; easily embedded user-wide systems; and achieving very stable narrow-line wide laser output. The product is built into lasers and chillers to control circuits; to give the product good spectrometry and power stability. Customization and secondary development services are available on request from clients. At the same time; we can provide RL-RP series
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 100; 500; 600; 800mW |
| He's on the wavelength | ±0.5nm |
| Width | <0.1; <0.3nm |
| Wavelength stability@4h | ±5 pm; ±7 pm |
| Power stability@4h | <3%(RMS); ±2%(P-P) |
| Central wavelength | 532; 638; 785; 808; 830; 981; 1064nm |
| Power adjustment range | 0~100% |
| Preheat time | 15min |
| Fibre interface | FC/PC, SMA905 |
| Fitable fibres | 105 μm, 0.22 NA |
| System usage | <5W typ |
| System Weight | <150g |

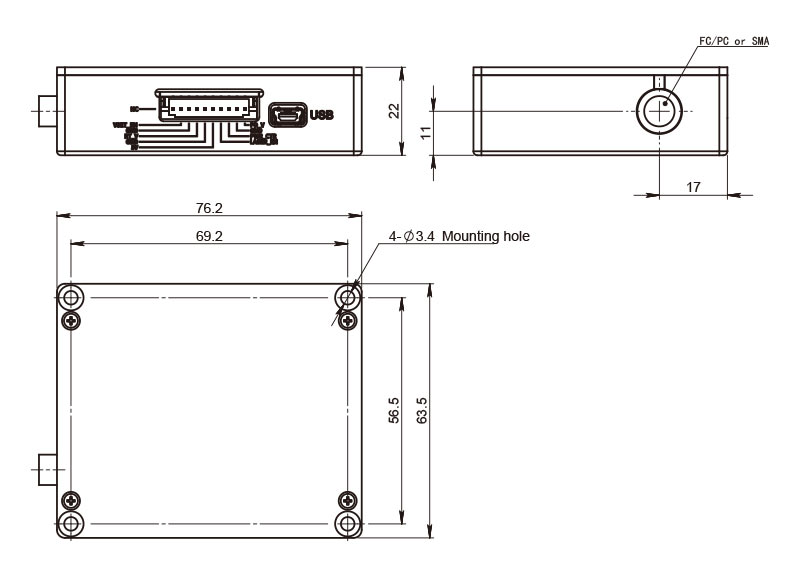

| System Dimensions | 76.2×63.5×22mm |
| Border Model Impression Ratio | >35; >40 |
