Multimodel semiconductor laser module of the AWMO-A series
The multi-modular semiconductor laser module of the AWMO-A series is a unique product of apricot light; it is equipped with a standard input output interface; it is easily embedded in a user-wide system; and it achieves very stable laser output. The product is built into lasers and chillers to control circuits; to give the product good spectrometry and power stability. Customization and secondary development services on client request
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 100; 130mW |
| He's on the wavelength | ±10nm |
| Width | <3nm |
| Power stability@4h | ±2%(P-P) |
| Fitable fibres | 105/0.22 |
| Fibre interface | FC/PC, SMA905 |
| Central wavelength | 405; 450; 520; 638; 650nm |
| Power adjustment range | 0~100% |
| Preheat time | 15min |
| System usage | <5W typ |
| System Weight | <150g |

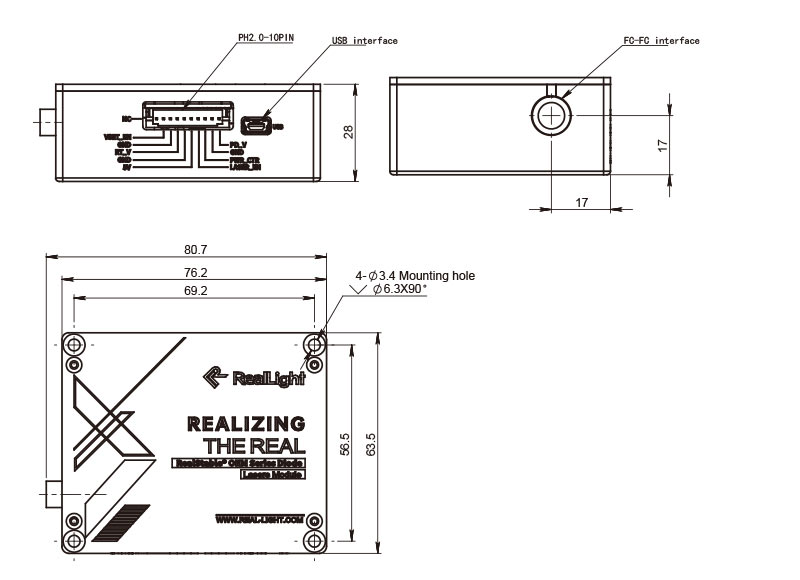

| System Dimensions | 76.2×63.5×28mm |
