NLM series multi-modular two-wave narrow-wire laser
The NLM series RealStable, multi-mode two-wave narrow-wire laser is a patented product of almonds. This series of products achieves a two-way narrow-wire, steady wavelength laser switching output; and meets the special applications of the Laman spectral industry. Laser contains the upper control software; monitors the condition of the laser; and supports online updates of laser solids. More wavelength combinations acceptable for customisation
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 500/500; 500/800mW |
| The wavelength is different | ± 0.5 (each wavelength)nm |
| Width | < 0.1 (per wavelength)nm |
| Wavelength stability@4h | ±7 pm |
| Power stability@4h | ±2%(P-P) |
| Border Model Impression Ratio | 40dB |
| Central wavelength | 784/785; 785/1064nm |
| Power adjustment range | 0~100% |
| Preheat time | 15min |
| Modem Input | Simulation signal 0-5V |
| Fibre interface | FC/PC, SMA905 |
| Fitable fibres | 105 μm, NA0.22 |
| System usage | <20 W Typ |
| System Weight | 1.2kg |

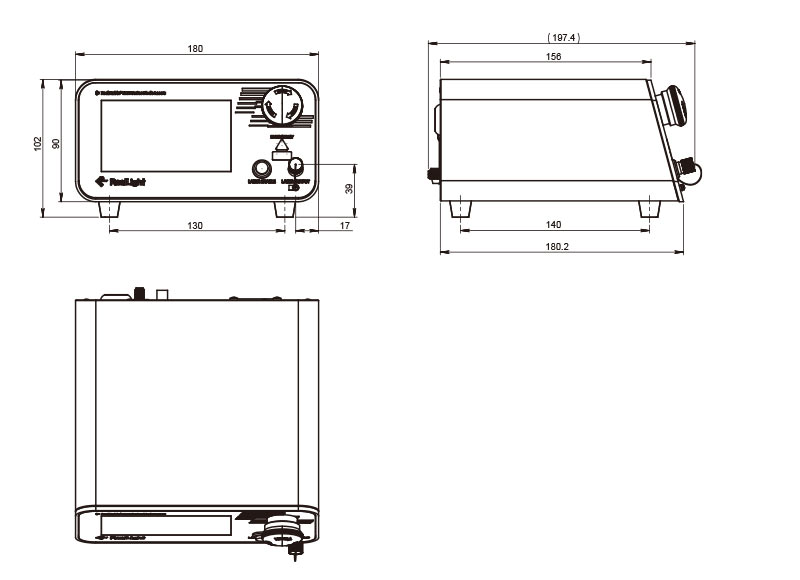

| System Dimensions | 180×102×180.2mm |
Applications
Key Features
Datasheet
