MT ferrule
High density Fiber pitch: 0.25mm Mold marks to indicate fiber type and ferrule grade Pre-angled SM MM MT low Loss optimized for 10G, 40G, 100G and 400G applications SM MT low loss meets IEC 61755-3-31 Grade B requirements With exceptional environmental stability after annealing
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| MM Standard-Fiber Hole Diameter | 0.125+0.002/-0mm |
| MM Standard-Guide Pin Hole Diameter | 0.55±0.001mm |
| MM Standard-Insertion Loss | Typical=0.25 Max≤0.5dB |
| MM Low Loss-Fiber Hole Diameter | 0.125+0.002/-0mm |
| MM Low Loss-Guide Pin Hole Diameter | 0.55+0/-0.001mm |
| Insertion Loss | Typical=0.12 Max≤0.35dB |
| SM Standard-Fiber Hole Diameter | 0.125+0.0013/-0mm |
| SM Standard-Guide Pin Hole Diameter | 0.55+0/-0.001mm |
| SM Standard-Insertion Loss | Typical=0.25 Max≤0.7dB |
| SM Low Loss-Fiber Hole Diameter | 0.125+0.0009/-0mm |
| SM Low Loss-Guide Pin Hole Diameter | 0.5490+0.0006/-0mm |
| Insertion Loss | Typical=0.12 Max≤0.35dB |
Datasheet
Supplier Information
Related Products
-
MT ferrule
Ferrules
Www8
MM Standard-Fiber Hole Diameter: 0.125+0.002/-0mm MM Standard-Guide Pin Hole Diameter: 0.7±0.001mm MM Standard-Insertion Loss: Typical=0.25 Max≤0.5dB
High density Fiber pitch: 0.25mm Mold marks to indicate fiber type and ferrule grade Pre-angled SM MM MT low Loss optimized for 10G, 40G, 100G and 400G applications SM MT low loss meets IEC 61755-3-31 Grade B requirements With exceptional environmental stability after annealing
-

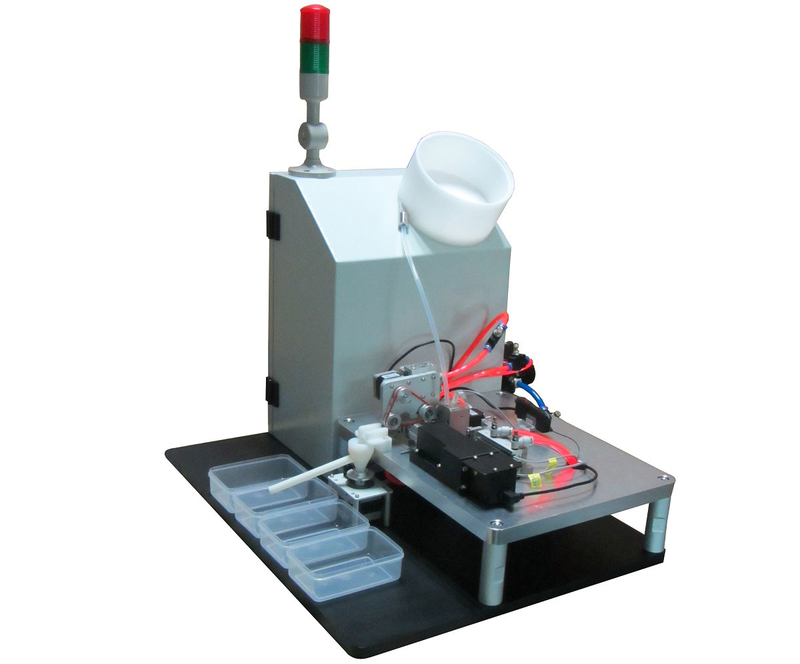

fully automatic ferrule inspection instrument Saturn-AT
Ferrules
Hzqiyuetech
The Saturn-AT fully automated core concentrator Saturn-AT concentricity detector is a fully automated coronary core detector designed for autonomous development by all-technologies;
-

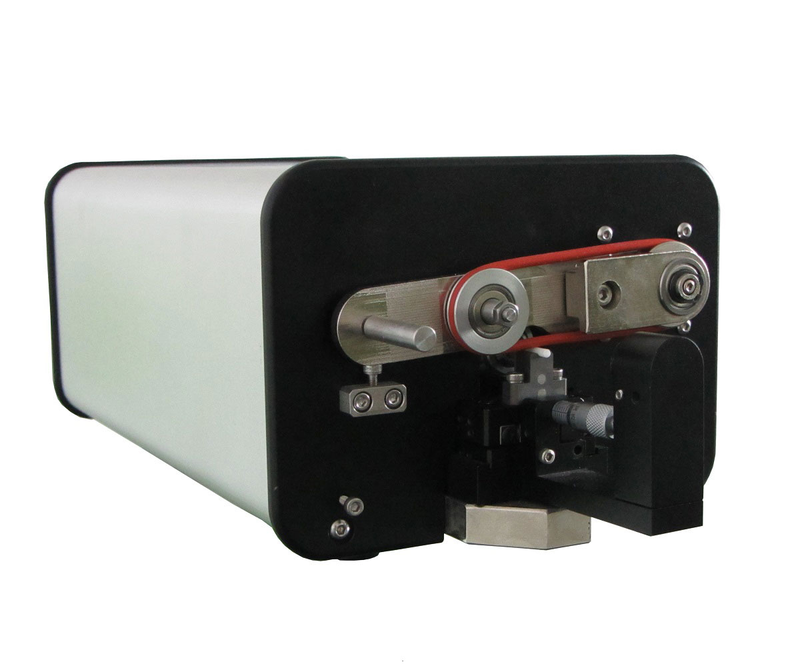

manual ferrule inspection instrument Saturn-ML
Ferrules
Hzqiyuetech
The Saturn-ML hand-input concentricity detector Saturn-ML concentricity detector is a self-researched manual material developed and produced by Zilong Technologies;
-

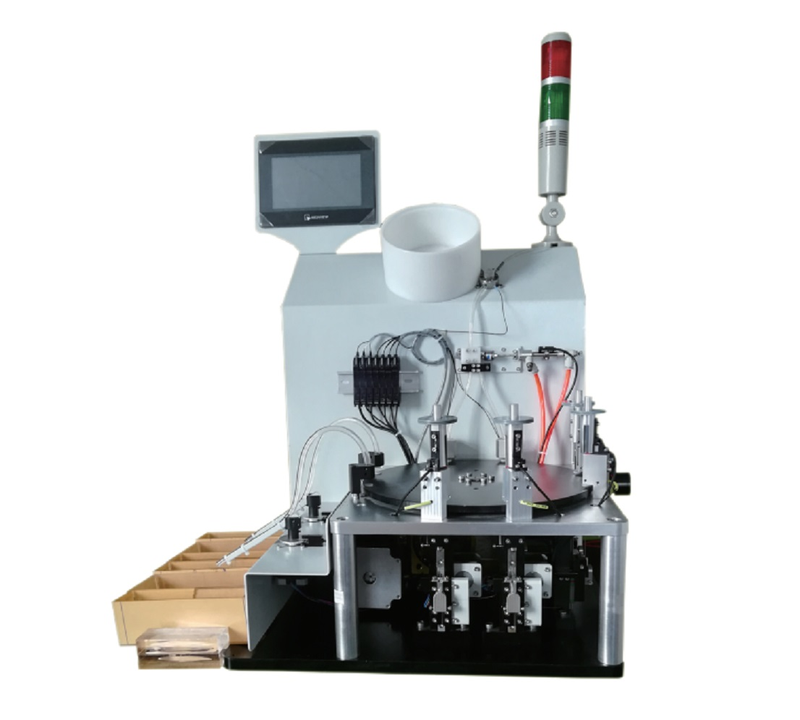

Ceramic Ferrule Inner-Diameter Sorting Machine Venus-AT
