Linear Positioning Stage

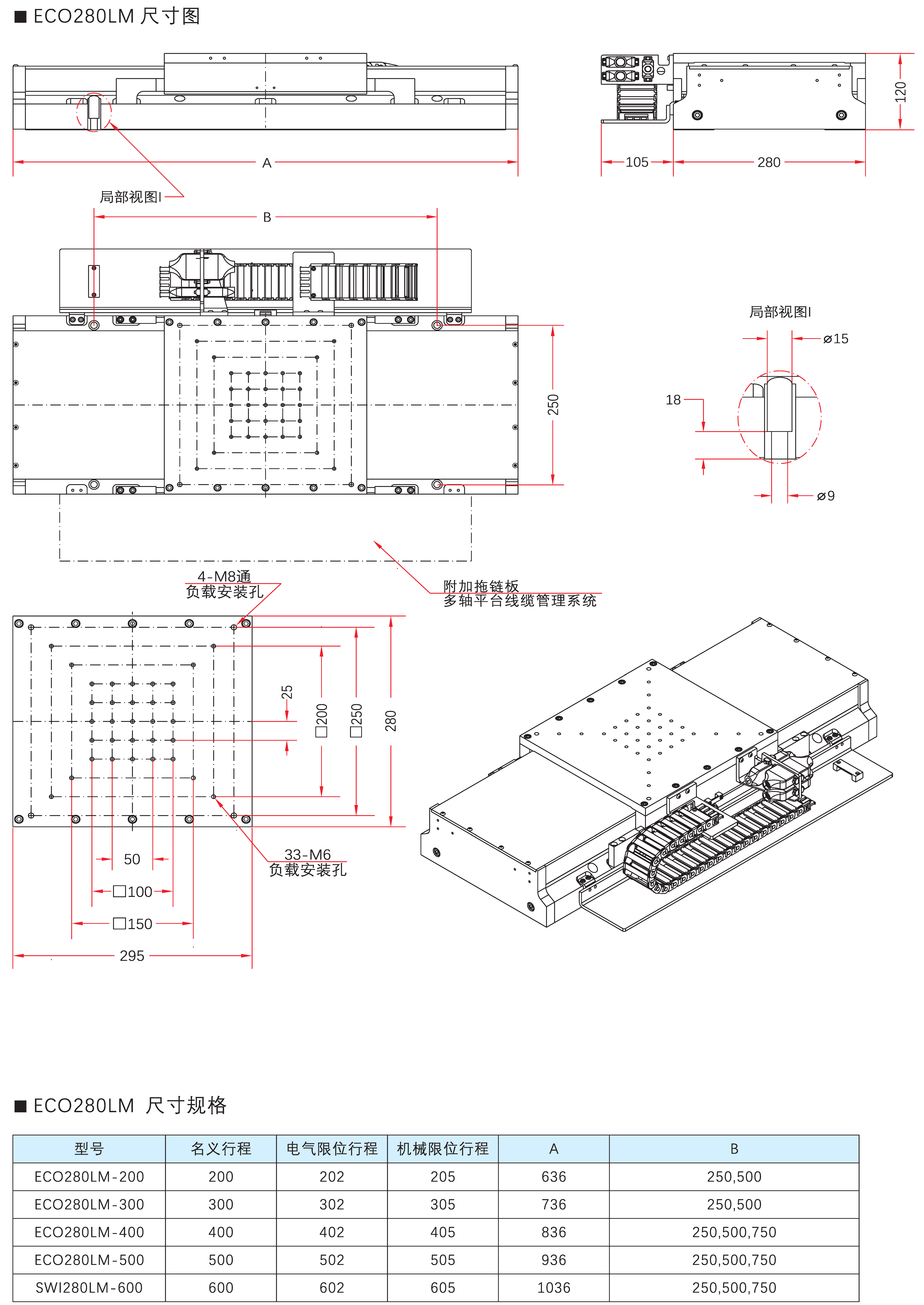

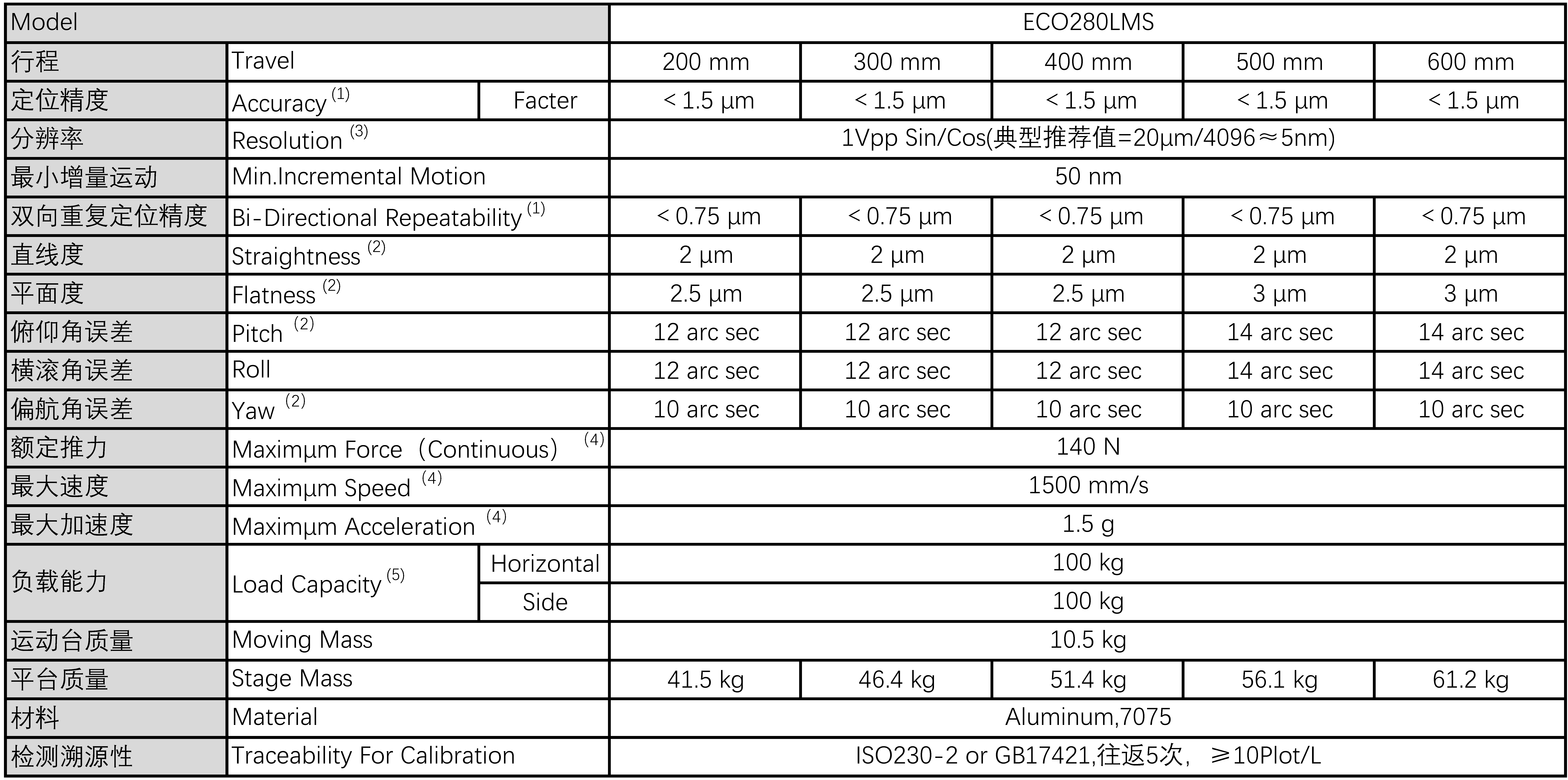

The ECO280LM series direct drive stage is a sub-micron direct drive stage offering high accuracy, excellent mechanical repeatability and a side-sealing structure, achieving nanometer-level minimum incremental motion and sub-micron bi-directional repeatability at low cost. Bi-directional repeatability is better than 0.75 μm, with positioning accuracy of <1 μm after linear error compensation. It uses a specially customized linear motor as the drive element, which features extremely low cogging and normal attractive force, high thrust and smooth motion, combining sub-micron positioning capability with outstanding high dynamic response. The stage uses a long-life precision linear guideway bearing system combined with a specially designed linear-friction side-sealing structure, which effectively prevents process debris, dust and obvious particles from entering the stage and improves product service life; an optional positive-pressure air purge system is available. The product is available in five models with design travels from 200 mm to 600 mm, speeds up to 1500 mm/s, and a complete single-axis/multi-axis cable management solution.
Save to Favorites
Overview
Applications
Key Features
Datasheet
