Multi-Beam Beamsplitter Prism
Multi-Beam Beamsplitter Prism, 8, 12, 16 32. 1, Beamsplitter Prism Optically Contacted ( ), Damage Threshold
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | JGS1、H-K9L |
| Wavelength | 532,633,780,808nm |

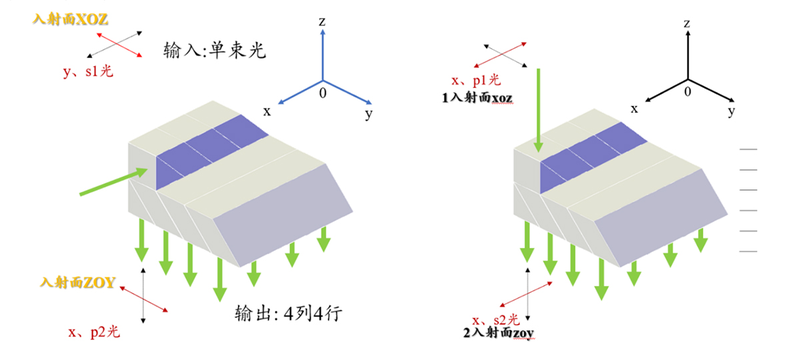

| Outgoing beam | 8 bundles, 12 bundles, 16 bundles, 32 bundles |
| Beam deviation angle | <1′ |
| Bonding method | Deepening photo glue |
