MAP900-MBR-FA MT-FA Tester
MAP900 -MBR MT-FA Device, Test System, Detection Technology, 400G/800G/1.6T Module, Device
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supported Channels | 12 |
| Supported Channels | 24 |
| Supported Channels | 32 |
| Supported Channels | 48 |
| Optical Power Meter | 外置探头式积分球 |
| Optical Power Meter | Detector |
| Detector | (InGaAs) |
| Wavelength | 850-1700 nm |
| Power | +20~-55dBm( )/+5~-75dBm(InGaAs PIN) |
| Wavelength | 1310nm &1550nm |
| Light Source | FP Laser |
| Light Source | +0.01dB /15min +0.05dB /8hour |
| Display Accuracy | 0.01dB |
| Fiber Core | 9/125 |
| Return Loss Test Range | 10dB ~70 dB |
| Return Loss Test Accuracy | +1dB(10~60dB) |
| Wavelength | 850nm |
| Light Source | LED |
| Light Source | ±0.01dB /15min ±0.05dB /8hour |
| Return Loss Test Range | 10dB ~50dB |
| Return Loss Test Accuracy | ±1dB (10~40dB) |
| Optical Output Interface | FC/APC |
| Test Efficiency | 3 /12; Wavelengths |
| Number of Channels | 24/48 |
| Polarity Detection | 650nm Red |
| Communication Port | RS232 |
| Operating System | WINDOWS 10/11 |
| Power | 150W |
| Startup Stabilization Time | 15min |
| Recommended Calibration Interval | 18 |
| Dimensions | 3U450420mm |
| Whether to bring electric platform | Does not include electric platform |
| Whether to bring electric platform | Including electric platform |

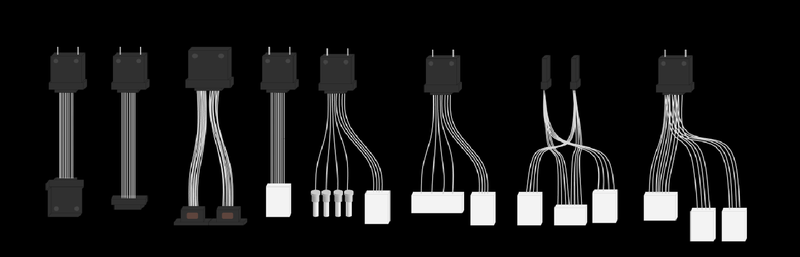

| Support type | MPO/MT/FA/Jumper/CS/sN and other tests |
| linearity | +0.04dB(+20~-35dBm)/+0.08dB(-35~-45dBm)/+0.2dB(-45--55dBm) |
| Applicable fiber types | Standard single-mode fiber and multi-mode fiber |
| Circular Flux Standard | Don't pay attention |
| Circular Flux Standard | Complies with IEC-61280-4-1 |
