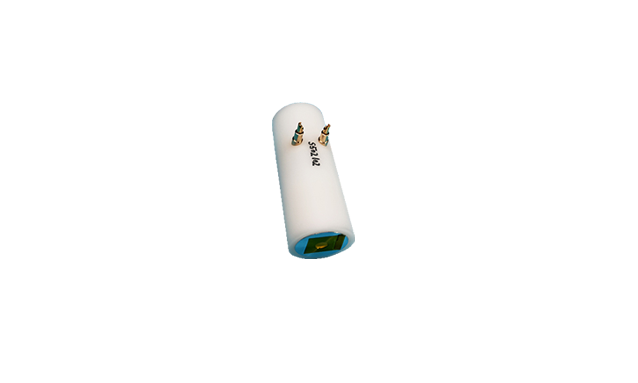

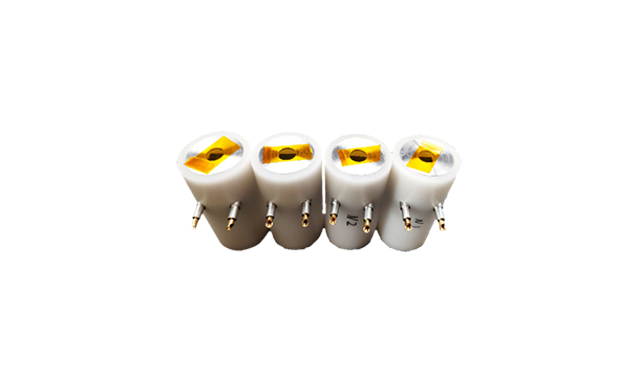

LGS Electro-Optic Q-Switch
LGS Electro-Optic Q-Switch LGS Silicon Q. LGS Series Q. DKDP RTP Li
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Lattice Parameter | a=b=7.453A. c=6.293A |
| Transmission Band | 242~3200nm |
| Refractive Index | 1.89nm |
| Electro-Optic Coefficient | Y₄₁=1.8pm/V, Y₁₁=2.3pm/V |
| Electrical Conductivity | 1.7×1010 Ω•cm |
| Crystal Size | 2 x 2~8 x 8 mm |
| Housing Dimensions | 20-35 mm |
| Clear Aperture | 8mm-20mm |
| Transmitted Wavefront Distortion | λ/6 @ 633nm |
| Overall Transmittance | ＞98% @ 1064nm |
| Electrode Isolation | <1 |
| Surface Quality | 20/10 40/20 |
| Coating | AR/AR @ 1064nm R<0.2% |
| Damage Threshold | 900MW/cm² 10ns 10 Hz 1064nm |
