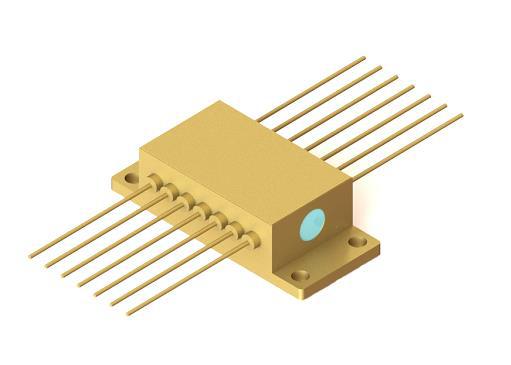

K785AFLWN-0.600W 785nm 600mW Butterfly Packaged Semiconductor Laser
The K785AFLWN-0.600W from BWT is a 785nm 600mW butterfly-packaged fiber-coupled semiconductor laser. It delivers 600mW output power through a 105μm core / 125μm cladding, 0.22NA fiber with an FC connector, featuring a narrow spectral width (<0.1nm FWHM) and low wavelength drift (0.01nm/°C). The 14-pin butterfly package integrates a TEC, thermistor and monitor photodiode (PD) for precise temperature control and stable power monitoring, ensuring reliable performance in demanding applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (W) | 0.6(Min.) |
| Center Wavelength (nm) | 785±0.5 |
| Spectral width (FWHM) (nm) | <0.1 |
| Wavelength Temperature Coefficient (nm/°C) | 0.01 |
| Electro-Optical Conversion Efficiency (%) | 30 |
| Threshold Current (A) | 0.4 |
| Operating Current (A) | 1.1(Typ.)/1.5(Max.) |
| Operating Voltage (V) | 1.9(Typ.)/2.2(Max.) |
| Slope Efficiency (W/A) | 1.0 |
| Fiber core diameter (μm) | 105 |
| Cladding Diameter (μm) | 125 |
| Numerical Aperture (NA) | 0.22 |
| Fiber Length (m) | 1 |
| Fiber Jacket (mm) | 0.9 |
| Bending Radius (mm) | ≥50 |
| Fiber Connector | FC |
| Thermistor Resistance (KΩ)/β(25°C) | 10±3%/3477 |
| PD Monitor Current (μA) | 300~500 |
| TEC Max Current (A) | 2.2 |
| TEC Max Voltage (V) | 8.75 |
| ESD (V) | ≤500 |
| Storage Temperature (°C) | -20~70 |
| Soldering Temperature (°C) | ≤260 |
| Soldering Time (sec) | ≤10 |
| Operating Temperature (°C) | 20~30 |
| Relative Humidity (%) | 15~75 |

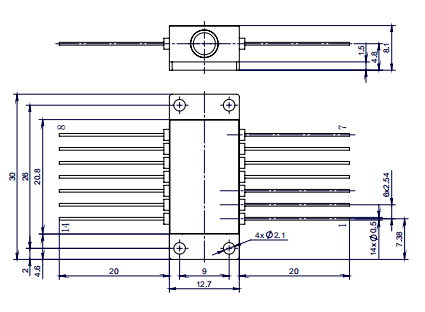

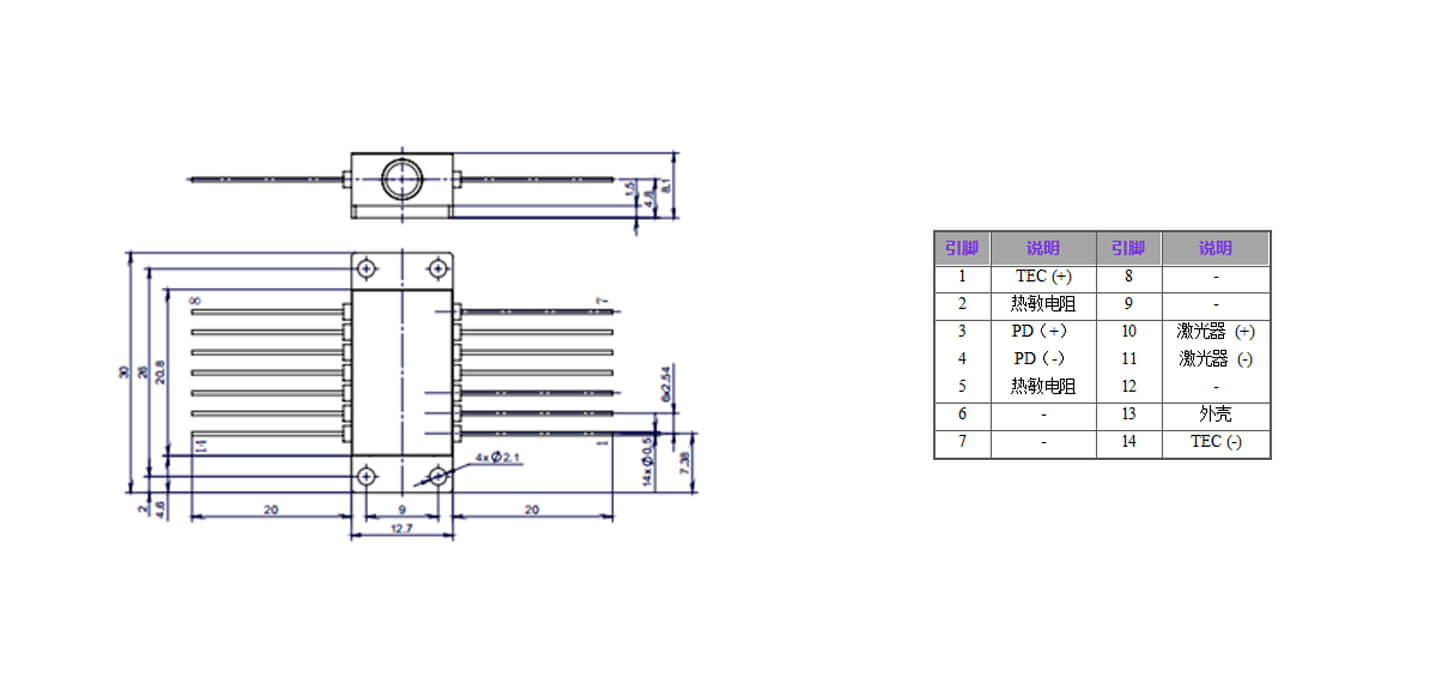

| Package Type | 14-Pin Butterfly |
