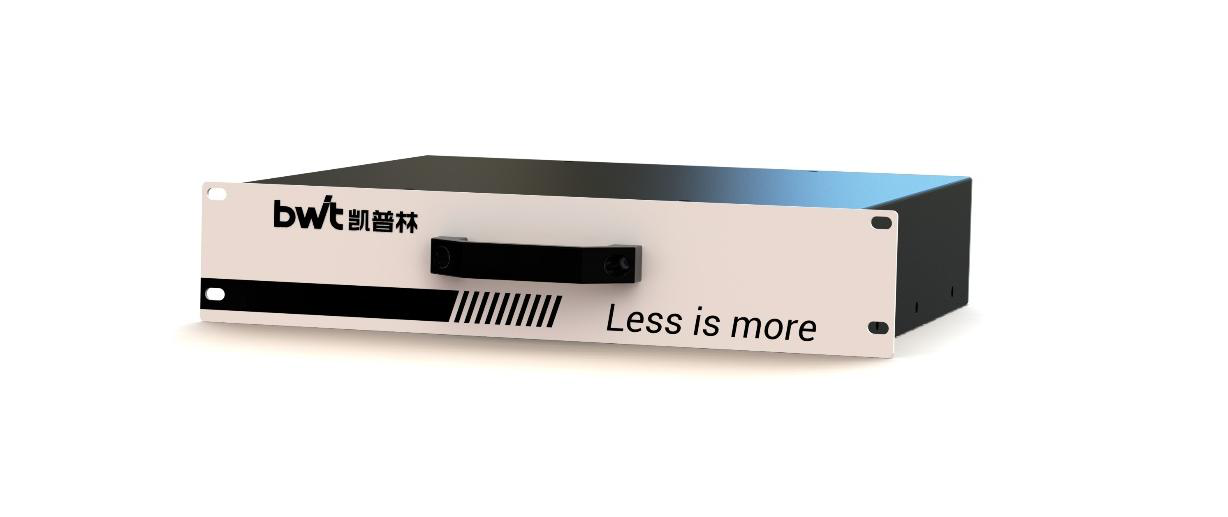

500W High Power Semiconductor Laser (BDL-CW500)
The BWT 500W high-power semiconductor laser (model BDL-CW500) delivers 500W output at 915nm/976nm through a 220μm fiber with a QBH connector. Compared with traditional lasers, it offers higher electro-optical conversion efficiency, lower power consumption, a compact structure, and easy operation. Thanks to its flexible fiber-coupled laser output, it can be conveniently integrated into various system equipment. It supports both continuous and modulated operation modes with a maximum modulation frequency of 5kHz, power adjustment from 10% to 100%, and high power stability, making it ideal for metal welding, industrial cladding, quenching, material processing, and laser research. BWT's professional laser application engineers are dedicated to providing complete laser system solutions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 500W |
| Wavelength | 915nm/976nm |
| Output Fiber Core Diameter | 220μm |
| Cable Length | 10m or Customized |
| Beam Delivery | QBH |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Adjustment Scope | 10%-100% |
| Modulation Frequency | 5kHz |
| Guide Beam | Red |

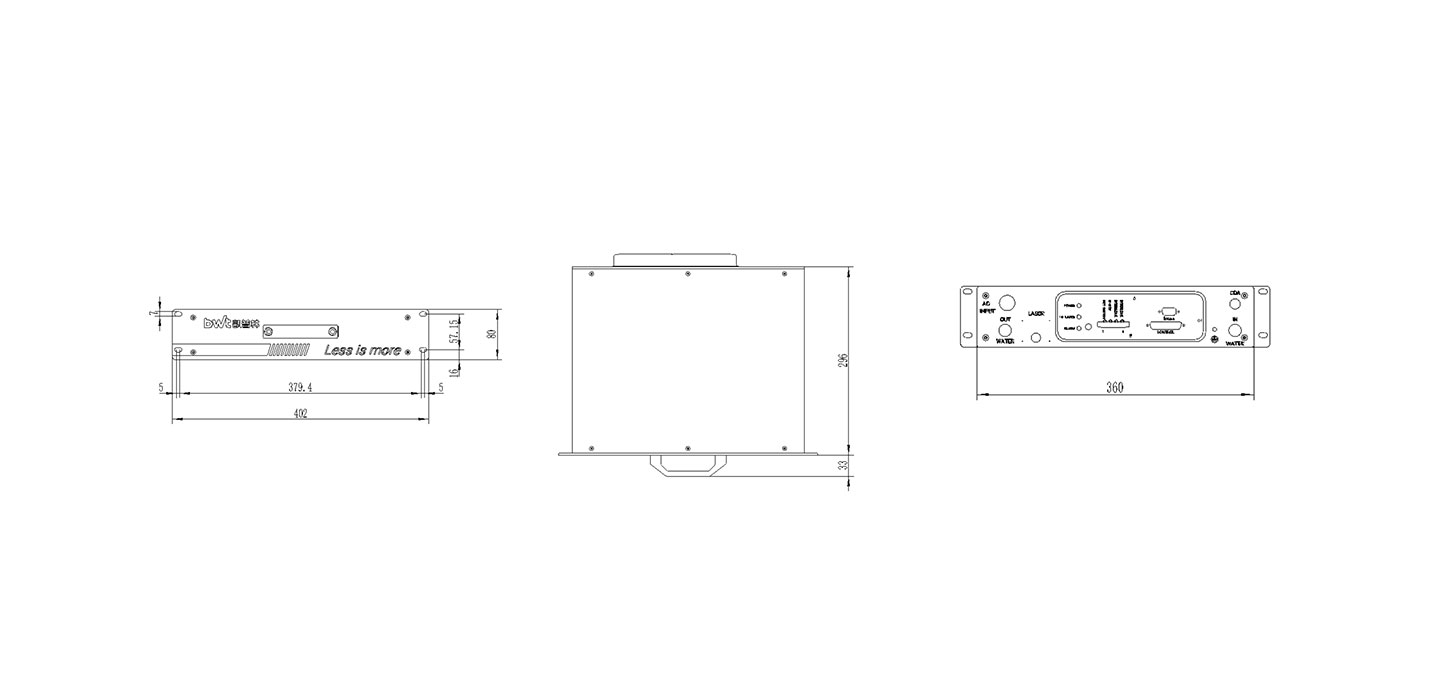

| Outline Feature | 80mm*402mm*296mm |
| Power Consumption | 1.5kW |
| Mini. Water Cooling Capacity | 1.0kW |
| Temperature Settings | 25℃ (Laser Module), 30℃ (QBH) |
| Cooling Tubes Size (External) | φ12mm |
| Cooling Water Flux | >8L/min |
| QBH Cooling Water Flux | 1.5-2.0L/min |
| Working Temp | 10-40℃ |
| Storage Temp | -10~+60℃ |
| Relative Humidity | <70%RH |
| Back-Reflection Requirement | 8°-10° off the vertical direction of the worktable |
