High power laser ITU High Power CW Source Laser DFB EMCORE EMCORE 1782A

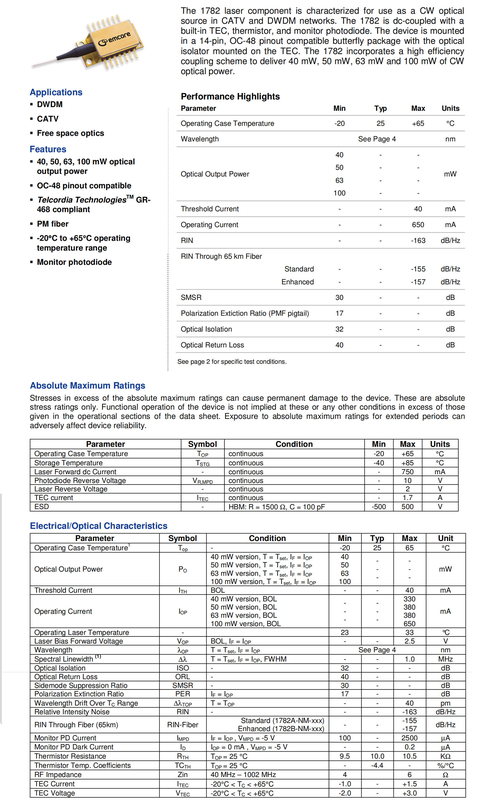

The 1782 laser component is characterized for use as a CW optical source in CATV and DWDM networks. The 1782 is dc-coupled with a built-in TEC, thermistor, and monitor photodiode. The device is mounted in a 14-pin, OC-48 pinout compatible butterfly package with the optical isolator mounted on the TEC. The 1782 incorporates a high efficiency coupling scheme to deliver 40 mW, 50 mW, 63 mW and 100 mW of CW optical power.
Save to Favorites
Overview
Specifications

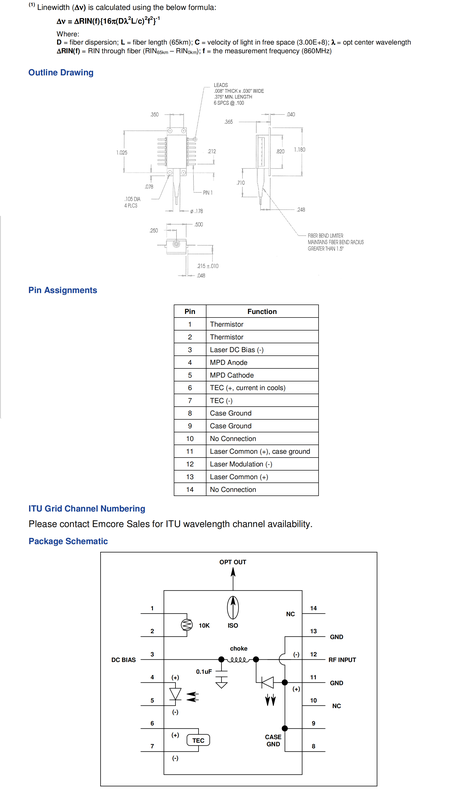

| Parameter | Value |
|---|---|
| 绝对Max — 工作外壳温度 TOP [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | min:-20 °C；max:+65 °C |
| 绝对Max — 存储温度 TSTG [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | min:-40 °C；max:+85 °C |
| 绝对Max — 激光器正向直流电流 [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | max:750 mA |
| 绝对Max — 光电二极管反向电压 VR,MPD [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | max:10 V |
| 绝对Max — 激光器反向电压 [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | max:2 V |
| 绝对Max — TEC电流 ITEC [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续] | max:1.7 A |
| 绝对Max — ESD [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / HBM:R=1500Ω,C=100pF] | min:-500 V；max:500 V |
| 电气/光学 — 工作外壳温度 Top [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | min:-20 °C；typical:25 °C；max:65 °C |
| 电气/光学 — 阈值电流 ITH [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / BOL] | max:40 mA |
| 电气/光学 — 激光器工作温度 [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | min:23 °C；max:33 °C |
| 电气/光学 — 激光器正向偏置电压 VOP [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / BOL,IF=IOP] | max:2.5 V |
| 电气/光学 — 光谱线宽 Δλ [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / T=Tset、IF=IOP、FWHM；未从后续公式计算数值] | max:1.0 MHz |
| 电气/光学 — 光隔离度 ISO [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | min:32 dB |
| 电气/光学 — 光回波损耗 ORL [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | min:40 dB |
| 电气/光学 — 边模抑制比 SMSR [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | min:30 dB |
| 电气/光学 — 偏振消光比 PER [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / IF=IOP] | min:17 dB |
| 电气/光学 — TC范围内的波长漂移 ΔλTOP [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / T=TOP] | max:40 pm |
| 电气/光学 — 相对强度噪声 RIN [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码] | max:-163 dB/Hz |
| 电气/光学 — 通过光纤后的RIN(65km) RIN-Fiber [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 标准型：1782A-NM-xxx（模板，并非完整Model）] | max:-155 dB/Hz |
| 电气/光学 — 通过光纤后的RIN(65km) RIN-Fiber [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 增强型：1782B-NM-xxx（模板，并非对当前Title1782A的保证）] | max:-157 dB/Hz |
| 电气/光学 — 监测PD电流 IMPD [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / IF=IOP,VMPD=-5V] | min:100 µA；max:2500 µA |
| 电气/光学 — 监测PD暗电流 ID [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / IOP=0mA,VMPD=-5V] | max:0.2 µA |
| 电气/光学 — 热敏电阻阻值 RTH [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / TOP=25°C] | min:9.5 kΩ；typical:10.0 kΩ；max:10.5 kΩ |
| 电气/光学 — 热敏电阻温度系数 TCTH [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / TOP=25°C] | typical:-4.4 %/°C |
| 电气/光学 — RF阻抗 Zin [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 40MHz–1002MHz] | min:4 Ω；max:6 Ω |
| 电气/光学 — TEC电流 ITEC [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / -20°C<TC<+65°C] | min:-1.0 A；max:+1.5 A |
| 电气/光学 — TEC电压 VTEC [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / -20°C<TC<+65°C] | min:-2.0 V；max:+3.0 V |
| 电气/光学 — 光输出功率 PO [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 40mW版本，T=Tset,IF=IOP] | min:40 mW |
| 电气/光学 — 工作电流 IOP [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 40mW版本，寿命初期（BOL）] | max:330 mA |
| 电气/光学 — 光输出功率 PO [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 50mW版本，T=Tset,IF=IOP] | min:50 mW |
| 电气/光学 — 工作电流 IOP [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 50mW版本，寿命初期（BOL）] | max:380 mA |
| 电气/光学 — 光输出功率 PO [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 63mW版本，T=Tset,IF=IOP] | min:63 mW |
| 电气/光学 — 工作电流 IOP [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 63mW版本，寿命初期（BOL）] | max:380 mA |
| 电气/光学 — 光输出功率 PO [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 100mW版本，T=Tset,IF=IOP] | min:100 mW |
| 电气/光学 — 工作电流 IOP [实际1782系列规格表；未提供Title中完整1782A变型/功率/通道的对应关系；公共行不分配给编造的完整代码 / 100mW版本，寿命初期（BOL）] | max:650 mA |
