DS3-11444-K405EMSCN 405nm Semiconductor Laser System

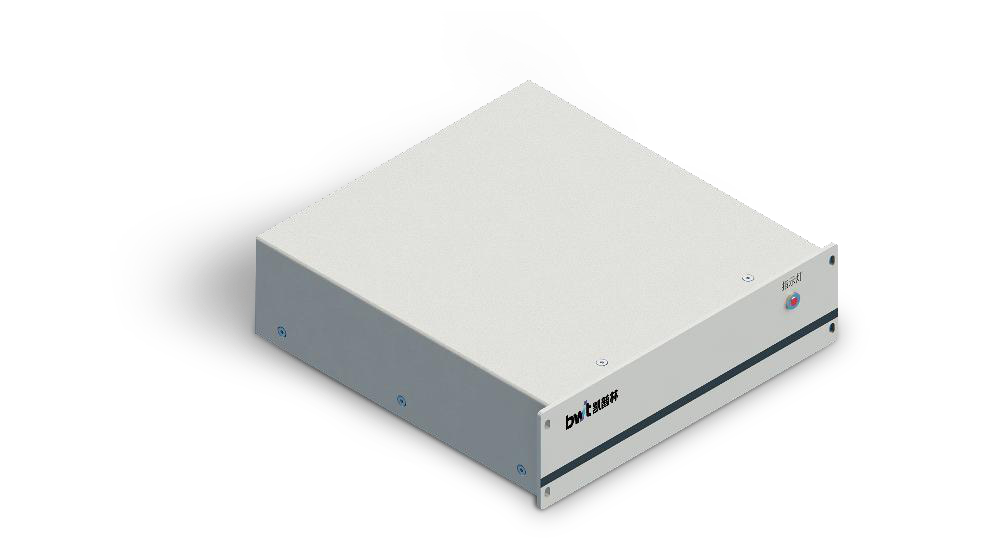

The DS3-11444-K405EMSCN is a 405nm fiber-coupled semiconductor laser system from BWT, delivering 30W of continuous output power through a 400μm core fiber with 0.22NA. It features a pluggable SMA905 fiber connector, constant current drive, RS232 and I/O control interfaces, and built-in over-current and over-temperature protection. With a compact footprint of 223×224×63mm and water-cooling thermal management (300W cooling capacity, 2L/min flow), it provides stable and reliable violet laser output for precision applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Width (FWHM) | ≤6nm |
| Fiber Core Diameter | 400μm |
| Fiber Output Mode | 插拔 |
| Operating Mode | 连续 |
| Control Mode | RS232, I/O |
| Protection Mode | 过流, 过温 |

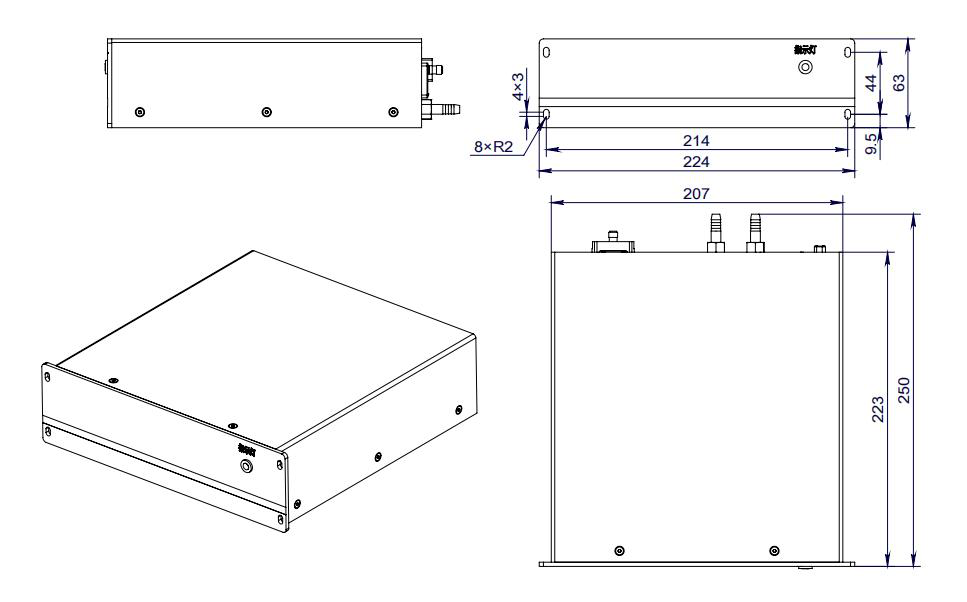

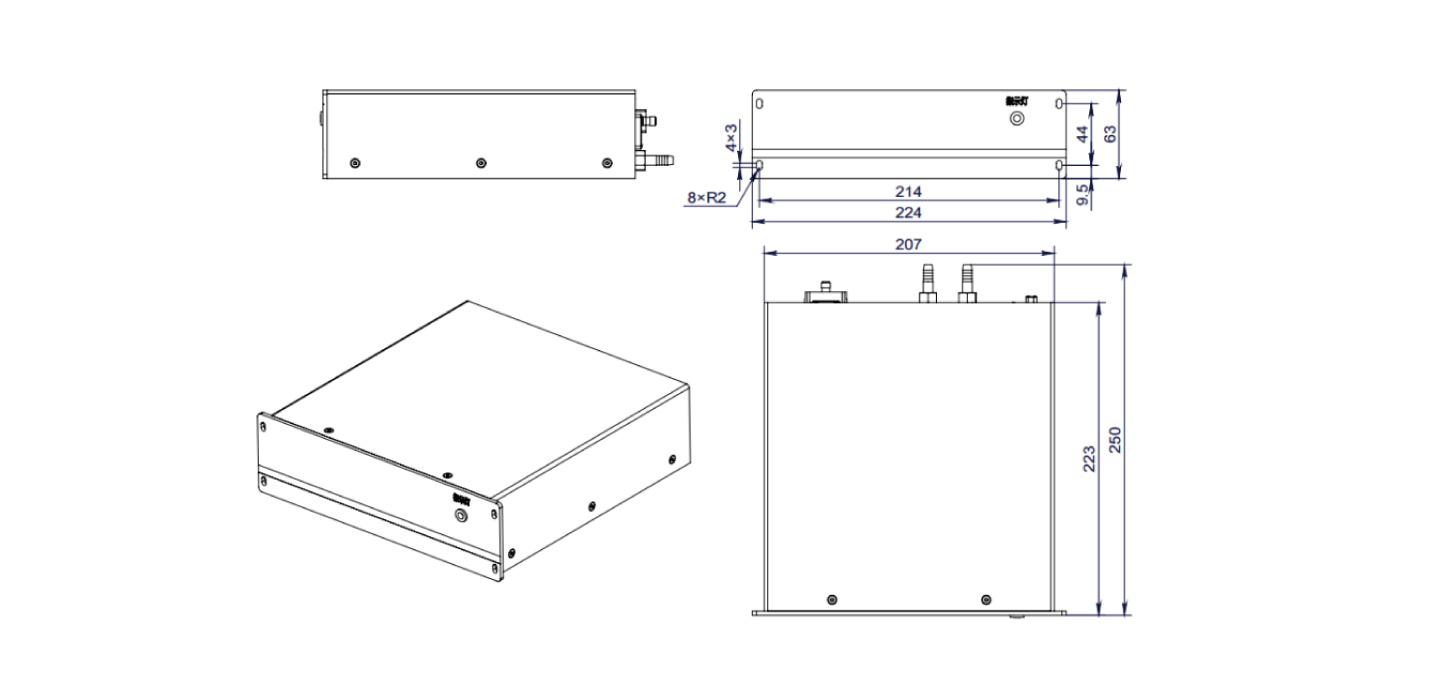

| Dimensions (L×W×H) | 223×224×63mm³ |
| Storage Temperature | 5~50℃ |
| Cooling Requirement | 制冷量300W，水流量2L/min |
