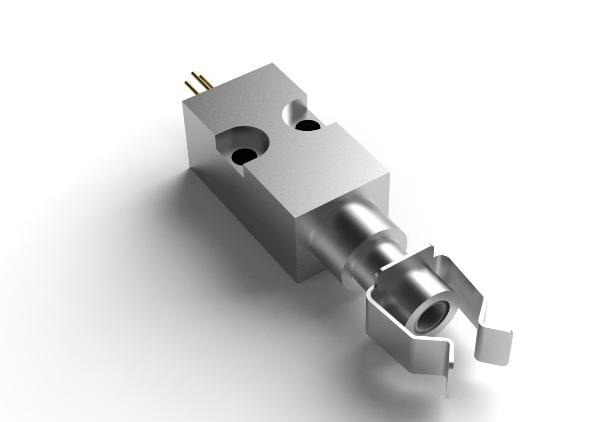

405nm 160mW Fiber Coupled Semiconductor Laser K405E03CN-0.160W
The K405E03CN-0.160W from BWT is a 405nm, 160mW fiber-coupled semiconductor laser. It couples stable violet laser output into a 40μm core, 0.22NA optical fiber terminated with an FC bare ferrule connector. Featuring high electro-optical efficiency (≥20%), low threshold current (30mA typical), a narrow 4nm spectral width (FWHM) and a low wavelength temperature drift of 0.3nm/°C, this compact diode laser module delivers reliable and efficient violet light output for printing, medical and scientific research applications.
Save to Favorites
Overview

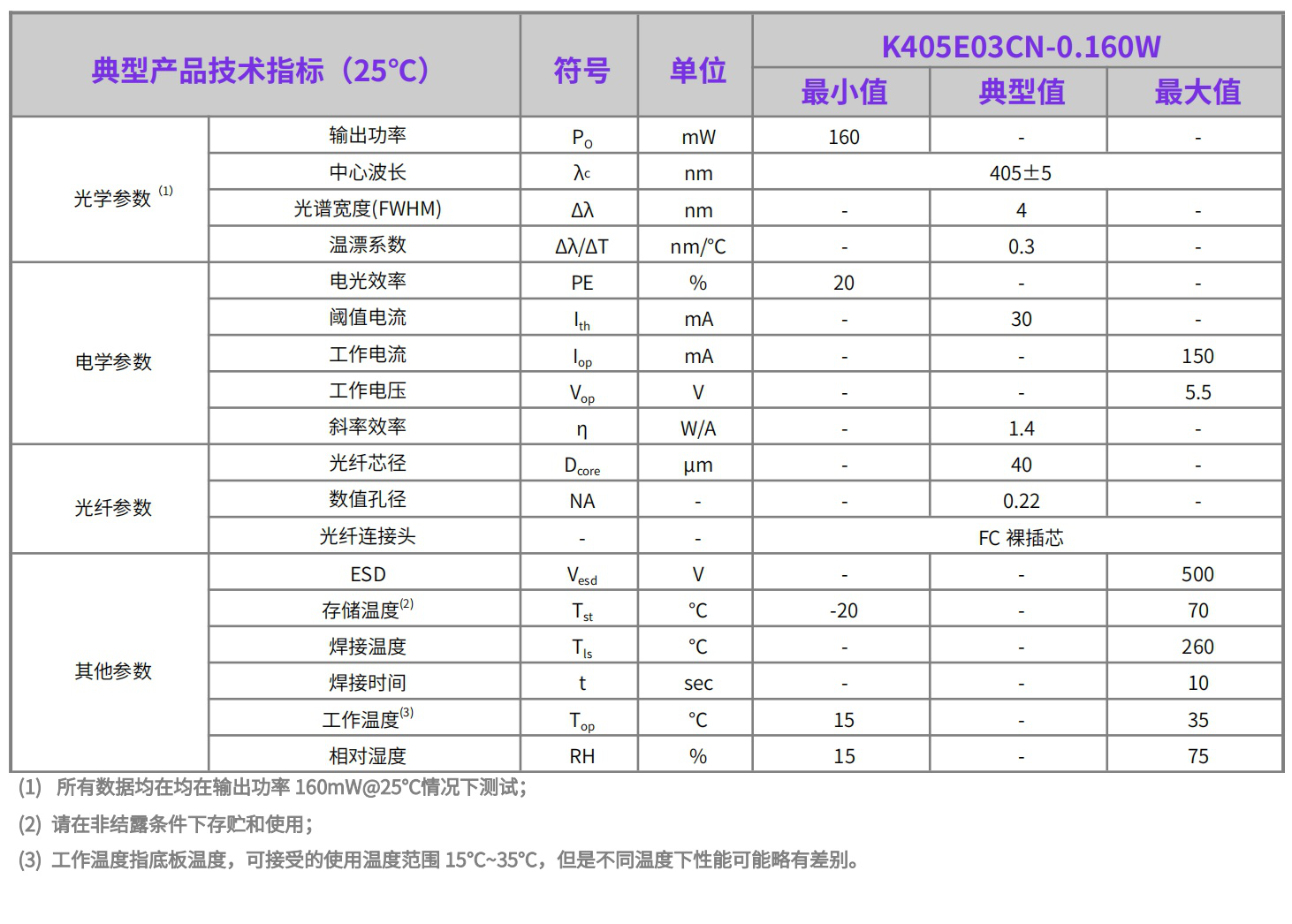

Specifications
| Parameter | Value |
|---|---|
| Output Power (Po) | ≥160mW |
| Center Wavelength (λc) | 405±5nm |
| Spectral Width (FWHM) (Δλ) | 4nm |
| Wavelength Temperature Drift Coefficient (Δλ/ΔT) | 0.3nm/°C |
| Electro-Optical Efficiency (PE) | ≥20% |
| Threshold Current (Ith) | 30mA |
| Operating Current (Iop) | ≤150mA |
| Operating Voltage (Vop) | ≤5.5V |
| Slope Efficiency (η) | 1.4W/A |
| Fiber Core Diameter (Dcore) | 40μm |
| Numerical Aperture (NA) | 0.22 |
| Fiber Connector | FC裸插芯 |
| ESD Withstand Voltage (Vesd) | ≤500V |
| Storage Temperature (Tst) | -20℃~70℃ |
| Soldering Temperature (Tls) | ≤260℃ |
| Soldering Time (t) | ≤10sec |
| Operating Temperature (Top) | 15℃~35℃ |
| Relative Humidity (RH) | 15%~75% |
| Test Conditions | 160mW@25℃ |
| Pin 1 | 激光器(+) |
| Pin 2 | 外壳 |
| Pin 3 | 激光器(-) |

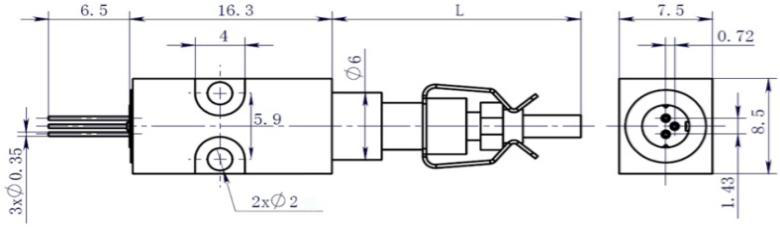

| Pin Dimension | 3×∅0.35mm |
| Mounting Holes | 2×∅2mm |
