3000W High Power Diode Laser BDL-CW3000
The BWT BDL-CW3000 is a 3000W high power fiber-coupled diode laser with wavelengths of 915nm/976nm. Compared with traditional lasers, it features higher electro-optical conversion efficiency, lower power consumption, a compact structure and easy operation. Thanks to its flexible fiber laser output via a QBH connector, it can be conveniently integrated into various system equipment. It supports both continuous and modulated operation modes with a maximum modulation frequency of 5kHz, power adjustment from 10% to 100%, and power stability of less than ±1.5% (2h). The unit adopts a compact 2U rack-mount design (80mm×482mm×521mm, <45kg) with RS232/AD control interface and water-cooling, making it an ideal laser source for industrial processing and scientific research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 3000W |
| Wavelength | 915nm/976nm |
| Output Fiber Core Diameter | 600μm |
| Cable Length | 10m or Customized |
| Beam Delivery | QBH |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Adjustment Scope | 10%-100% |
| Modulation Frequency | 5kHz |

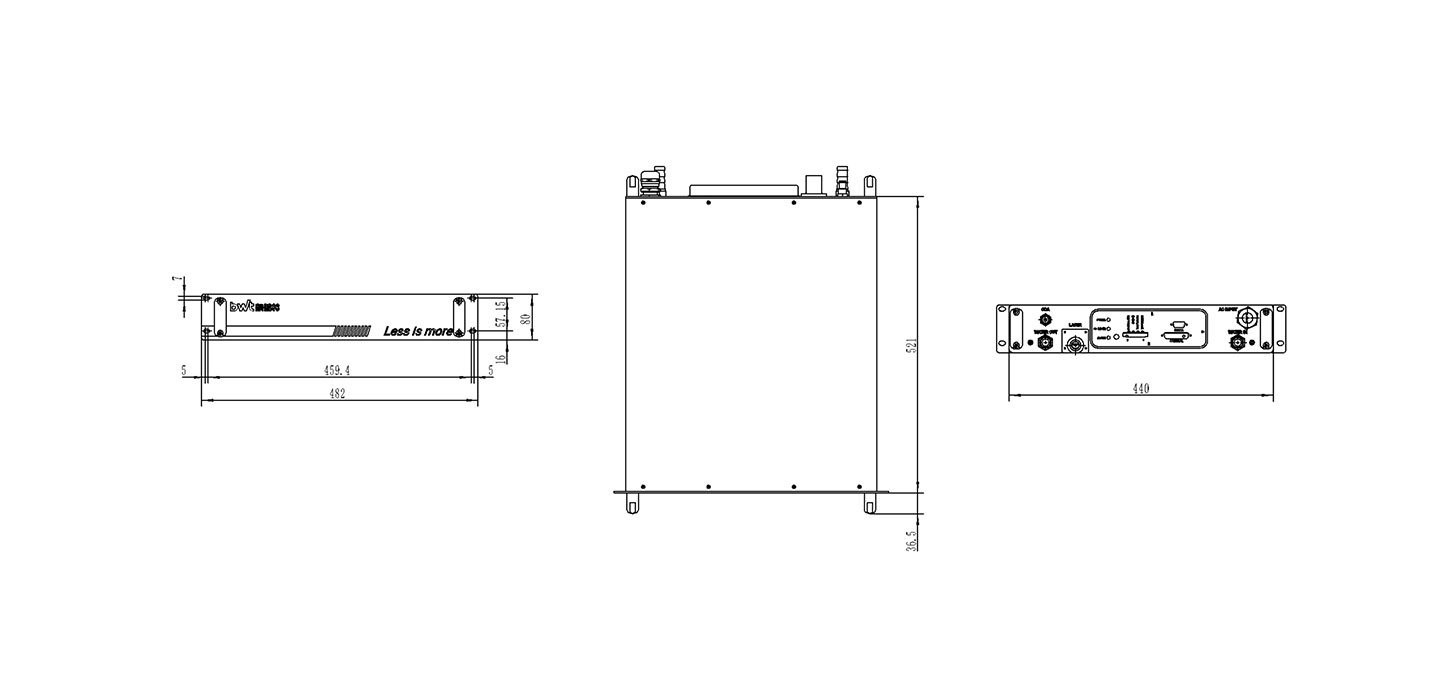

| Outline Feature | 80mm*482mm*521mm |
| Power Consumption | 9kW |
| Mini. Water Cooling Capacity | 7kW |
| Temperature Settings | 25℃ (Laser Module), 30℃ (QBH) |
| Cooling Tubes Size (Inner) | 19mm |
| Cooling Water Flux | >25L/min |
| QBH Cooling Water Flux | 1.5-2.0L/min |
| Storage Temperature | -10~+60℃ |
| Relative Humidity | <70%RH |
