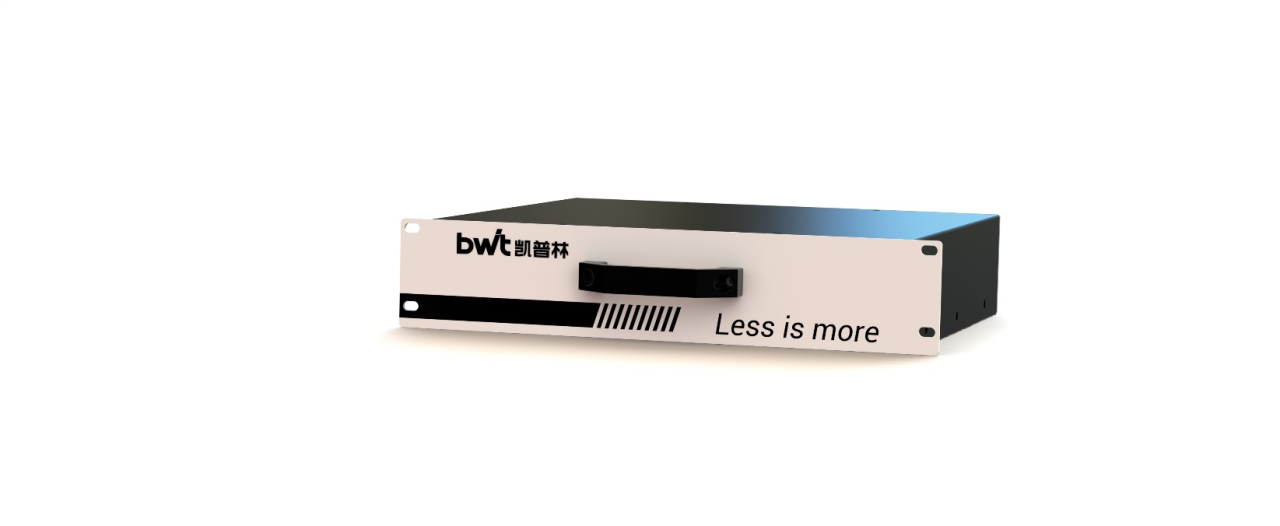

BDL-CW1500 1500W High Power Semiconductor Laser
BWT's 1500W high-power semiconductor laser (Model: BDL-CW1500) delivers higher electro-optical conversion efficiency and lower power consumption than traditional lasers, featuring a compact structure and easy operation. Thanks to its flexible fiber-coupled laser output with a standard QBH connector, it can be conveniently integrated with various system equipment. It is widely used in metal welding, industrial cladding, quenching, material processing, laser research and other fields. BWT has a professional team of laser application engineers dedicated to providing complete laser system solutions. Note: Back-reflected light will affect the performance and lifetime of high-power semiconductor lasers, so the output laser should be applied at an angle of 8°-10° off the vertical direction of the work surface.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 1500W |
| Wavelength | 915nm/976nm |
| Output Fiber Core Diameter | 400μm |
| Cable Length | 10m or Customized |
| Beam Delivery | QBH |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Adjustment Scope | 10%-100% |
| Modulation Frequency | 5kHz |
| Weight | ＜26kg |

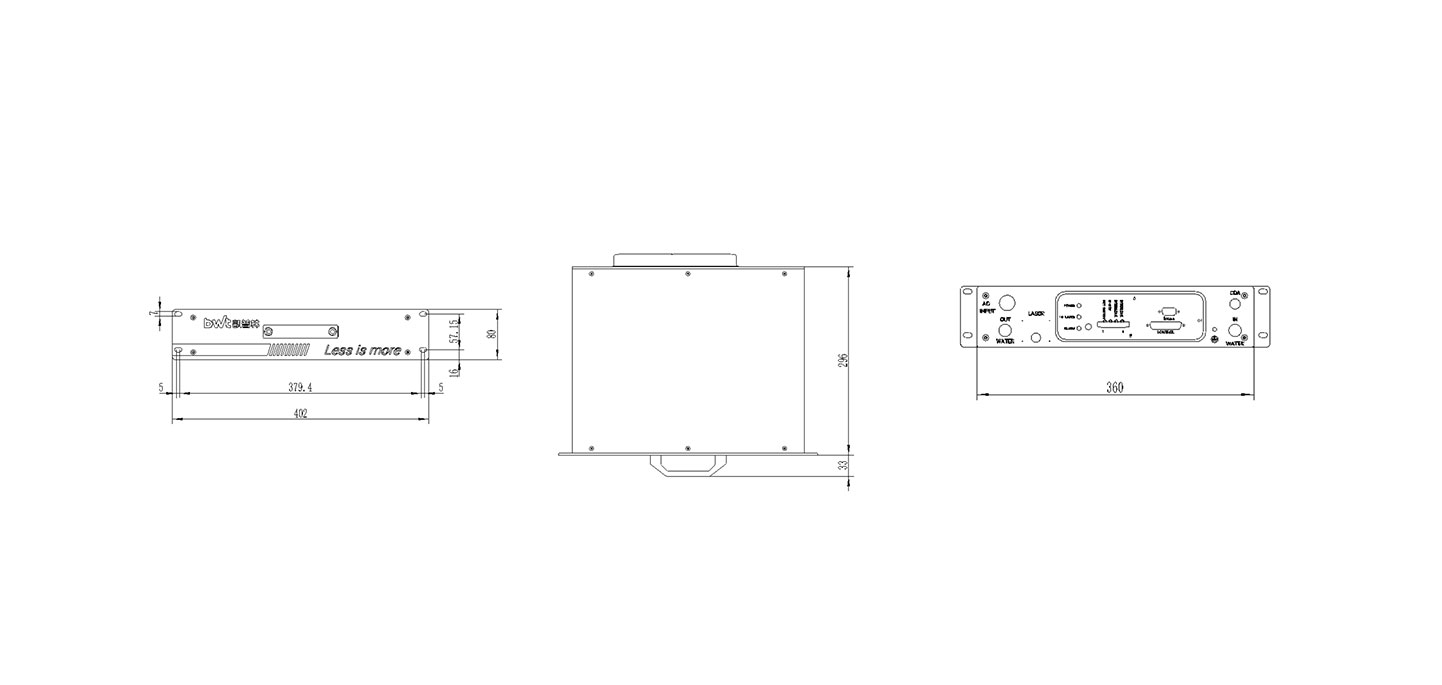

| Outline Feature | 80mm*402mm*296mm |
| Power Consumption | 4.5kW |
| Mini. Water Cooling Capacity | 3.5kW |
| Temperature Settings | 25℃(Laser Module),30℃(QBH) |
| Cooling Tubes Size (External) | φ12mm |
| Cooling Water Flux | >15L/min |
| QBH Cooling Water Flux | 1.5-2.0L/min |
| Working Temp | 10-40℃ |
| Storage Temp | -10~+60℃ |
| Relative Humidity | <70%RH |
