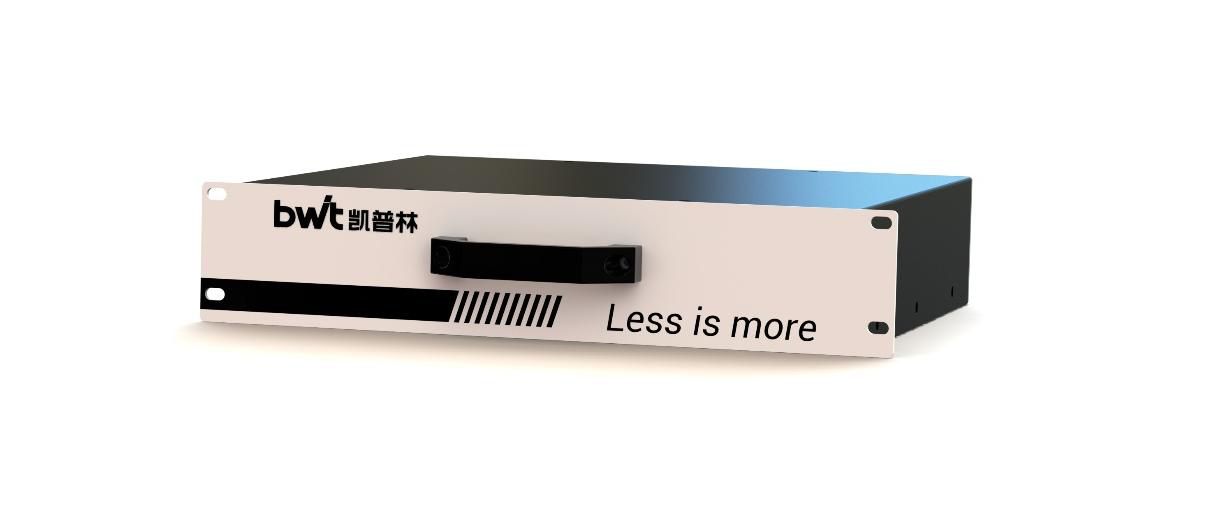

BDL-CW1000 1000W High Power Semiconductor Laser
The BWT BDL-CW1000 1000W high power semiconductor laser offers higher electro-optical conversion efficiency, lower power consumption, a more compact structure and easier operation compared with traditional lasers. Thanks to its flexible fiber-delivered laser output, it can be conveniently integrated into various system equipment. It is widely used in metal welding, industrial cladding, quenching, material processing, laser research and other fields. BWT has a professional team of laser application engineers dedicated to providing customers with complete laser system solutions. Note: Back-reflected light can affect the performance and lifetime of high power semiconductor lasers; the output laser should be used at an angle of 8°-10° deviating from the vertical direction of the worktable.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 1000W |
| Wavelength | 915nm/976nm |
| Output Fiber Core Diameter | 330μm |
| Cable Length | 10m或定制 or Customized |
| Beam Delivery | QBH |
| Guide Beam | 红光/Red |
| Operation Mode | 连续或调制/Continuous or Modulated |
| Polarization | 随机/Random |
| Power Adjustment Scope | 10%-100% |
| Modulation Frequency | 5kHz |

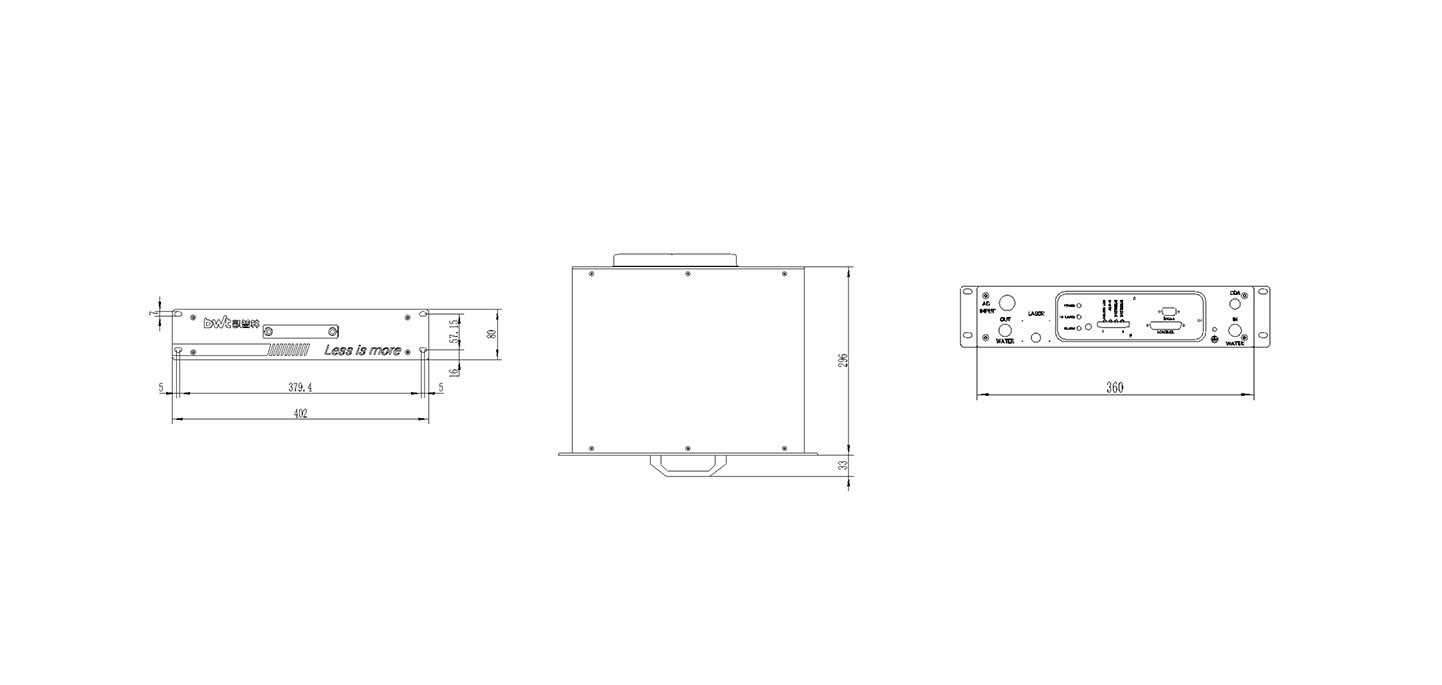

| Outline Feature | 80mm*402mm*296mm |
| Power Consumption | 3kW |
| Mini. Water Cooling Capacity | 2.5kW |
| Temperature Settings | 25℃（激光模块,Laser Module），30℃（QBH） |
| Cooling Tubes Size | φ12mm |
| Cooling Water Flux | >10L/min |
| QBH Cooling Water Flux | 1.5-2.0L/min |
| Working Temp | 10-40℃ |
| Storage Temp | -10℃~+60℃ |
| Relative Humidity | <70%RH |
