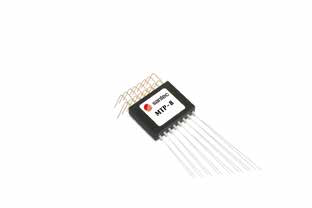

Miniature Tap Photodetector MTP-8/10
The MTP devices are miniaturized tap-integrated photodetectors. They achieve a 60% reduction in footprint and 75% of the volume compared with a standard IPD (Integrated Photo Detector), while maintaining high performance and high reliability. The MTP series is designed for high-density integration in next-generation optical network systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Footprint Reduction vs Standard IPD (%) | 60 |
| Volume vs Standard IPD (%) | 75 |
| Minimum Fiber Bending Radius (mm) | 5 |
| Pin Bending Option | Available |
| Reliability Qualification | Telcordia GR-468 Qualified |
| Environmental compliance | RoHS Compliant |
| Tap Ratio (%, Typ.) S1 | 1 |
| Tap Ratio (%, Typ.) S2 | 2 |
| Tap Ratio (%, Typ.) S3 | 3 |
| Tap Ratio (%, Typ.) S5 | 5 |
| Tap Ratio (%, Typ.) S9 | 10 |
| Insertion Loss (dB, Max., w/o connectors) S1 | 0.5 |
| Insertion Loss (dB, Max., w/o connectors) S2 | 0.5 |
| Insertion Loss (dB, Max., w/o connectors) S3 | 0.5 |
| Insertion Loss (dB, Max., w/o connectors) S5 | 0.6 |
| Insertion Loss (dB, Max., w/o connectors) S9 | 0.8 |
| PD Sensitivity (mA/W, all operating conditions, 5V bias) S1 | 8-20 |
| PD Sensitivity (mA/W, all operating conditions, 5V bias) S2 | 14-24 |
| PD Sensitivity (mA/W, all operating conditions, 5V bias) S3 | 20-40 |
| PD Sensitivity (mA/W, all operating conditions, 5V bias) S5 | 40-70 |
| PD Sensitivity (mA/W, all operating conditions, 5V bias) S9 | 70-120 |
| Input Optical Power (dBm, Max.) S1 | +23 |
| Input Optical Power (dBm, Max.) S2 | +20 |
| Input Optical Power (dBm, Max.) S3 | +18 |
| Input Optical Power (dBm, Max.) S5 | +16 |
| Input Optical Power (dBm, Max.) S9 | +13 |
| Return Loss (dB, Min.) All Types | 45 |
| Dark Current (nA, Max., 70°C, 5V bias) All Types | 5 |
| Reverse Voltage (V, Max.) All Types | 10 |
| Forward Current (mA, Max.) All Types | 5 |
| Wavelength Range (nm) All Types | 1510~1610 |
| Storage Temperature (°C, non-condensation) All Types | -40~+85 |
| Operating Temperature (°C, non-condensation) All Types | 0~+70 |
| Fiber (mm, Min., 0.25mm coated SMF) All Types | 1000+/-100 |
| Dimension (W×D×H, mm) All Types | 21×17×4.5 |
| Pin Pitch from Drawing (mm) | 2.54×7 (17.78) |
| Package Width from Drawing (mm) | 22 |
| Package Length from Drawing (mm) | 17 |
| Package Height from Drawing (mm) | 4.6 |
| Lead Diameter from Drawing (mm) | 2-φ0.3 |
| Fiber Diameter from Drawing (mm) | 2-φ0.25 SMF |
| Extension Length from Drawing (mm) | >12 |
| Electrode Marking from Drawing | Anode/Cathode |
