Fiber-Pigtailed Photo Detector PDA

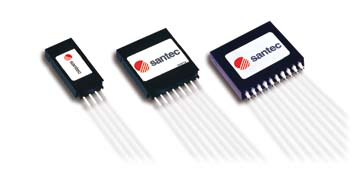

The Santec PDA is an optical power monitoring device consisting of terminating photodetectors integrated with fiber inputs. It is very compact and easily mounted on a PCB for system use, providing a simple and low-cost solution for power monitoring in DWDM and amplifier systems. Qualified to GR-468-CORE for high reliability, the PDA series is available in 1, 4, 8, and 10-channel versions with flexible connector options (FC, SC, MU, LC in SPC or APC polish) and pin assignments (2-pin PD, anode common, cathode common, or separate pins), covering the 1510~1610nm wavelength range for telecom and optical communication applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Return Loss | Min. 45dB |
| PD Sensitivity | Min. 800mA/W (All operating conditions, 5V bias) |
| Dark Current | Max. 5nA (70°C, 5V bias) |
| Reverse Voltage | Max. 10V |
| Forward Current | Max. 5mA |
| Wavelength Range | 1510~1610nm |
| Storage Temperature Range | -40~85°C (RH: 85%(Max.), Non-condensation) |
| Operating Temperature Range | 0~70°C (RH: 85%(Max.), Non-condensation) |
| Input Optical Power | Max. +3dBm |

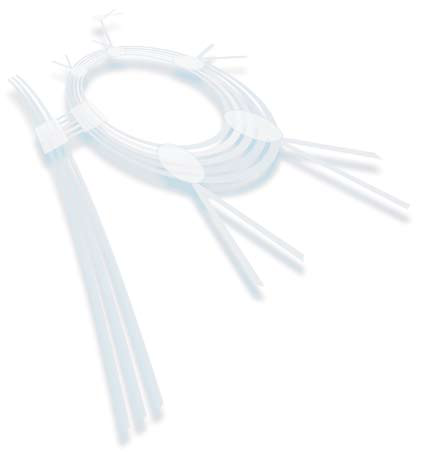

| Fiber Length | Min. 1000mm (0.25mm coating SMF) |
| Minimum Fiber Bending Radius | 5mm |
| Dimension PDA-1 | 3.5(D)x21(L)mm |
| Dimension PDA-4 | 17.5x32x6mm |
| Dimension PDA-8 | 31x32x6mm |
| Dimension PDA-10 | 39x32x6mm |
| Pin Diameter PDA-1 | Cathode φ0.45mm/Anode φ0.3mm |
| Number of Channels | 1ch/4ch/8ch/10ch |
| Connector Type | 00=No Connector/FS=FC-SPC/FA=FC-APC/SS=SC-SPC/SA=SC-APC/MU=MU-SPC/MJ=MUJ-SPC/LC=LC-SPC |
| Pin Assignment | Single Type: 2P=2pinPD; Array Type: AC=Anode Common/CC=Cathode Common/SE=Pin Separate (PDA-4 Only) |
| Ordering Code | PDA-A-B-C |
